Driving modes
6.2 Weighing the truck crane
Axle groups
6 - 10
– Determining the axle loads

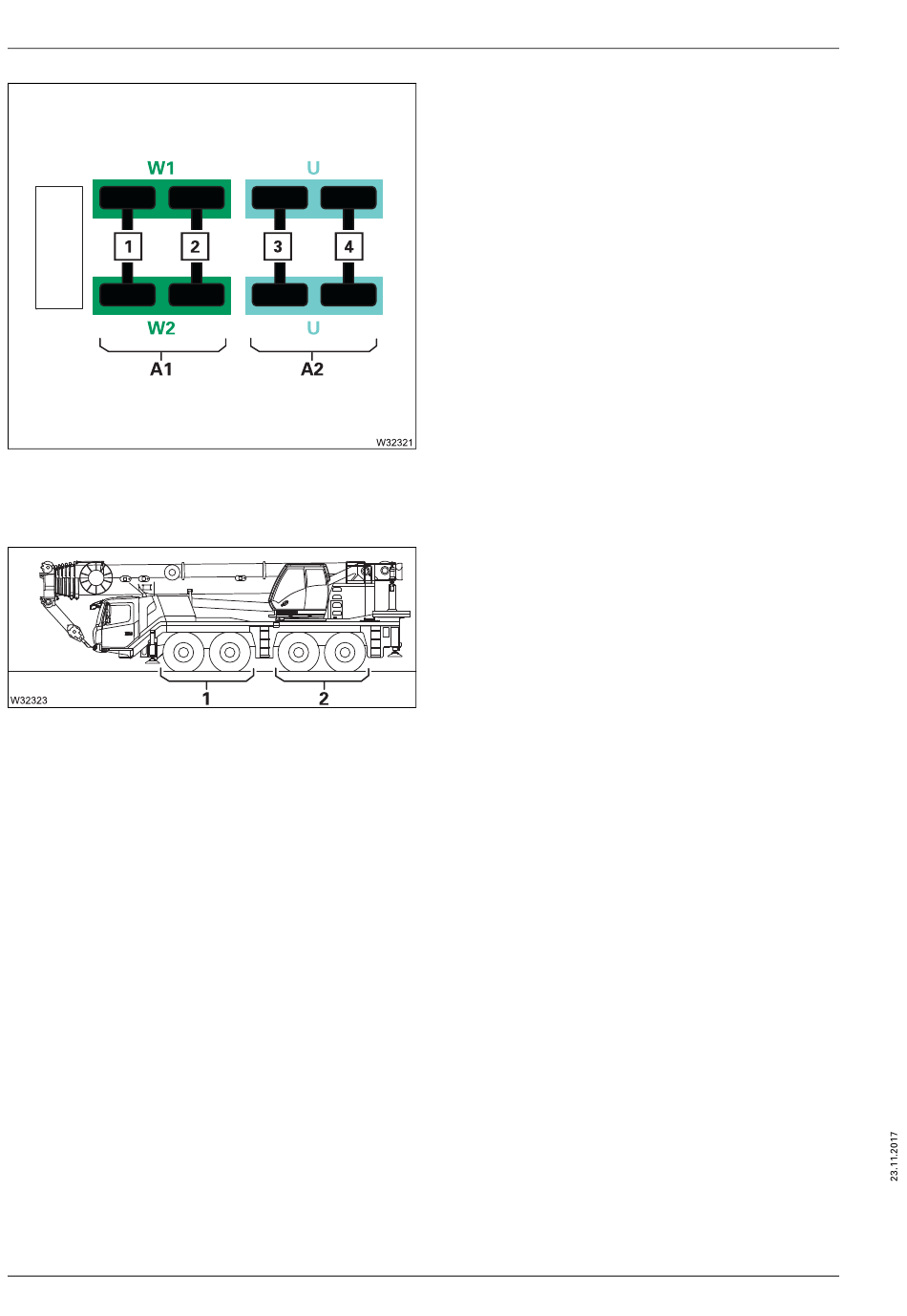

All the axle lines belonging to an axle group
must always be weighed. In addition, all the
wheels must be on the same level. If for
instance only the axle group A1 is to be
weighed, then the axle groups A2 must be
equalised on a support plate U which has the
same height as the scales W1 and W2.
GMK4100L-1
– Axle group 1
– Axle group 2
3 302 690 en
1. + 2. axle line
3. + 4. axle line
