Operating manual
GMK4100L-1

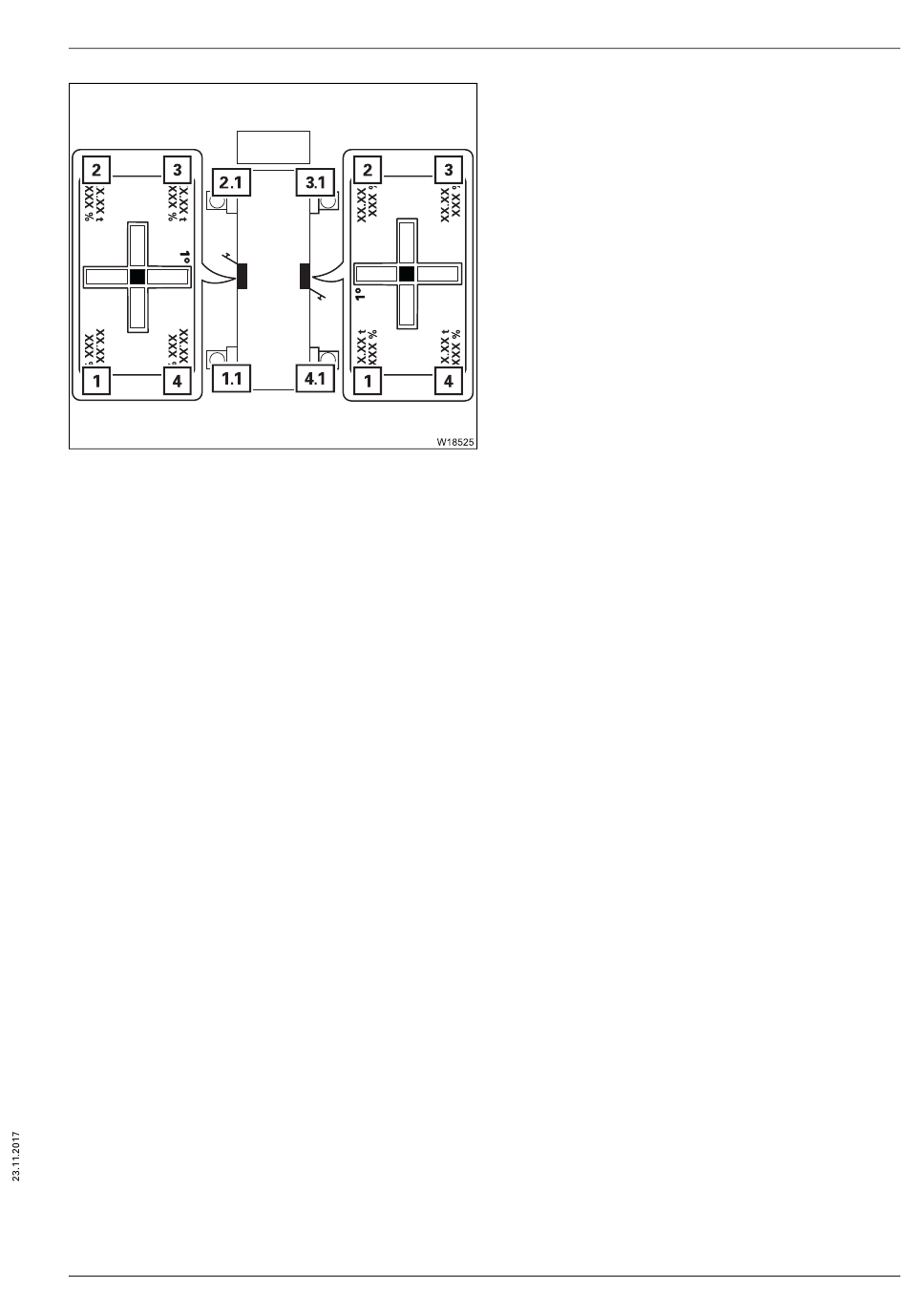

On the outrigger control units
The assignment of the displays to the carrier
corresponds to the top view.
1 Display for the supporting cylinder 1.1
2 Display for the supporting cylinder 2.1
3 Display for the supporting cylinder 3.1
4 Display for the supporting cylinder 4.1
3 302 690 en
Rigging work
12.8 Outrigger operation
12 - 67
