Operating manual
GMK4100L-1

Outriggers control units

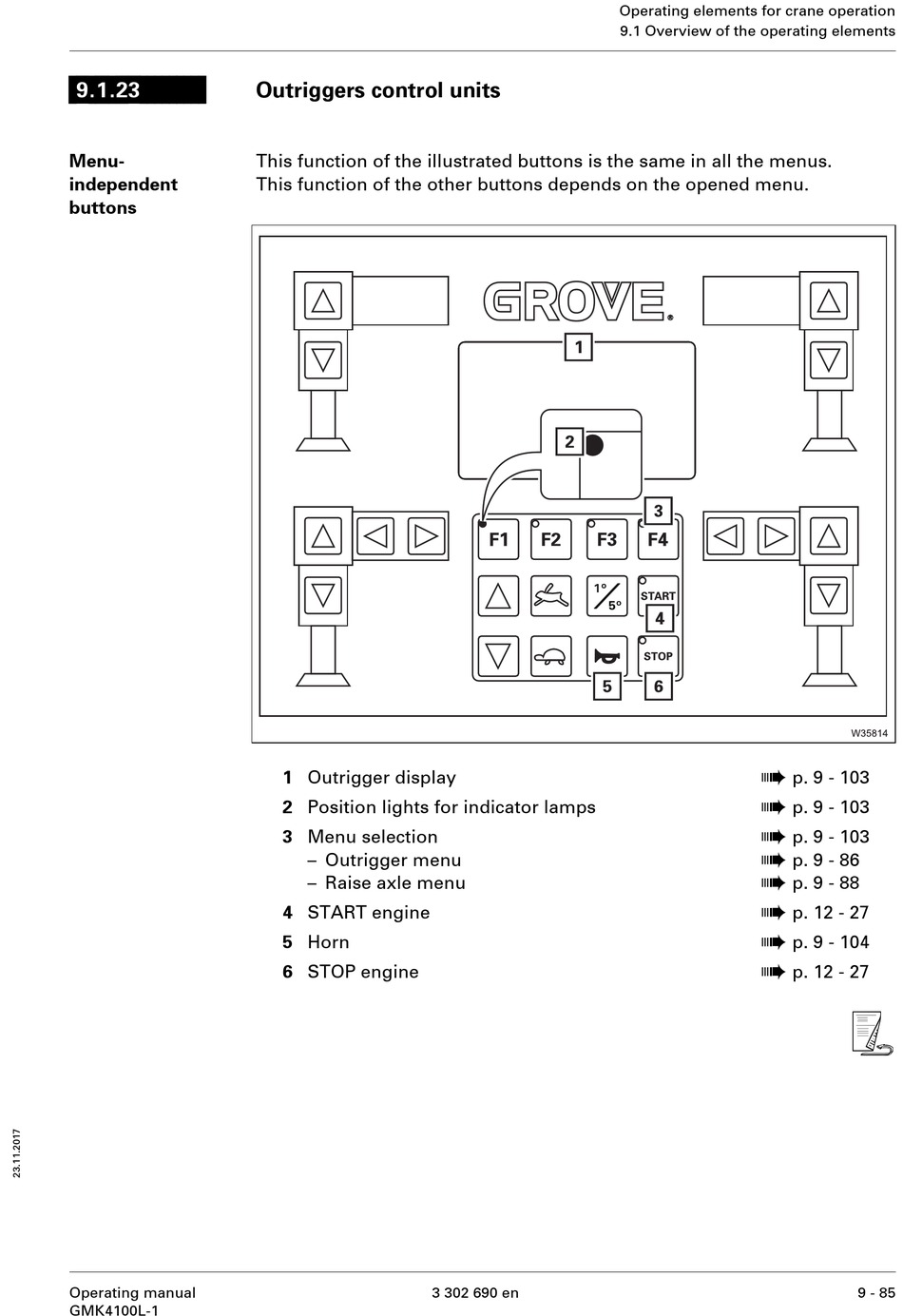

This function of the illustrated buttons is the same in all the menus.
This function of the other buttons depends on the opened menu.
1 Outrigger display
2 Position lights for indicator lamps
3 Menu selection
– Outrigger menu
– Raise axle menu
4 START engine
5 Horn
6 STOP engine
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
à
à
à
p. 9 - 103
p. 9 - 103
p. 9 - 103
p. 9 - 86
p. 9 - 88
p. 12 - 27
p. 9 - 104
p. 12 - 27
s
9 - 85
