Rigging work
12.2 Choice of a suitable positioning site
H
12 - 12

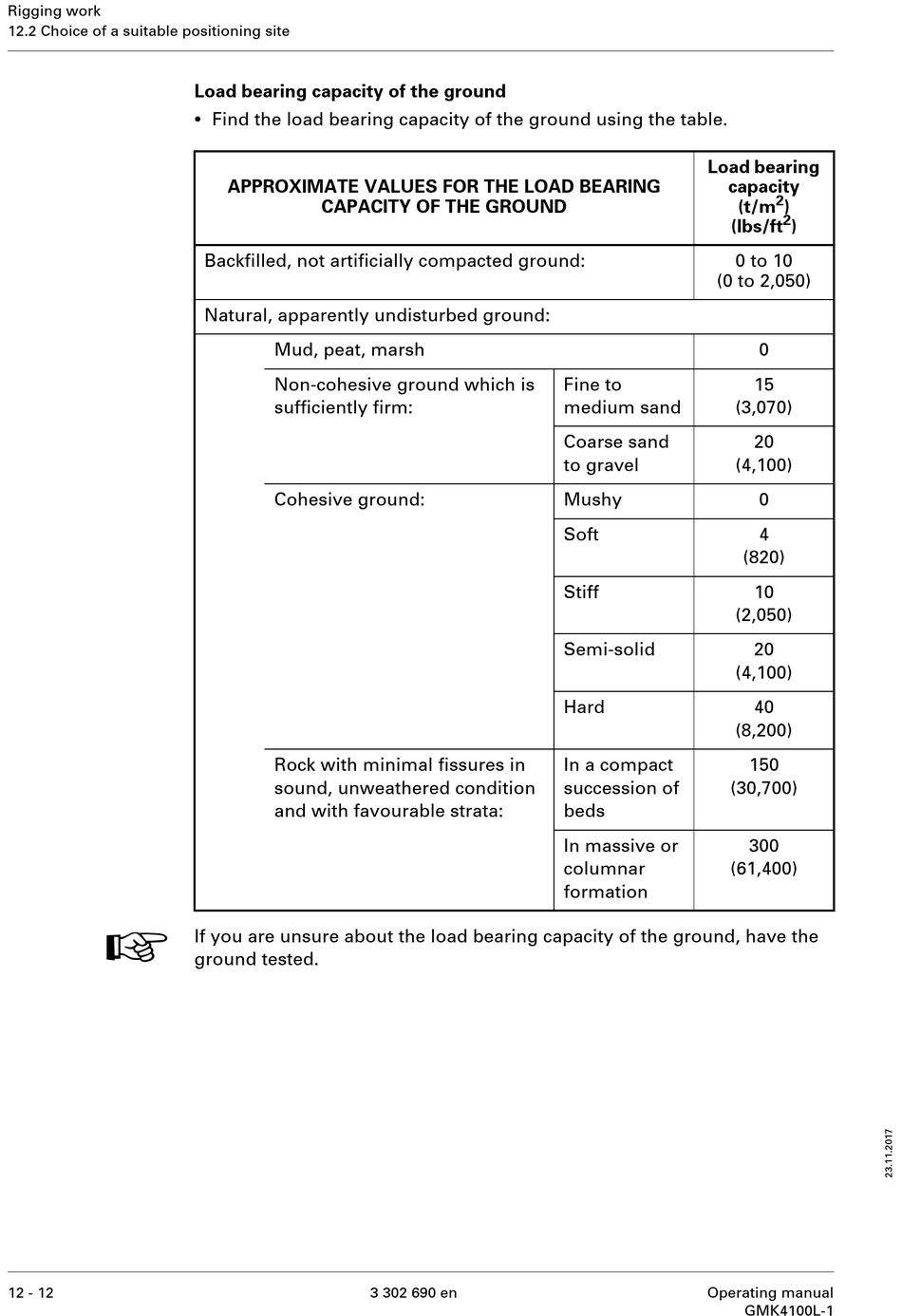

Load bearing capacity of the ground
•
Find the load bearing capacity of the ground using the table.
APPROXIMATE VALUES FOR THE LOAD BEARING
CAPACITY OF THE GROUND
Backfilled, not artificially compacted ground:
Natural, apparently undisturbed ground:
Mud, peat, marsh
Non-cohesive ground which is
sufficiently firm:
Cohesive ground:
Rock with minimal fissures in
sound, unweathered condition
and with favourable strata:
If you are unsure about the load bearing capacity of the ground, have the
ground tested.
