Ccs Control Unit - Manitowoc Grove GMK4100L-1 Operating Manual

3.1.9
Operating manual
GMK4100L-1

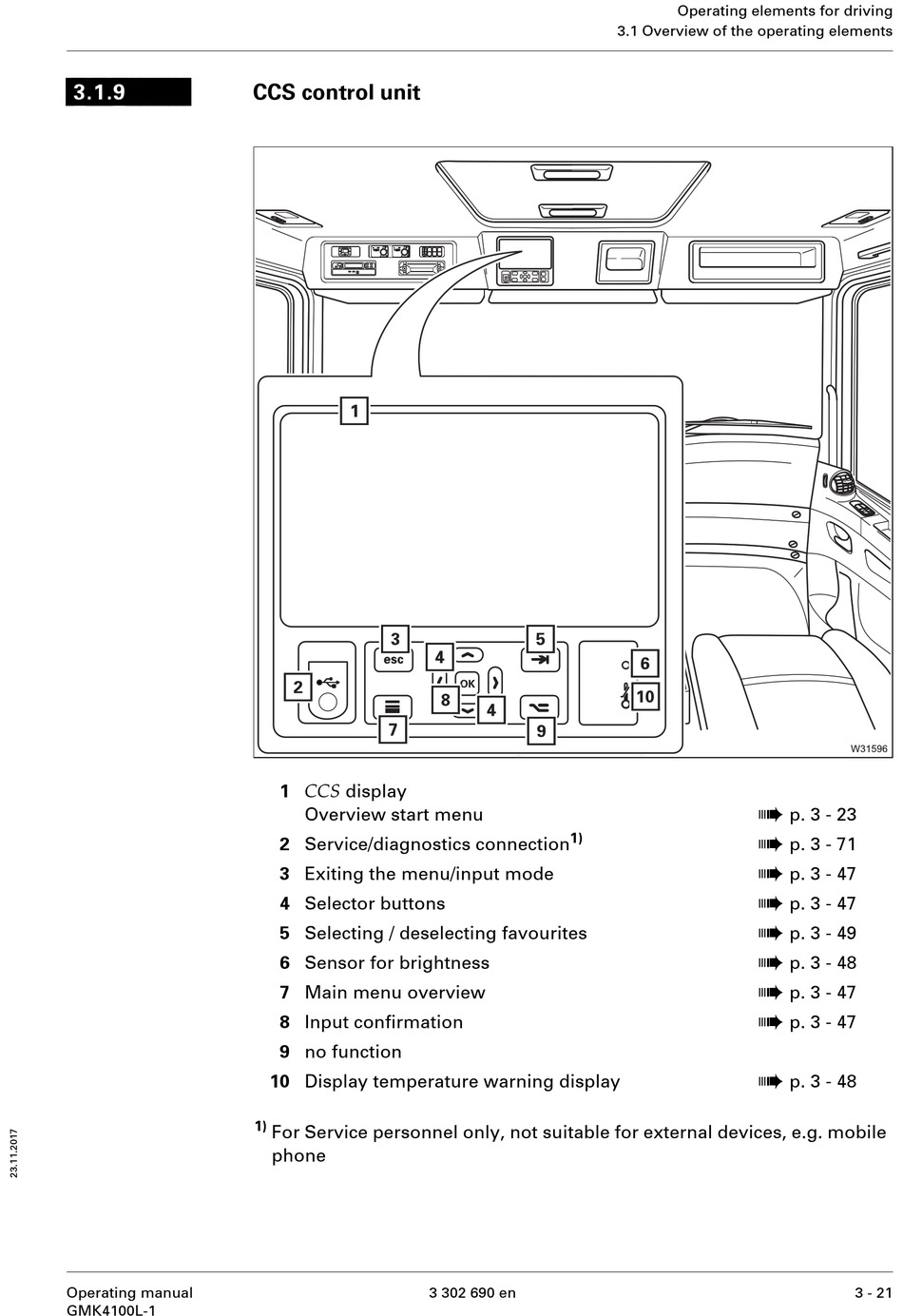

CCS control unit

1 CCS display
Overview start menu
2 Service/diagnostics connection
3 Exiting the menu/input mode
4 Selector buttons
5 Selecting / deselecting favourites
6 Sensor for brightness
7 Main menu overview
8 Input confirmation
9 no function
10 Display temperature warning display
1)
For Service personnel only, not suitable for external devices, e.g. mobile
phone
1)
3 302 690 en
Operating elements for driving
3.1 Overview of the operating elements
à
à
à
à
à
à
à
à
à
p. 3 - 23
p. 3 - 71
p. 3 - 47
p. 3 - 47
p. 3 - 49
p. 3 - 48
p. 3 - 47
p. 3 - 47
p. 3 - 48
3 - 21
