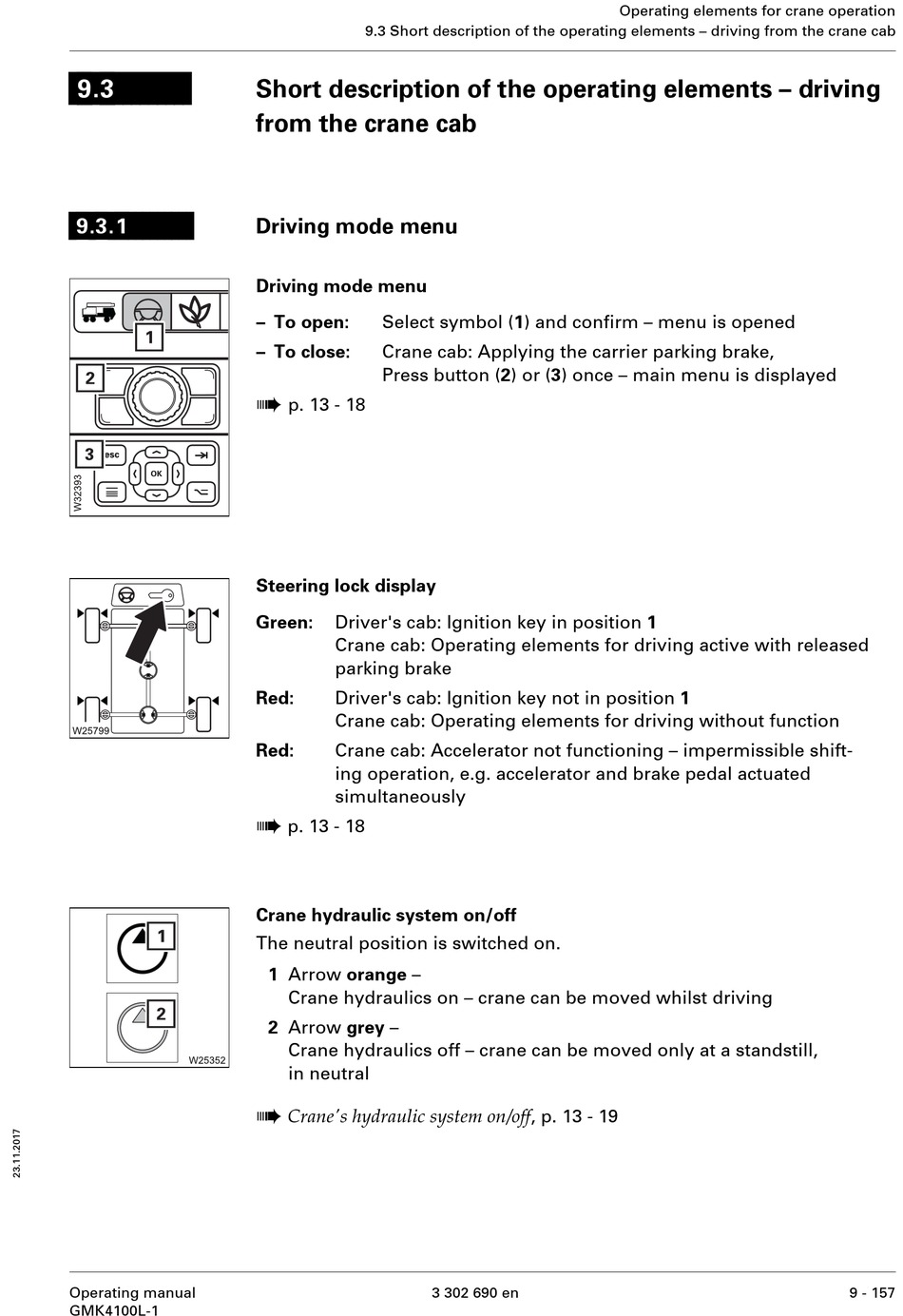

9.3 Short description of the operating elements – driving from the crane cab
Short description of the operating elements – driving
from the crane cab

Driving mode menu

Driving mode menu
– To open: Select symbol (1) and confirm – menu is opened
– To close: Crane cab: Applying the carrier parking brake,
Press button (2) or (3) once – main menu is displayed
à
p. 13 - 18
Steering lock display
Green: Driver's cab: Ignition key in position 1
Crane cab: Operating elements for driving active with released
parking brake
Red: Driver's cab: Ignition key not in position 1
Crane cab: Operating elements for driving without function
Red: Crane cab: Accelerator not functioning – impermissible shift-
ing operation, e.g. accelerator and brake pedal actuated
simultaneously
à
p. 13 - 18
Crane hydraulic system on/off
The neutral position is switched on.
1 Arrow orange –
Crane hydraulics on – crane can be moved whilst driving
2 Arrow grey –
Crane hydraulics off – crane can be moved only at a standstill,
in neutral
à
Crane's hydraulic system on/off , p. 13 - 19
3 302 690 en
