Operating manual
GMK4100L-1

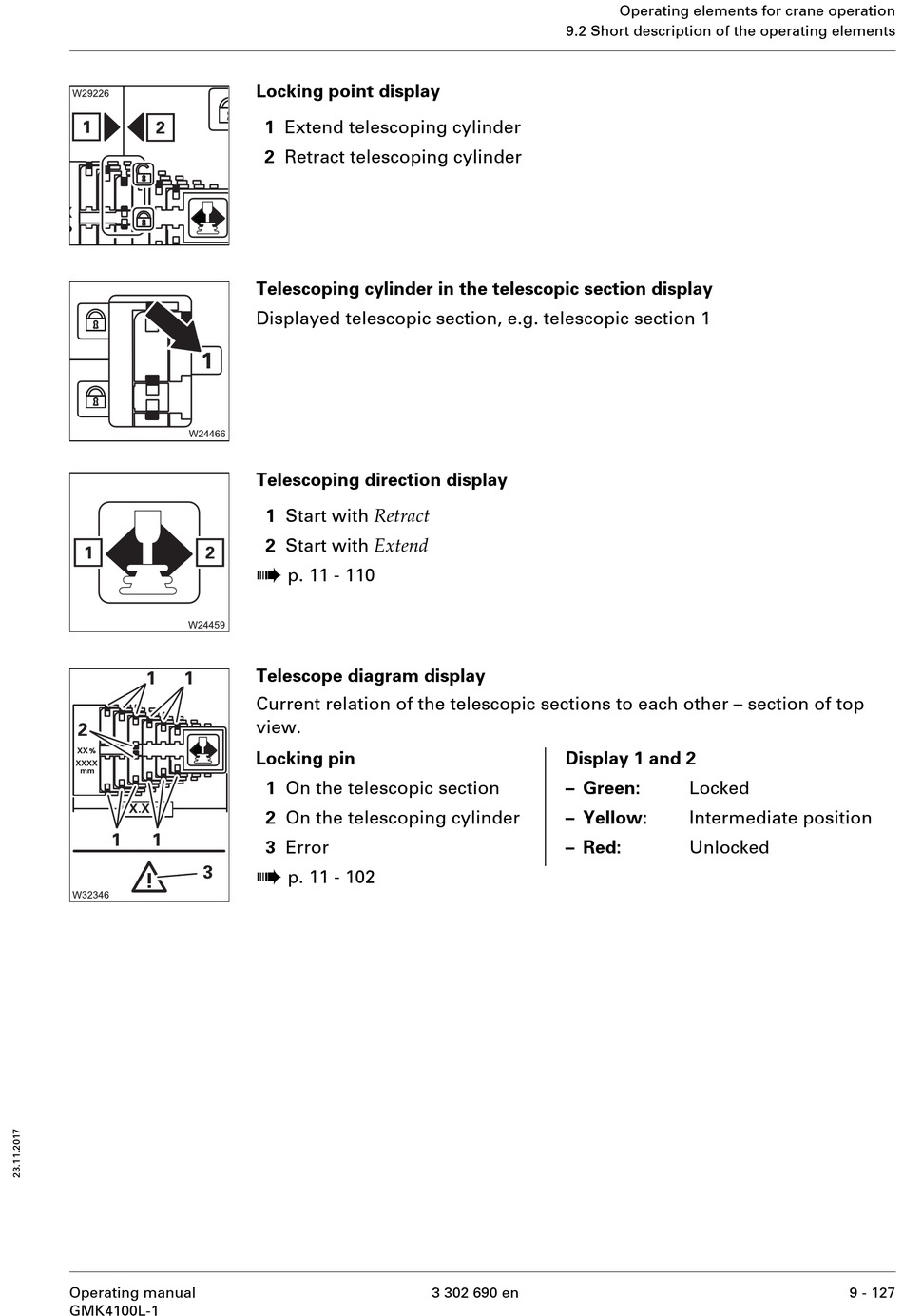

Locking point display
1 Extend telescoping cylinder
2 Retract telescoping cylinder
Telescoping cylinder in the telescopic section display
Displayed telescopic section, e.g. telescopic section 1
Telescoping direction display
1 Start with Retract
2 Start with Extend
à
p. 11 - 110
Telescope diagram display
Current relation of the telescopic sections to each other – section of top
view.
Locking pin
1 On the telescopic section
2 On the telescoping cylinder
3 Error
à
p. 11 - 102
9.2 Short description of the operating elements
Display 1 and 2
– Green:
– Yellow:
– Red:
3 302 690 en
Operating elements for crane operation
Locked
Intermediate position
Unlocked
9 - 127
