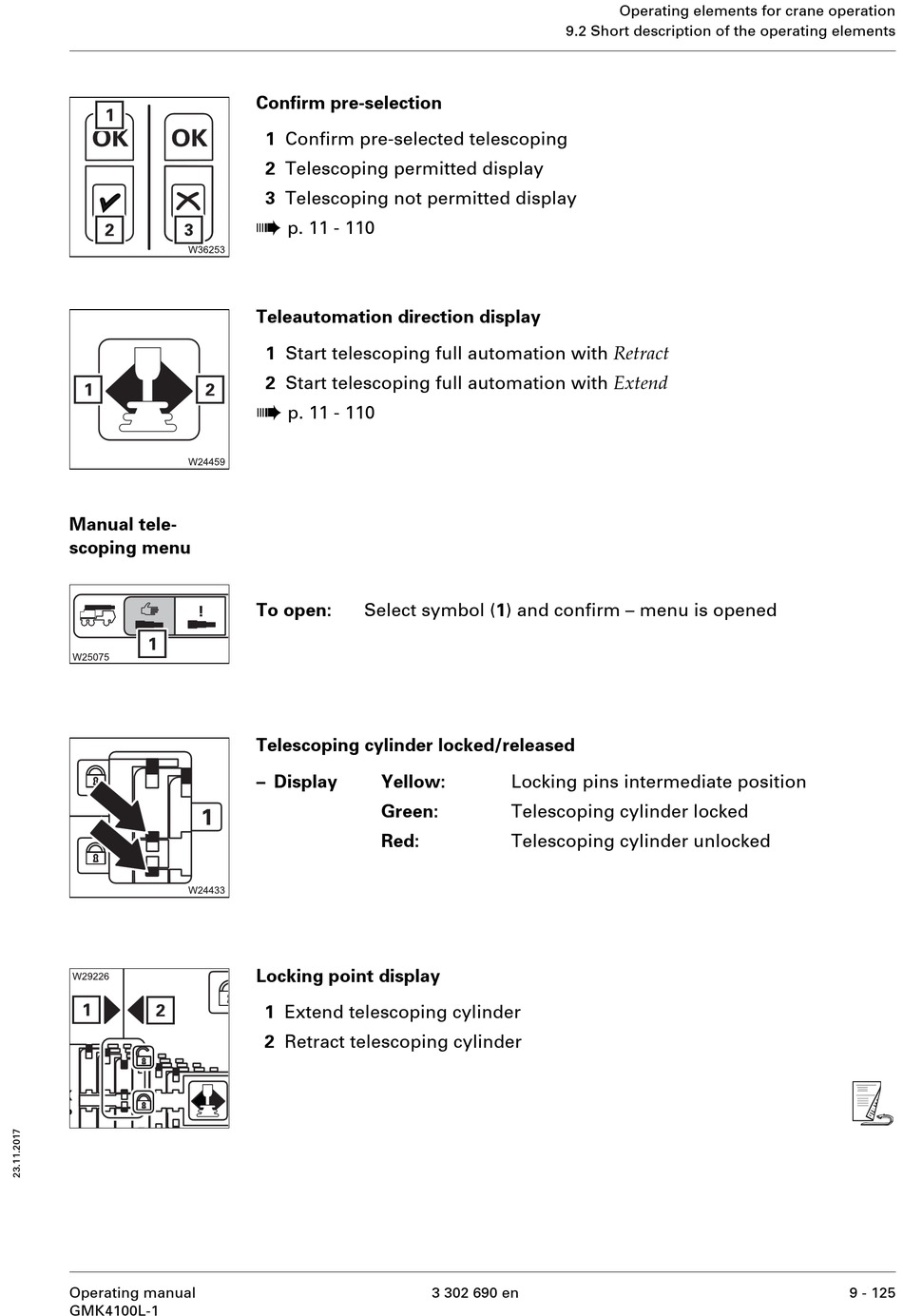

Manitowoc Grove GMK4100L-1 Operating Manual page 535

Manual tele-
scoping menu
Operating manual
GMK4100L-1
Confirm pre-selection
1 Confirm pre-selected telescoping
2 Telescoping permitted display
3 Telescoping not permitted display
à
p. 11 - 110
Teleautomation direction display
1 Start telescoping full automation with Retract
2 Start telescoping full automation with Extend
à
p. 11 - 110
To open: Select symbol (1) and confirm – menu is opened
Telescoping cylinder locked/released
– Display Yellow:
Green:
Red:
Locking point display
1 Extend telescoping cylinder
2 Retract telescoping cylinder
9.2 Short description of the operating elements
Locking pins intermediate position
Telescoping cylinder locked
Telescoping cylinder unlocked
3 302 690 en
Operating elements for crane operation
s
