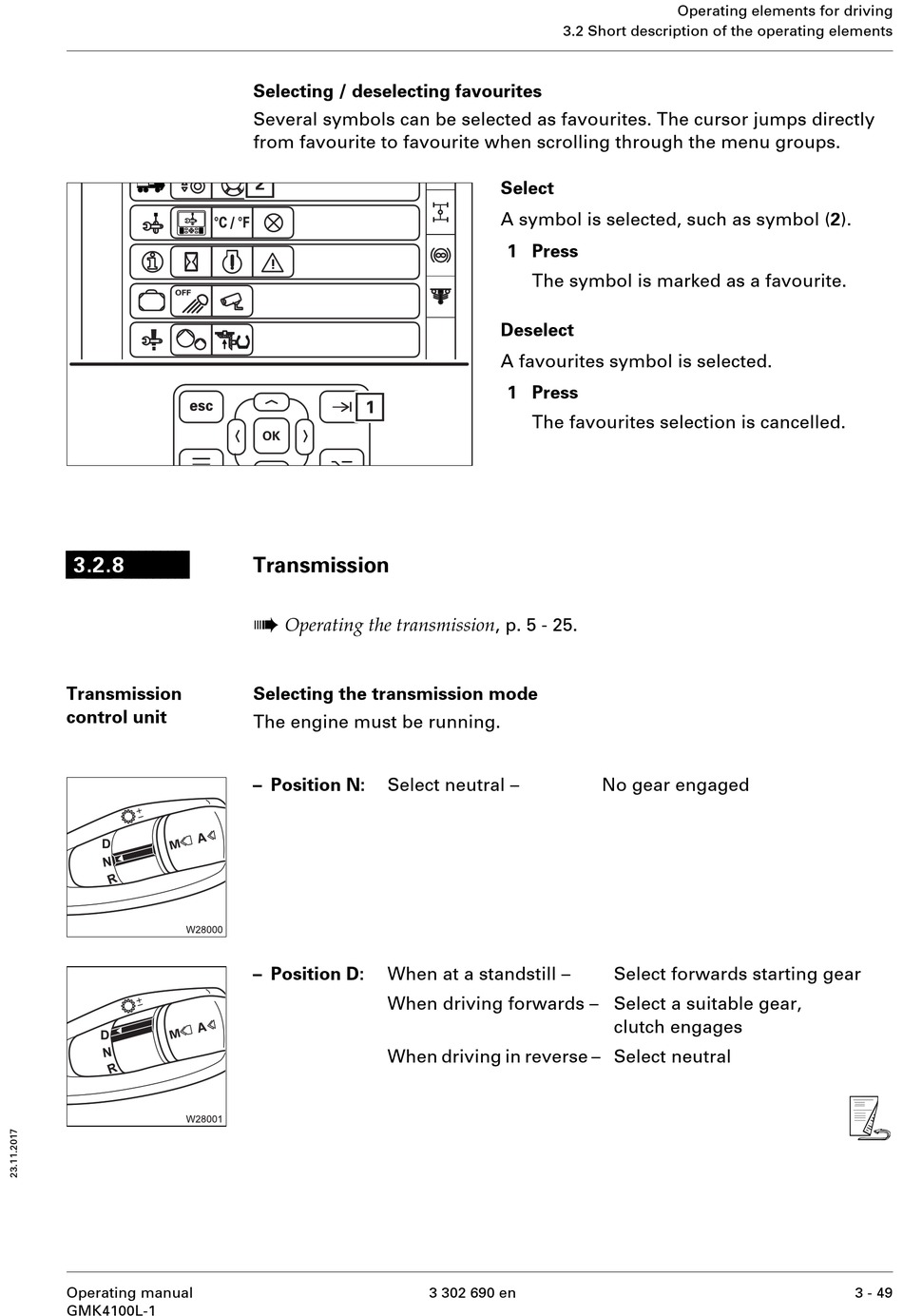

Transmission - Manitowoc Grove GMK4100L-1 Operating Manual

3.2.8

Transmission

control unit
Operating manual
GMK4100L-1
Selecting / deselecting favourites
Several symbols can be selected as favourites. The cursor jumps directly
from favourite to favourite when scrolling through the menu groups.
Transmission
à
Operating the transmission , p. 5 - 25.
Selecting the transmission mode
The engine must be running.
– Position N: Select neutral –
– Position D: When at a standstill –
When driving forwards – Select a suitable gear,
When driving in reverse – Select neutral
3.2 Short description of the operating elements
Select
A symbol is selected, such as symbol (2).
1 Press
The symbol is marked as a favourite.
Deselect
A favourites symbol is selected.
1 Press
The favourites selection is cancelled.
3 302 690 en
Operating elements for driving
No gear engaged
Select forwards starting gear
clutch engages
s
3 - 49
