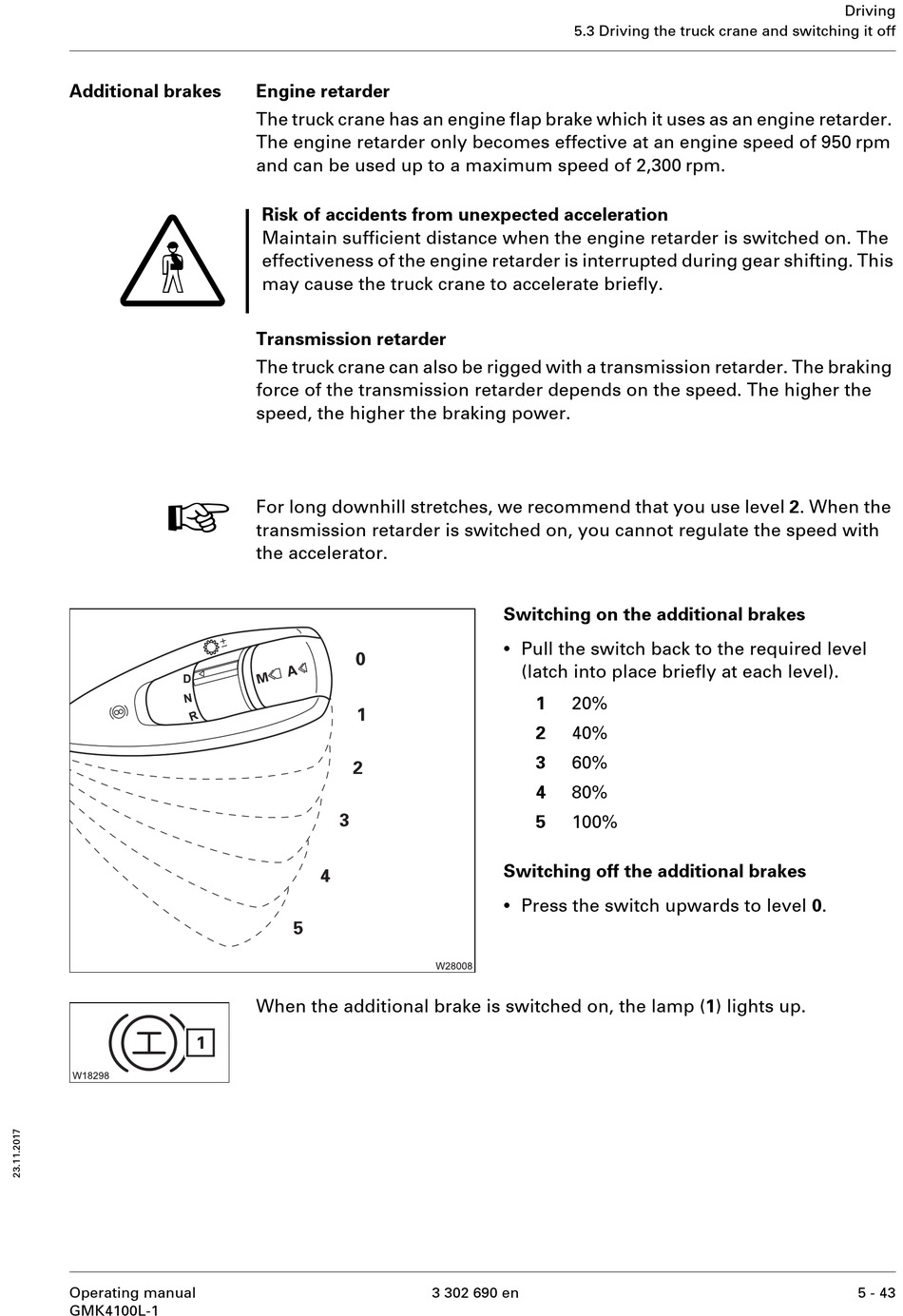

Manitowoc Grove GMK4100L-1 Operating Manual page 257

Additional brakes
G
H
Operating manual
GMK4100L-1
Engine retarder
The truck crane has an engine flap brake which it uses as an engine retarder.
The engine retarder only becomes effective at an engine speed of 950 rpm
and can be used up to a maximum speed of 2,300 rpm.
Risk of accidents from unexpected acceleration
Maintain sufficient distance when the engine retarder is switched on. The
effectiveness of the engine retarder is interrupted during gear shifting. This
may cause the truck crane to accelerate briefly.
Transmission retarder
The truck crane can also be rigged with a transmission retarder. The braking
force of the transmission retarder depends on the speed. The higher the
speed, the higher the braking power.
For long downhill stretches, we recommend that you use level 2. When the
transmission retarder is switched on, you cannot regulate the speed with
the accelerator.
When the additional brake is switched on, the lamp (1) lights up.
5.3 Driving the truck crane and switching it off
Switching on the additional brakes
•
Pull the switch back to the required level
(latch into place briefly at each level).
1 20%
2 40%
3 60%
4 80%
5 100%
Switching off the additional brakes
•
Press the switch upwards to level 0.
3 302 690 en
Driving
5 - 43
