Additional pages GMK4100L-1

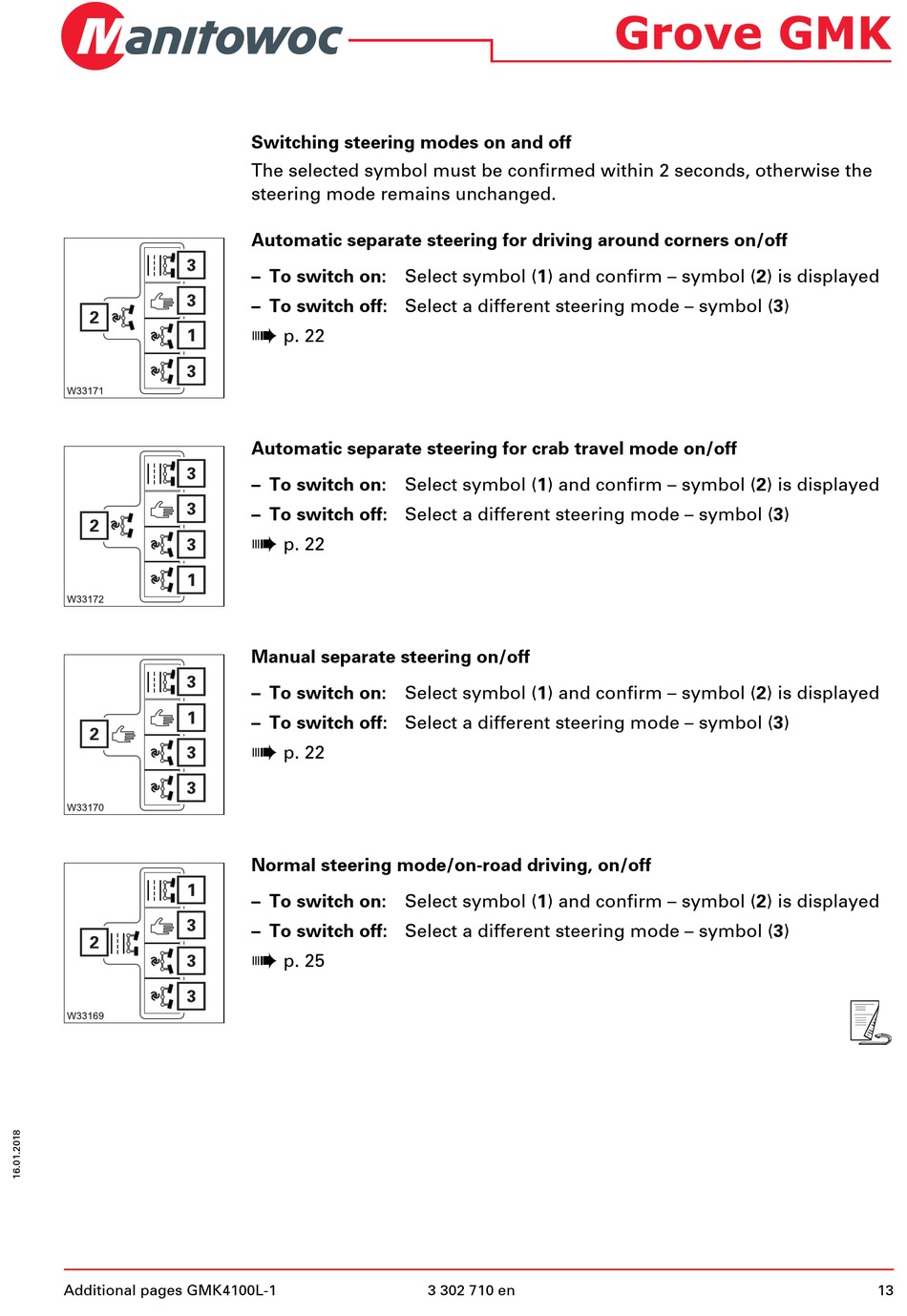

Switching steering modes on and off
The selected symbol must be confirmed within 2 seconds, otherwise the
steering mode remains unchanged.
Automatic separate steering for driving around corners on/off
– To switch on: Select symbol (1) and confirm – symbol (2) is displayed
– To switch off: Select a different steering mode – symbol (3)
à
p. 22
Automatic separate steering for crab travel mode on/off
– To switch on: Select symbol (1) and confirm – symbol (2) is displayed
– To switch off: Select a different steering mode – symbol (3)
à
p. 22
Manual separate steering on/off
– To switch on: Select symbol (1) and confirm – symbol (2) is displayed
– To switch off: Select a different steering mode – symbol (3)
à
p. 22
Normal steering mode/on-road driving, on/off
– To switch on: Select symbol (1) and confirm – symbol (2) is displayed
– To switch off: Select a different steering mode – symbol (3)
à
p. 25
