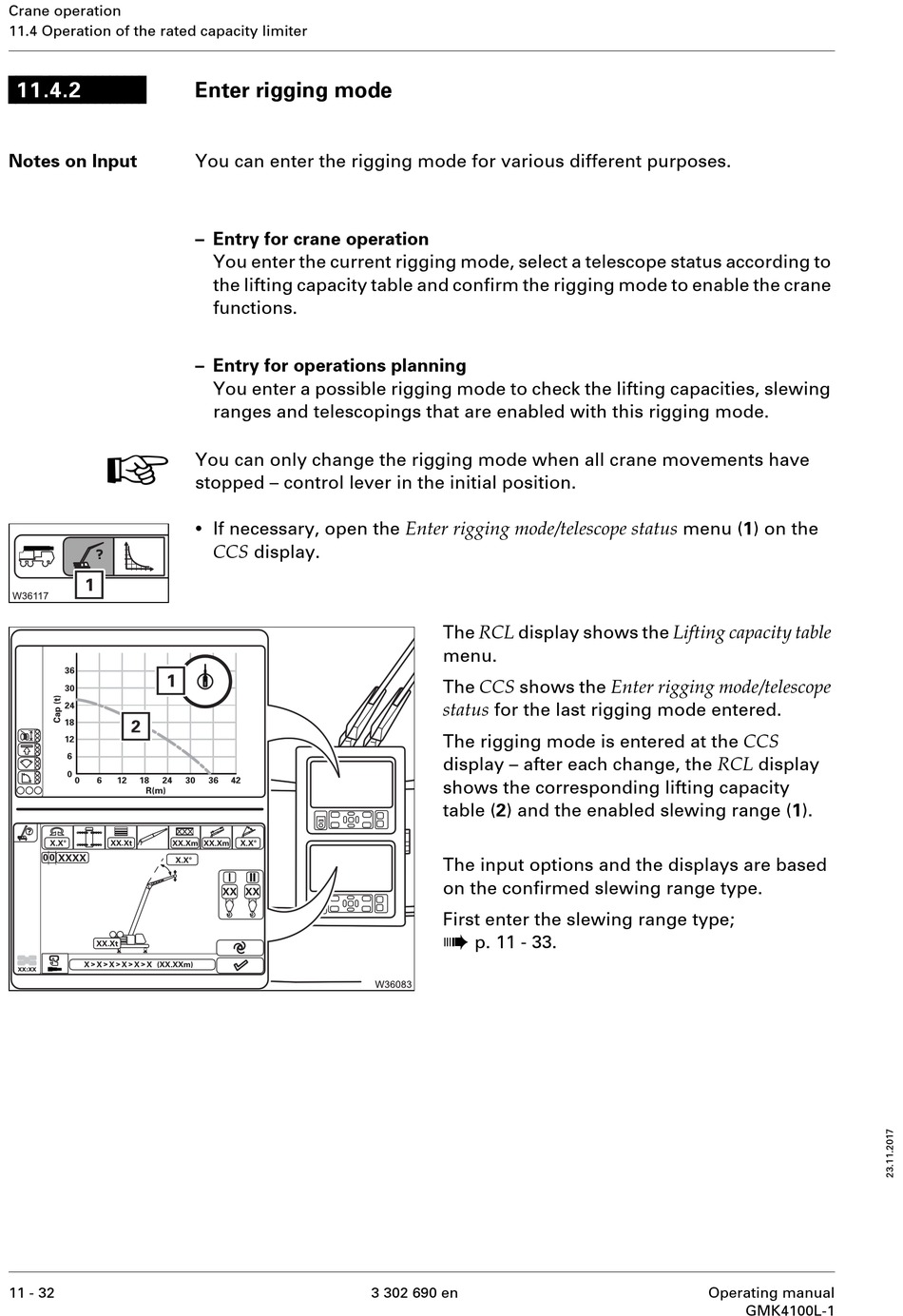

Crane operation
11.4 Operation of the rated capacity limiter
11.4.2
Notes on Input
H
11 - 32
Enter rigging mode
You can enter the rigging mode for various different purposes.
– Entry for crane operation
You enter the current rigging mode, select a telescope status according to
the lifting capacity table and confirm the rigging mode to enable the crane
functions.
– Entry for operations planning
You enter a possible rigging mode to check the lifting capacities, slewing
ranges and telescopings that are enabled with this rigging mode.
You can only change the rigging mode when all crane movements have
stopped – control lever in the initial position.
•
If necessary, open the Enter rigging mode/telescope status menu (1) on the
CCS display.
The RCL display shows the Lifting capacity table
menu.
The CCS shows the Enter rigging mode/telescope
status for the last rigging mode entered.
The rigging mode is entered at the CCS
display – after each change, the RCL display
shows the corresponding lifting capacity
table (2) and the enabled slewing range (1).
The input options and the displays are based
on the confirmed slewing range type.
First enter the slewing range type;
à
p. 11 - 33.
