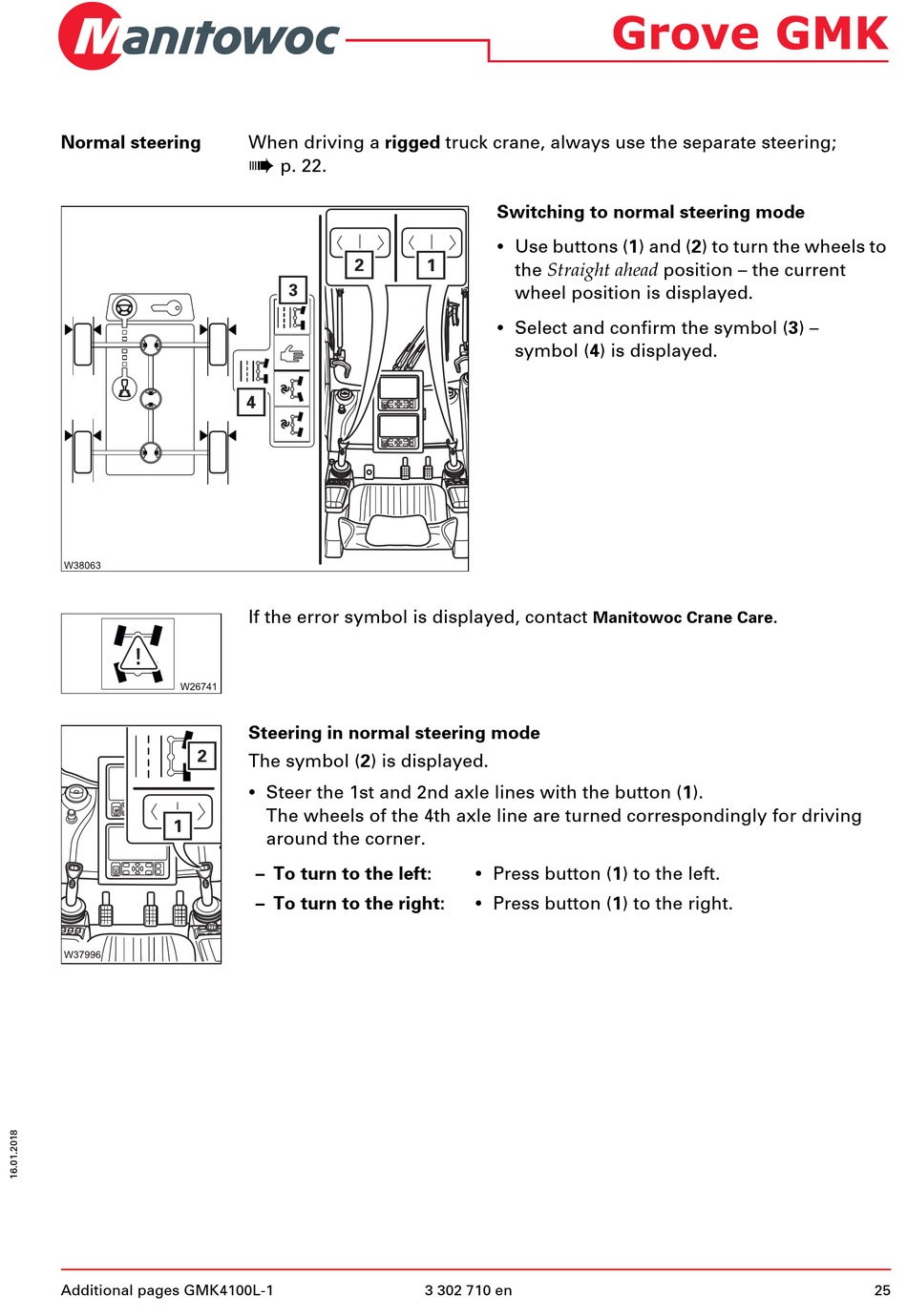

Normal steering
Additional pages GMK4100L-1
When driving a rigged truck crane, always use the separate steering;
à
p. 22.
If the error symbol is displayed, contact
Steering in normal steering mode
The symbol (2) is displayed.
•
Steer the 1st and 2nd axle lines with the button (1).
The wheels of the 4th axle line are turned correspondingly for driving
around the corner.
– To turn to the left:
– To turn to the right:
Switching to normal steering mode
•
Use buttons (1) and (2) to turn the wheels to
the Straight ahead position – the current
wheel position is displayed.
•
Select and confirm the symbol (3) –
symbol (4) is displayed.
Manitowoc Crane Care
•
Press button (1) to the left.
•
Press button (1) to the right.
