Crane operation
11.4 Operation of the rated capacity limiter
Entering the
RCL code
11.4.3
11 - 40

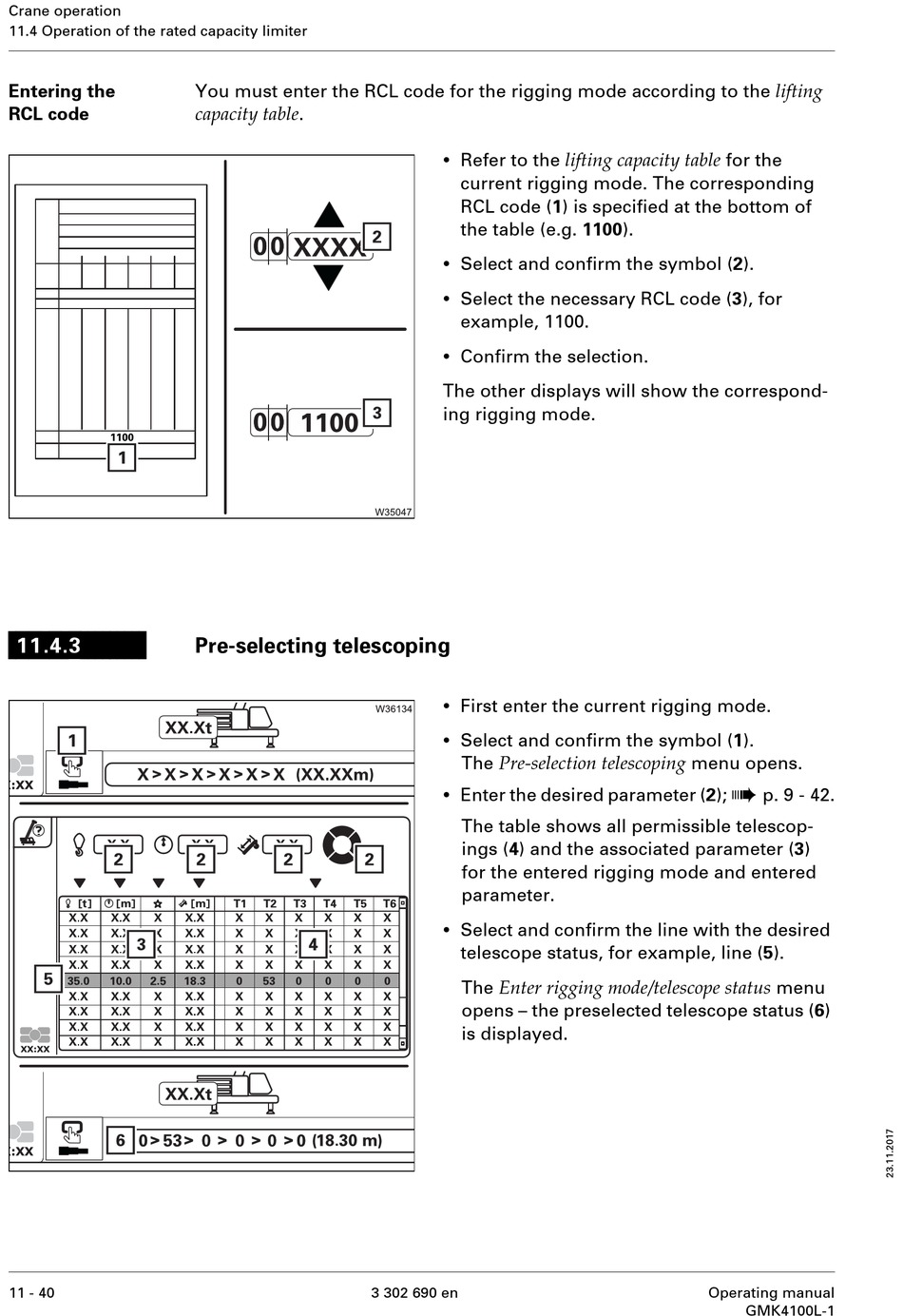

You must enter the RCL code for the rigging mode according to the lifting
capacity table .

Pre-selecting telescoping

•
Refer to the lifting capacity table for the
current rigging mode. The corresponding
RCL code (1) is specified at the bottom of
the table (e.g. 1100).
•
Select and confirm the symbol (2).
•
Select the necessary RCL code (3), for
example, 1100.
•
Confirm the selection.
The other displays will show the correspond-
ing rigging mode.
•
First enter the current rigging mode.
•
Select and confirm the symbol (1).
The Pre-selection telescoping menu opens.
•
Enter the desired parameter (2);
The table shows all permissible telescop-
ings (4) and the associated parameter (3)
for the entered rigging mode and entered
parameter.
•
Select and confirm the line with the desired
telescope status, for example, line (5).
The Enter rigging mode/telescope status menu
opens – the preselected telescope status (6)
is displayed.
3 302 690 en
à
p. 9 - 42.
Operating manual
GMK4100L-1
