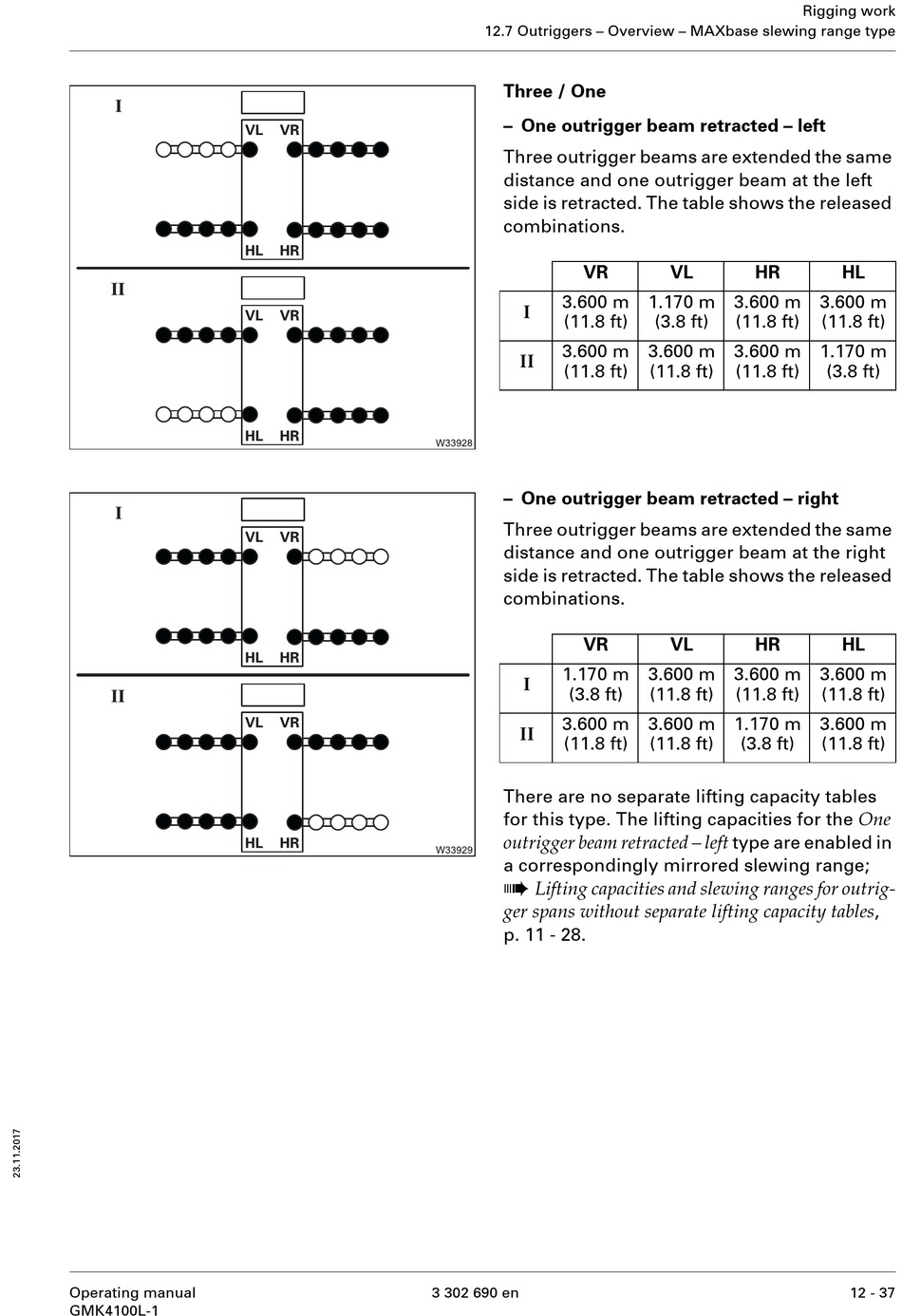

12.7 Outriggers – Overview – MAXbase slewing range type
Three / One
– One outrigger beam retracted – left
Three outrigger beams are extended the same
distance and one outrigger beam at the left
side is retracted. The table shows the released
combinations.
VR
3.600 m
I
(11.8 ft)
3.600 m
II
(11.8 ft)
– One outrigger beam retracted – right
Three outrigger beams are extended the same
distance and one outrigger beam at the right
side is retracted. The table shows the released
combinations.
VR
1.170 m
I
(3.8 ft)
3.600 m
II
(11.8 ft)
There are no separate lifting capacity tables
for this type. The lifting capacities for the One
outrigger beam retracted – left type are enabled in
a correspondingly mirrored slewing range;
à
Lifting capacities and slewing ranges for outrig-
ger spans without separate lifting capacity tables ,
p. 11 - 28.
3 302 690 en
Rigging work
VL HR
1.170 m 3.600 m
(3.8 ft) (11.8 ft)
3.600 m 3.600 m
(11.8 ft) (11.8 ft)
VL HR
3.600 m 3.600 m
(11.8 ft) (11.8 ft)
3.600 m 1.170 m
(11.8 ft) (3.8 ft)
HL
3.600 m
(11.8 ft)
1.170 m
(3.8 ft)
HL
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
