9.2.23
Operating manual
GMK4100L-1

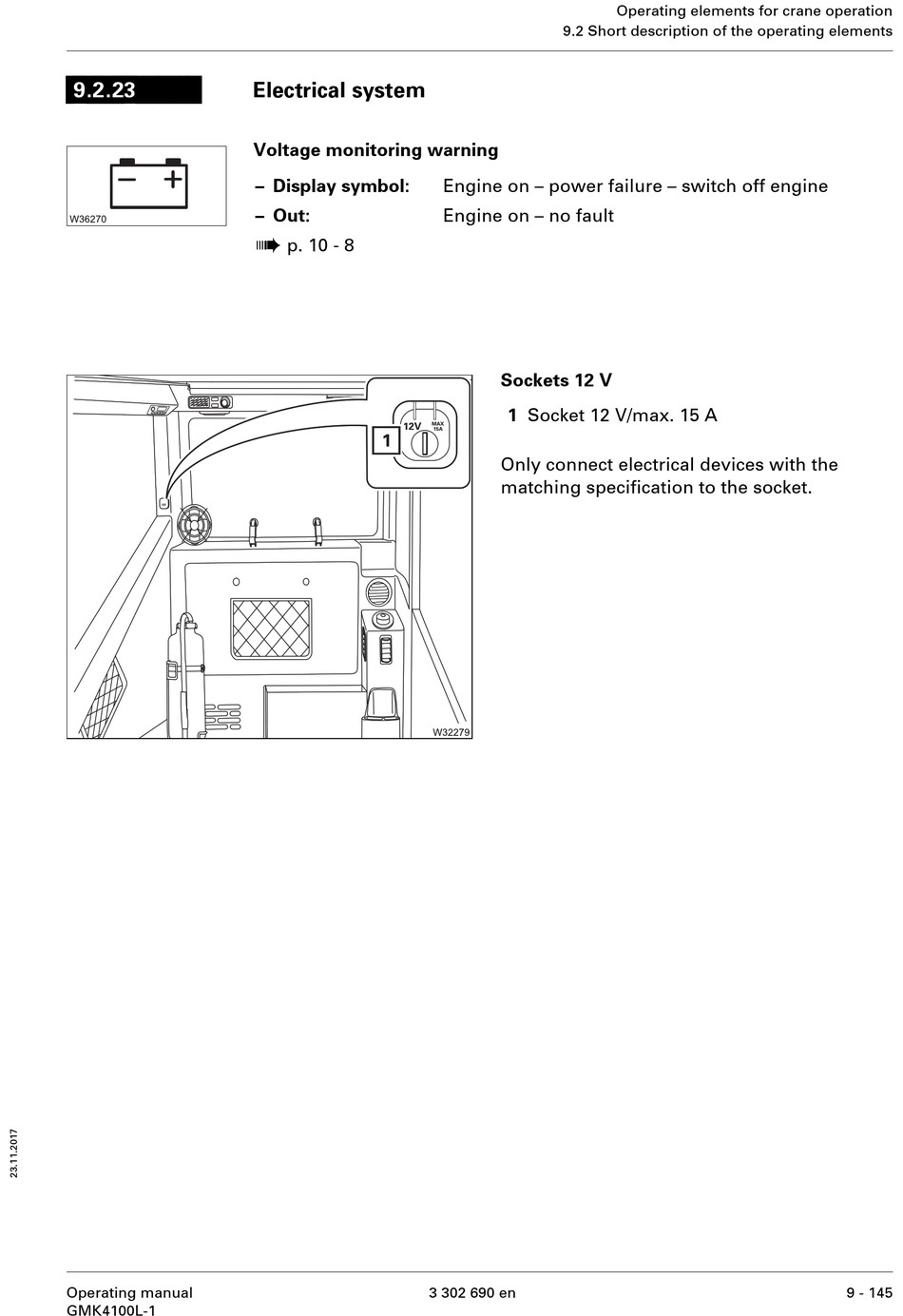

Electrical system

Voltage monitoring warning
– Display symbol:
– Out:
à
p. 10 - 8
9.2 Short description of the operating elements
Engine on – power failure – switch off engine
Engine on – no fault
Sockets 12 V
1 Socket 12 V/max. 15 A
Only connect electrical devices with the
matching specification to the socket.
3 302 690 en
Operating elements for crane operation
9 - 145
