Overriding Torque Reduction - Manitowoc Grove GMK4100L-1 Operating Manual

Crane operation
11.6 Settings and displays for crane operation
11.6.9
11 - 132

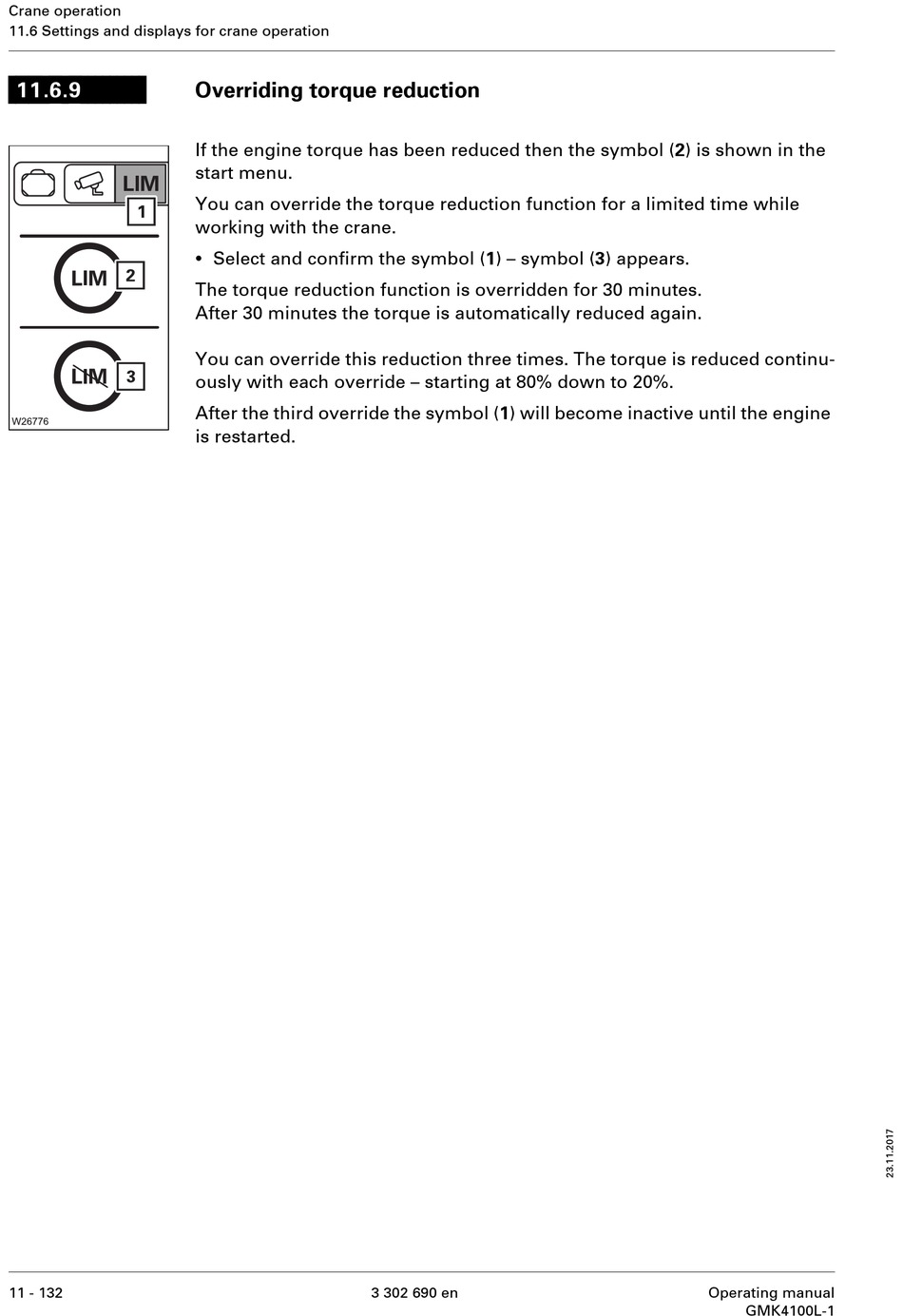

Overriding torque reduction

If the engine torque has been reduced then the symbol (2) is shown in the
start menu.
You can override the torque reduction function for a limited time while
working with the crane.
•
Select and confirm the symbol (1) – symbol (3) appears.
The torque reduction function is overridden for 30 minutes.
After 30 minutes the torque is automatically reduced again.
You can override this reduction three times. The torque is reduced continu-
ously with each override – starting at 80% down to 20%.
After the third override the symbol (1) will become inactive until the engine
is restarted.
3 302 690 en Operating manual
GMK4100L-1
