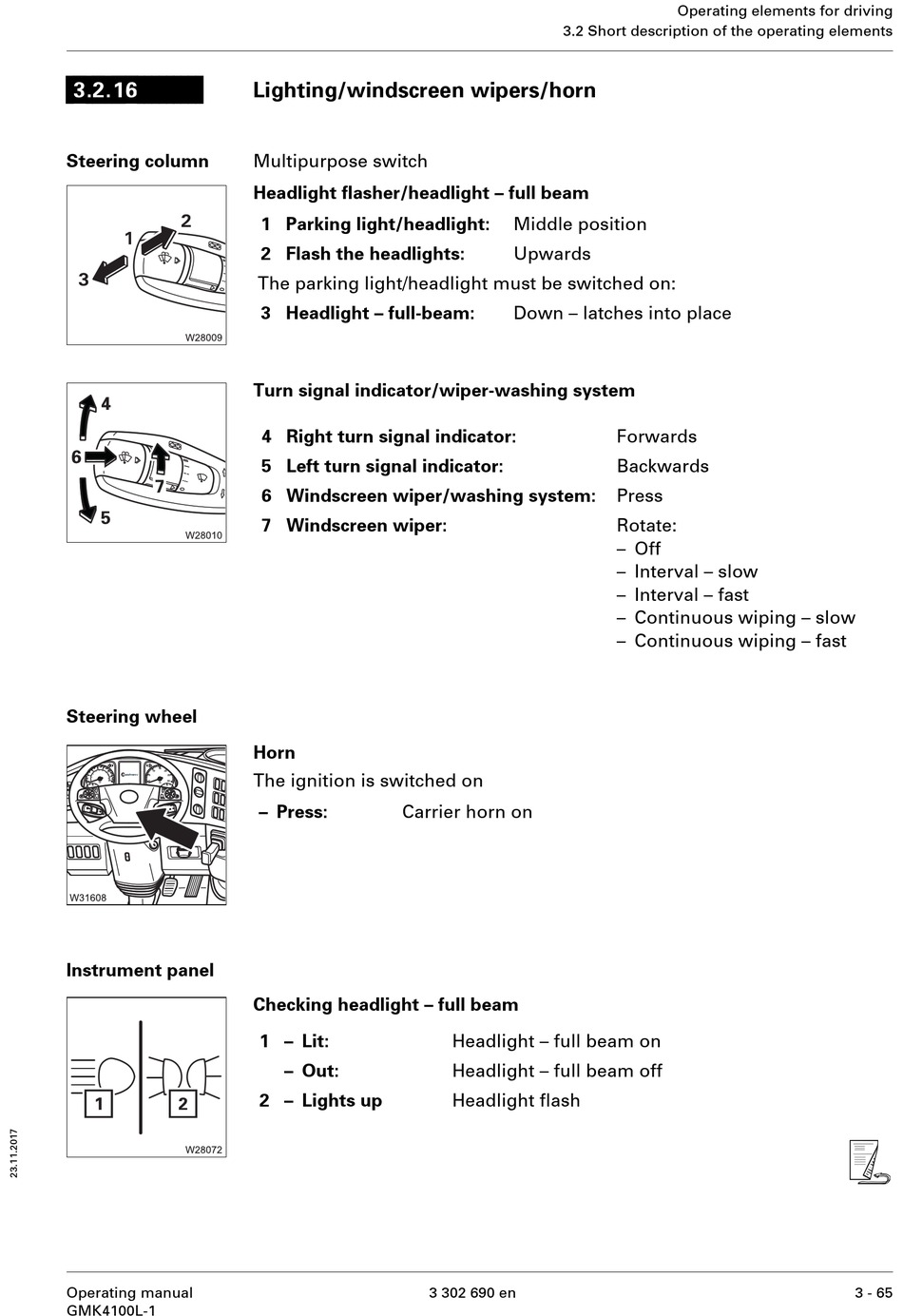

Lighting/Windscreen Wipers/Horn - Manitowoc Grove GMK4100L-1 Operating Manual

3.2.16
Steering column
Steering wheel
Instrument panel
Operating manual
GMK4100L-1

Lighting/windscreen wipers/horn

Multipurpose switch
Headlight flasher/headlight – full beam
1 Parking light/headlight:
2 Flash the headlights:
The parking light/headlight must be switched on:
3 Headlight – full-beam:
Turn signal indicator/wiper-washing system
4 Right turn signal indicator:
5 Left turn signal indicator:
6 Windscreen wiper/washing system:
7 Windscreen wiper:
Horn
The ignition is switched on
– Press: Carrier horn on
Checking headlight – full beam
1 – Lit:
– Out:
2 – Lights up
3.2 Short description of the operating elements
Middle position
Upwards
Down – latches into place
Headlight – full beam on
Headlight – full beam off
Headlight flash
3 302 690 en
Operating elements for driving
Forwards
Backwards
Press
Rotate:
– Off
– Interval – slow
– Interval – fast
– Continuous wiping – slow
– Continuous wiping – fast
s
