Crane cab door
Operating manual
GMK4100L-1
9.2 Short description of the operating elements

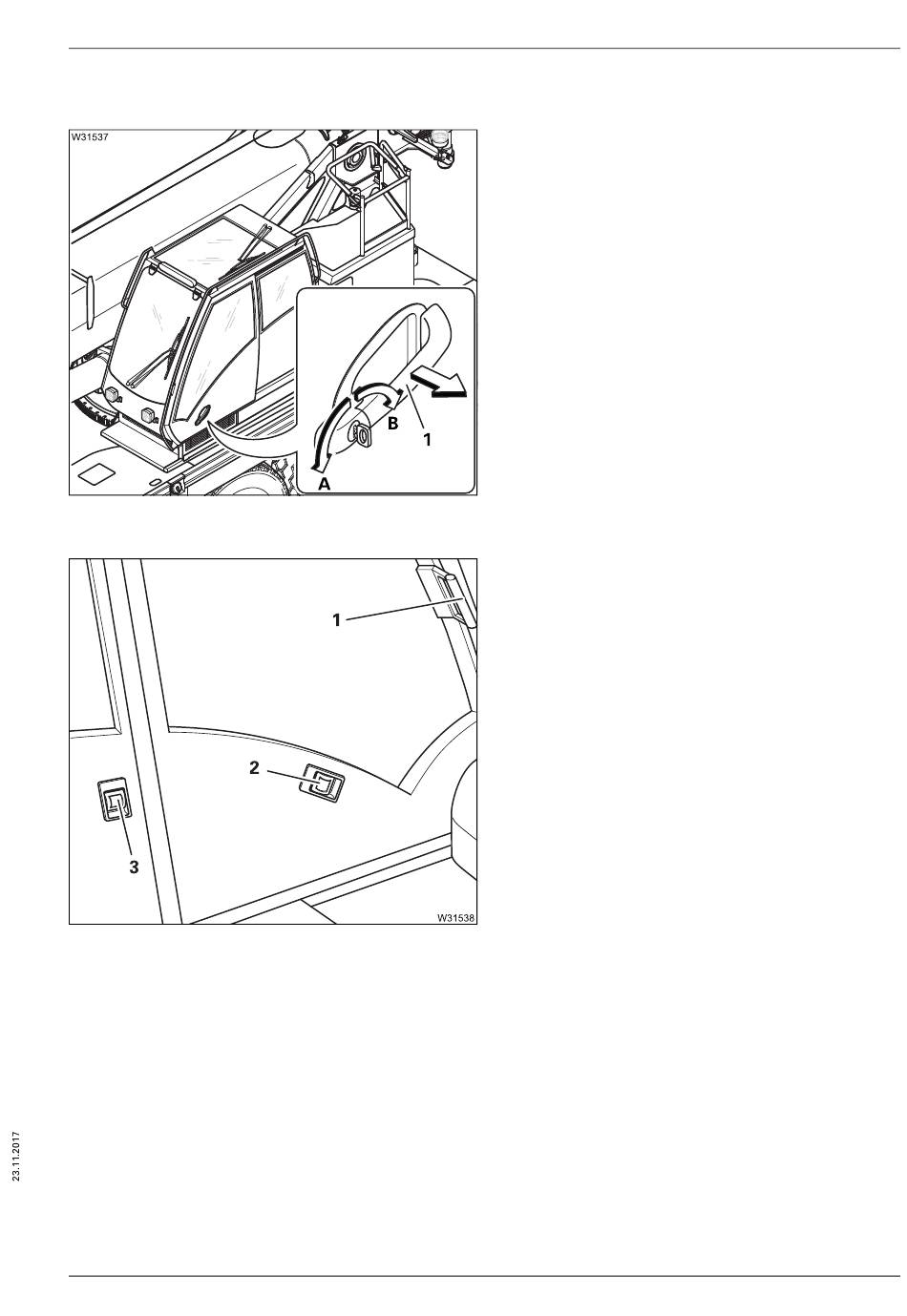

From outside
Unlocking
•
Turn the key in direction A.
Locking
•
Turn the key in direction B.
Open/close
•
Pull the handle (1).
•
Slide the door.
From inside
– Closing
Pull unlocking lever (3), push door forwards
by handle (1) – engages.
Locking from inside not possible.
– Opening
Pull unlocking lever (2), push door back by
handle (1) – latches.
