Operating elements for driving
3.2 Short description of the operating elements
3 - 78

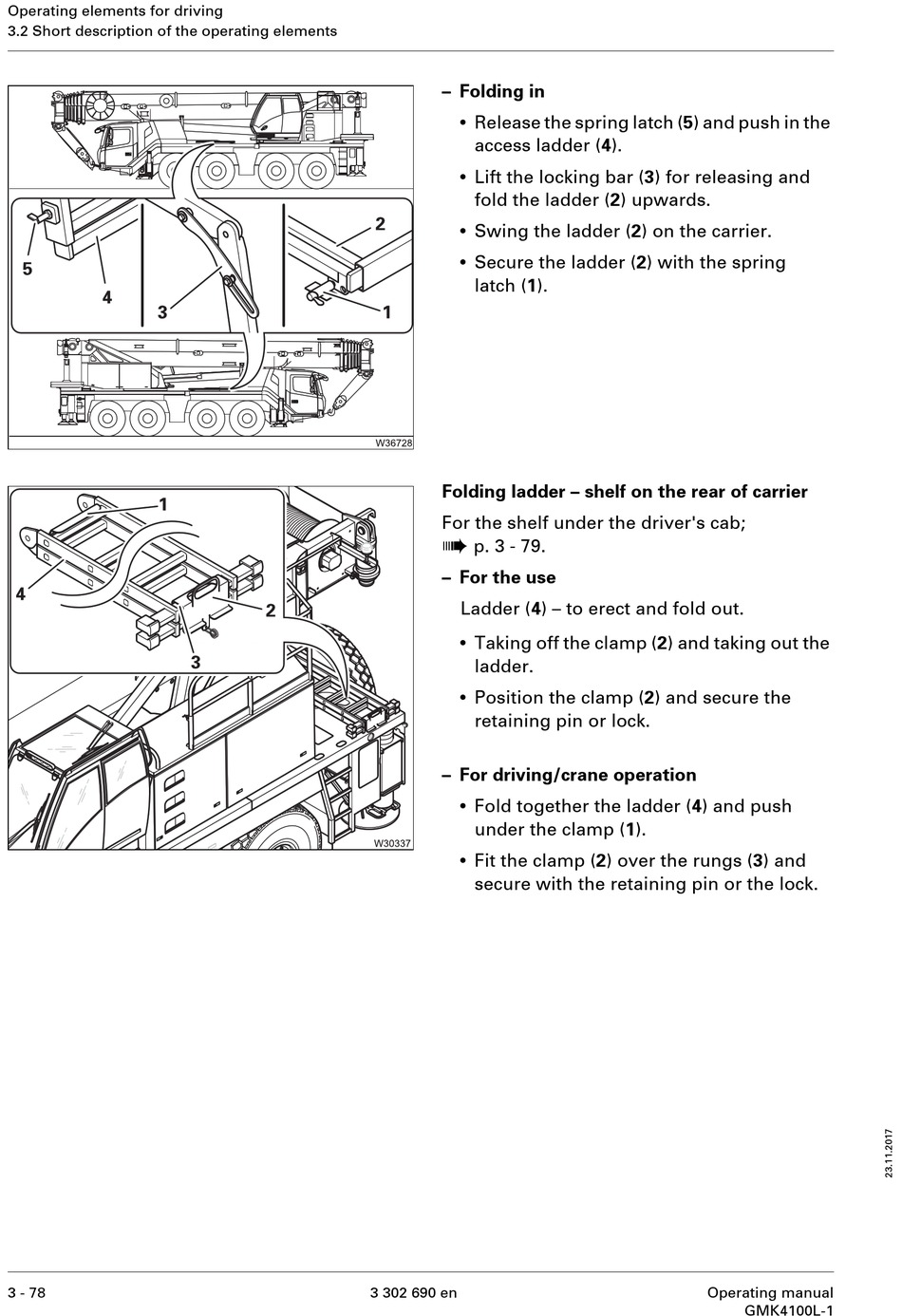

– Folding in
•
Release the spring latch (5) and push in the
access ladder (4).
•
Lift the locking bar (3) for releasing and
fold the ladder (2) upwards.
•
Swing the ladder (2) on the carrier.
•
Secure the ladder (2) with the spring
latch (1).
Folding ladder – shelf on the rear of carrier
For the shelf under the driver's cab;
à
p. 3 - 79.
– For the use
Ladder (4) – to erect and fold out.
•
Taking off the clamp (2) and taking out the
ladder.
•
Position the clamp (2) and secure the
retaining pin or lock.
– For driving/crane operation
•
Fold together the ladder (4) and push
under the clamp (1).
•
Fit the clamp (2) over the rungs (3) and
secure with the retaining pin or the lock.
3 302 690 en Operating manual
GMK4100L-1
