Crane operation
11.1 Before operating the crane
11.1.3
Crane cab seat
11 - 8

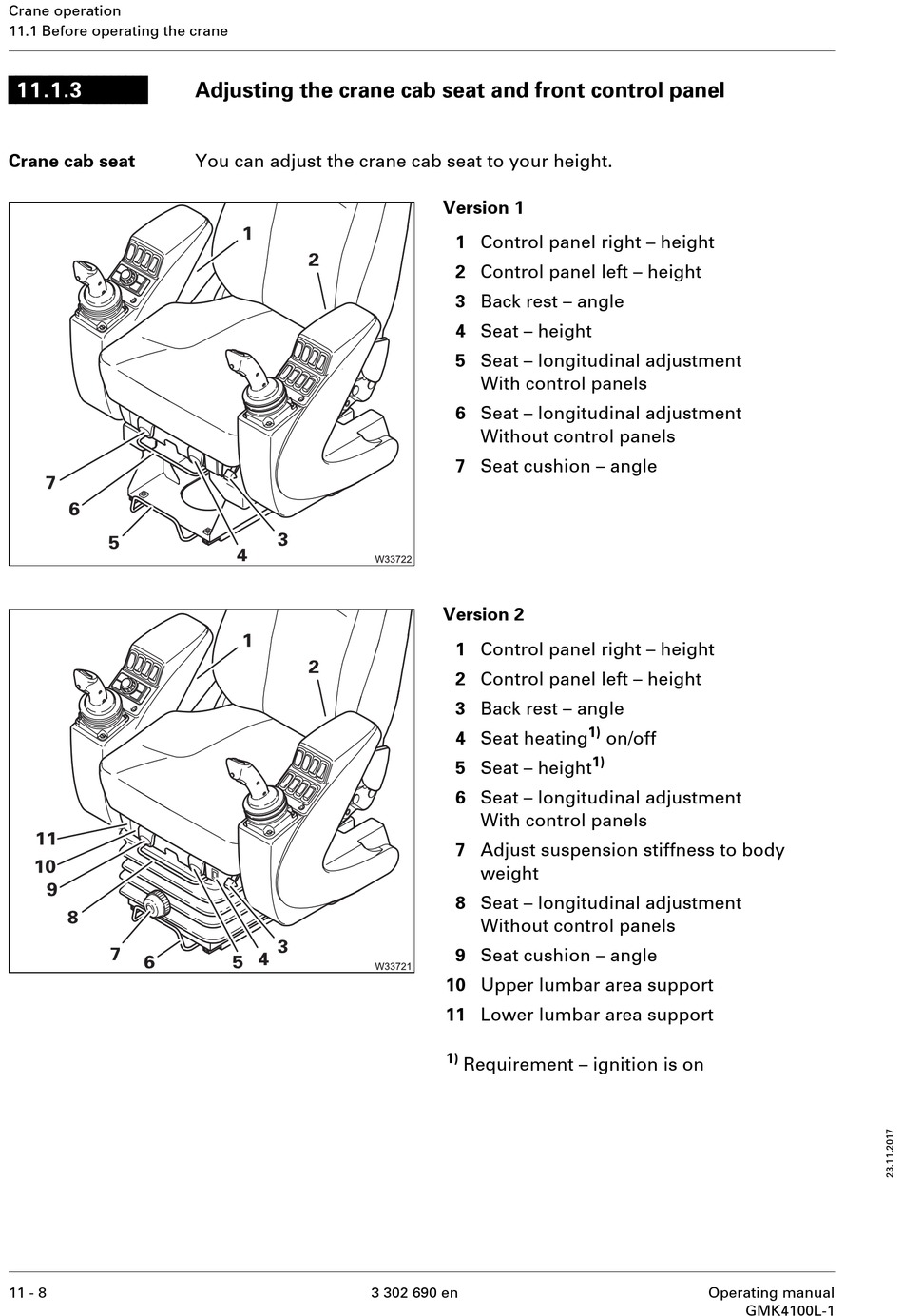

Adjusting the crane cab seat and front control panel

You can adjust the crane cab seat to your height.
Version 1
1 Control panel right – height
2 Control panel left – height
3 Back rest – angle
4 Seat – height
5 Seat – longitudinal adjustment
With control panels
6 Seat – longitudinal adjustment
Without control panels
7 Seat cushion – angle
Version 2
1 Control panel right – height
2 Control panel left – height
3 Back rest – angle
4 Seat heating
5 Seat – height
6 Seat – longitudinal adjustment
With control panels
7 Adjust suspension stiffness to body
weight
8 Seat – longitudinal adjustment
Without control panels
9 Seat cushion – angle
10 Upper lumbar area support
11 Lower lumbar area support
1)
Requirement – ignition is on
3 302 690 en
1)
on/off
1)
Operating manual
GMK4100L-1
