Driving modes
6.5 Installing/removing the outrigger beams
6.5.9
Unscrewing
6 - 40

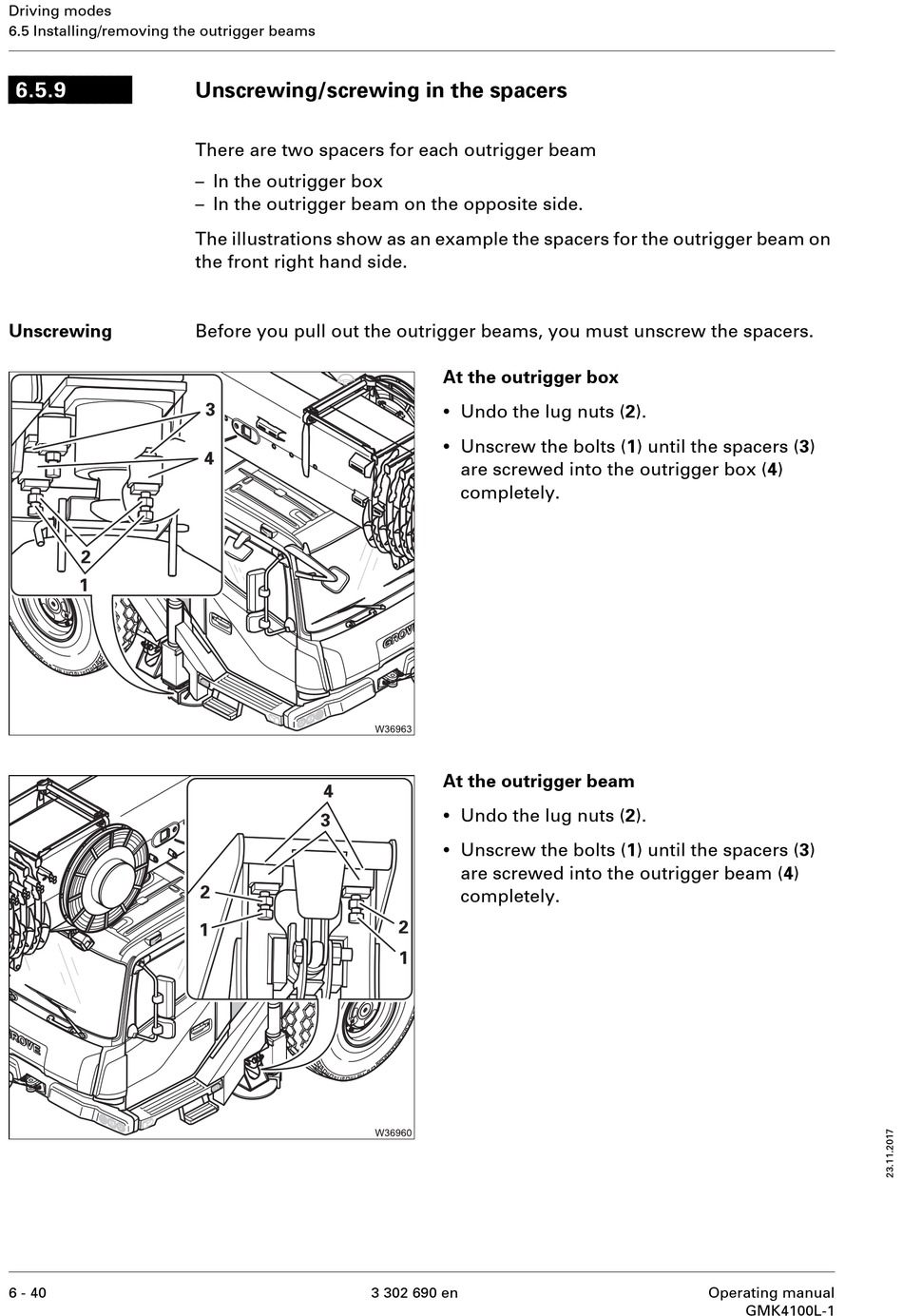

Unscrewing/screwing in the spacers

There are two spacers for each outrigger beam
– In the outrigger box
– In the outrigger beam on the opposite side.
The illustrations show as an example the spacers for the outrigger beam on
the front right hand side.
Before you pull out the outrigger beams, you must unscrew the spacers.
At the outrigger box
•
Undo the lug nuts (2).
•
Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger box (4)
completely.
At the outrigger beam
•
Undo the lug nuts (2).
•
Unscrew the bolts (1) until the spacers (3)
are screwed into the outrigger beam (4)
completely.
3 302 690 en Operating manual
GMK4100L-1
