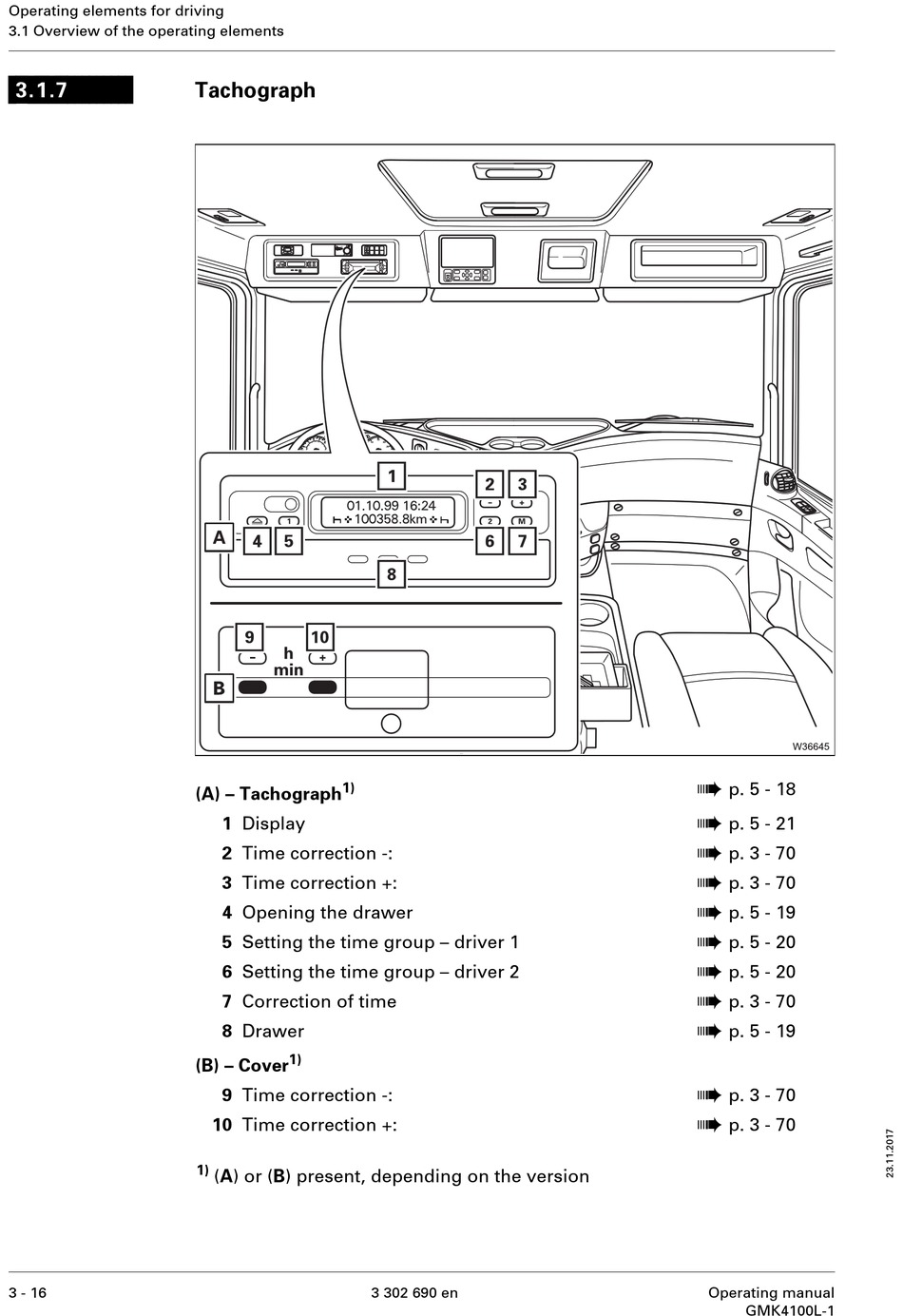

Tachograph - Manitowoc Grove GMK4100L-1 Operating Manual

Operating elements for driving
3.1 Overview of the operating elements
3.1.7
3 - 16

Tachograph

r
1)
(A) – Tachograph
1 Display
2 Time correction -:
3 Time correction +:
4 Opening the drawer
5 Setting the time group – driver 1
6 Setting the time group – driver 2
7 Correction of time
8 Drawer
1)
(B) – Cover
9 Time correction -:
10 Time correction +:
1)
(A) or (B) present, depending on the version
