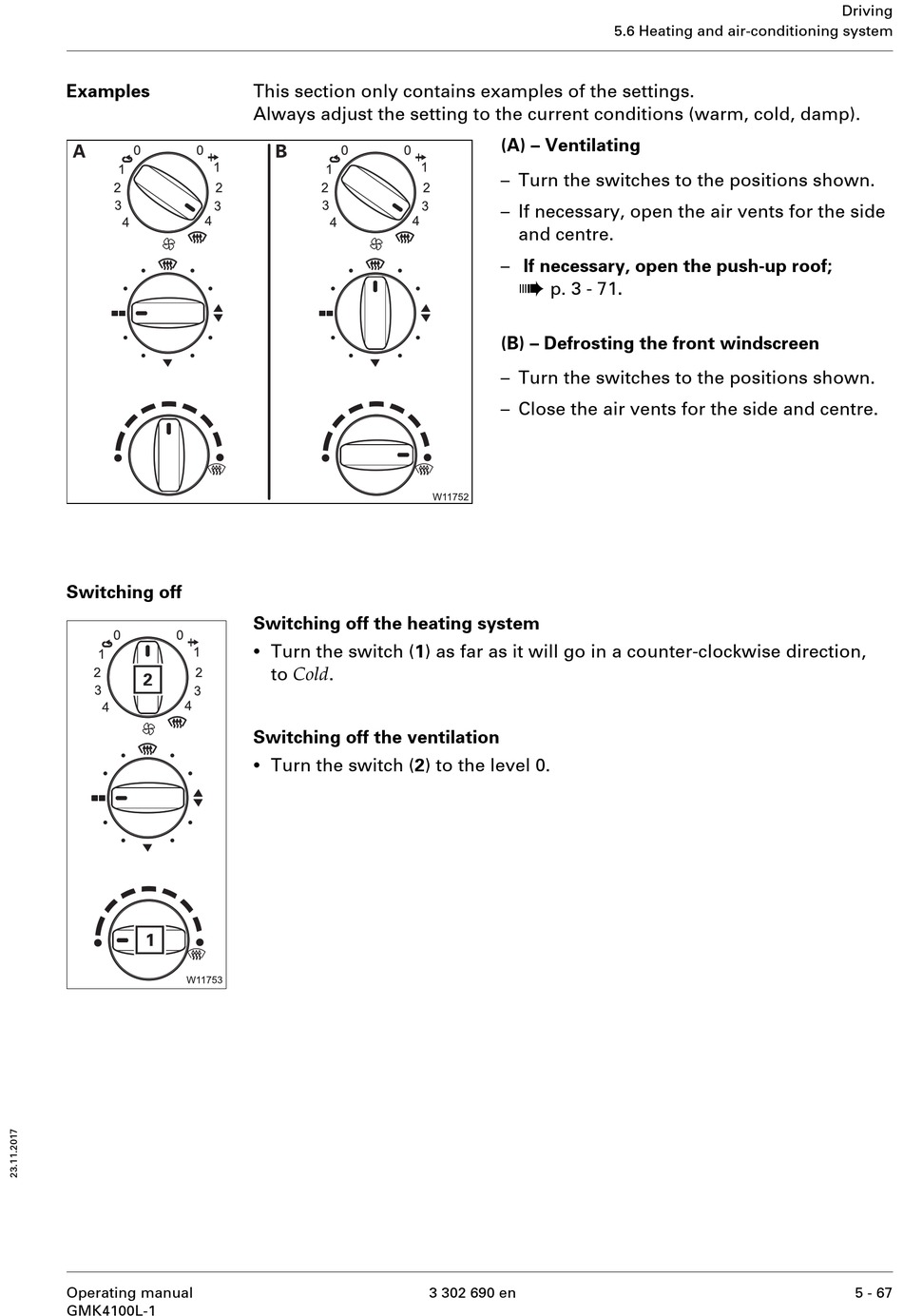

Examples
Switching off
Operating manual
GMK4100L-1
This section only contains examples of the settings.
Always adjust the setting to the current conditions (warm, cold, damp).
Switching off the heating system
•
Turn the switch (1) as far as it will go in a counter-clockwise direction,
to Cold .
Switching off the ventilation
•
Turn the switch (2) to the level 0.
(A) – Ventilating
– Turn the switches to the positions shown.
– If necessary, open the air vents for the side
and centre.
– If necessary, open the push-up roof;
à
p. 3 - 71.
(B) – Defrosting the front windscreen
– Turn the switches to the positions shown.
– Close the air vents for the side and centre.
3 302 690 en
5.6 Heating and air-conditioning system
Driving
5 - 67
