Display, driving

Operating manual

3.2 Short description of the operating elements

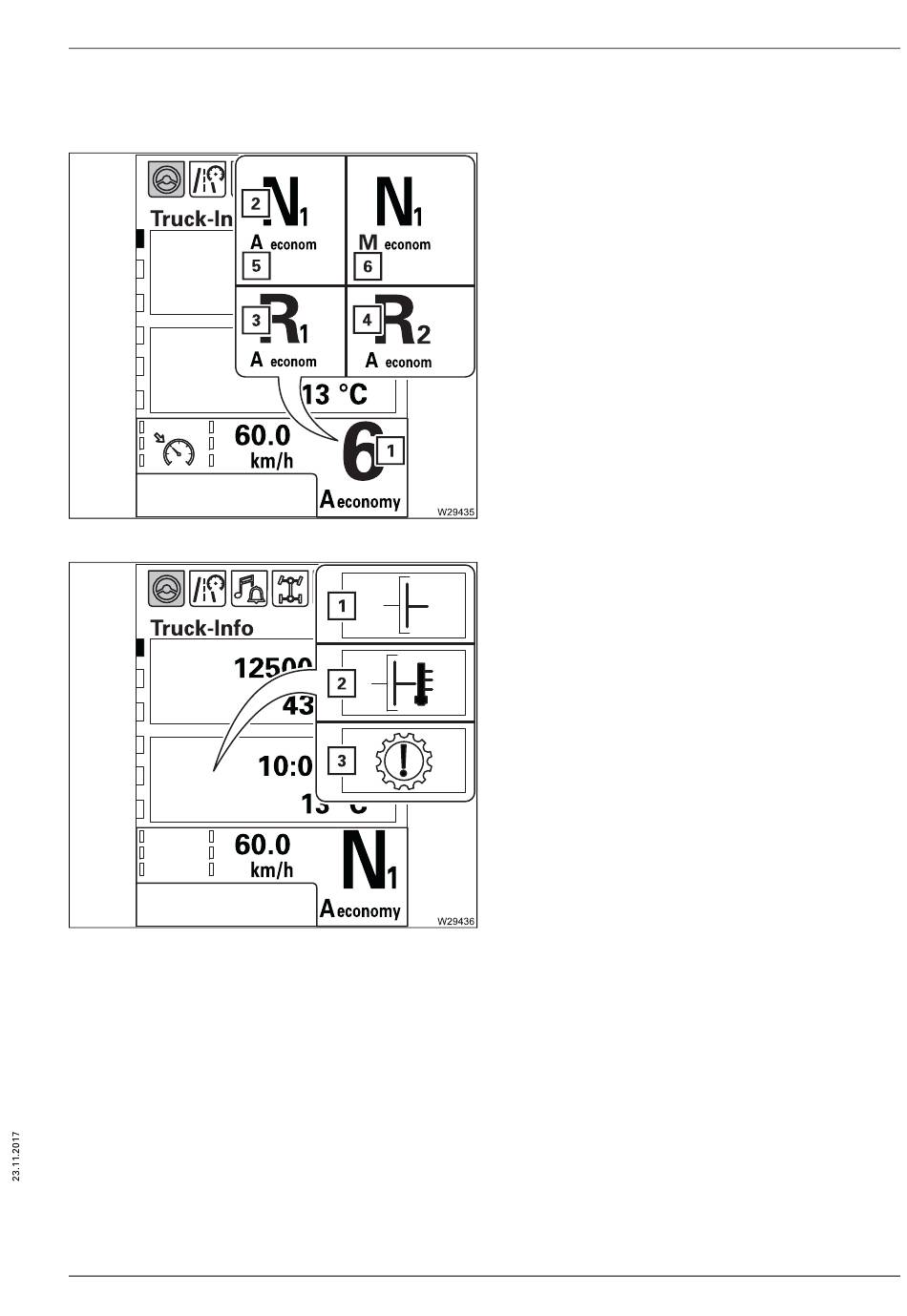

Transmission display

1 Currently engaged gear – forwards

(1 to 16), e.g. 6

2 Neutral position switched on

3 Gear currently engaged – 1st reverse gear

4 Gear currently engaged – 2nd reverse

5 Automatic operating mode

6 Manual operating mode

Error messages display

1 Clutch heavily loaded

2 Clutch malfunction

3 Gear shift malfunction

3 302 690 en

Operating elements for driving
