Switching To Separate Steering - Manitowoc Grove GMK4100L-1 Operating Manual

Driving
5.5 Separate steering
5.5.1
G
H
5 - 60

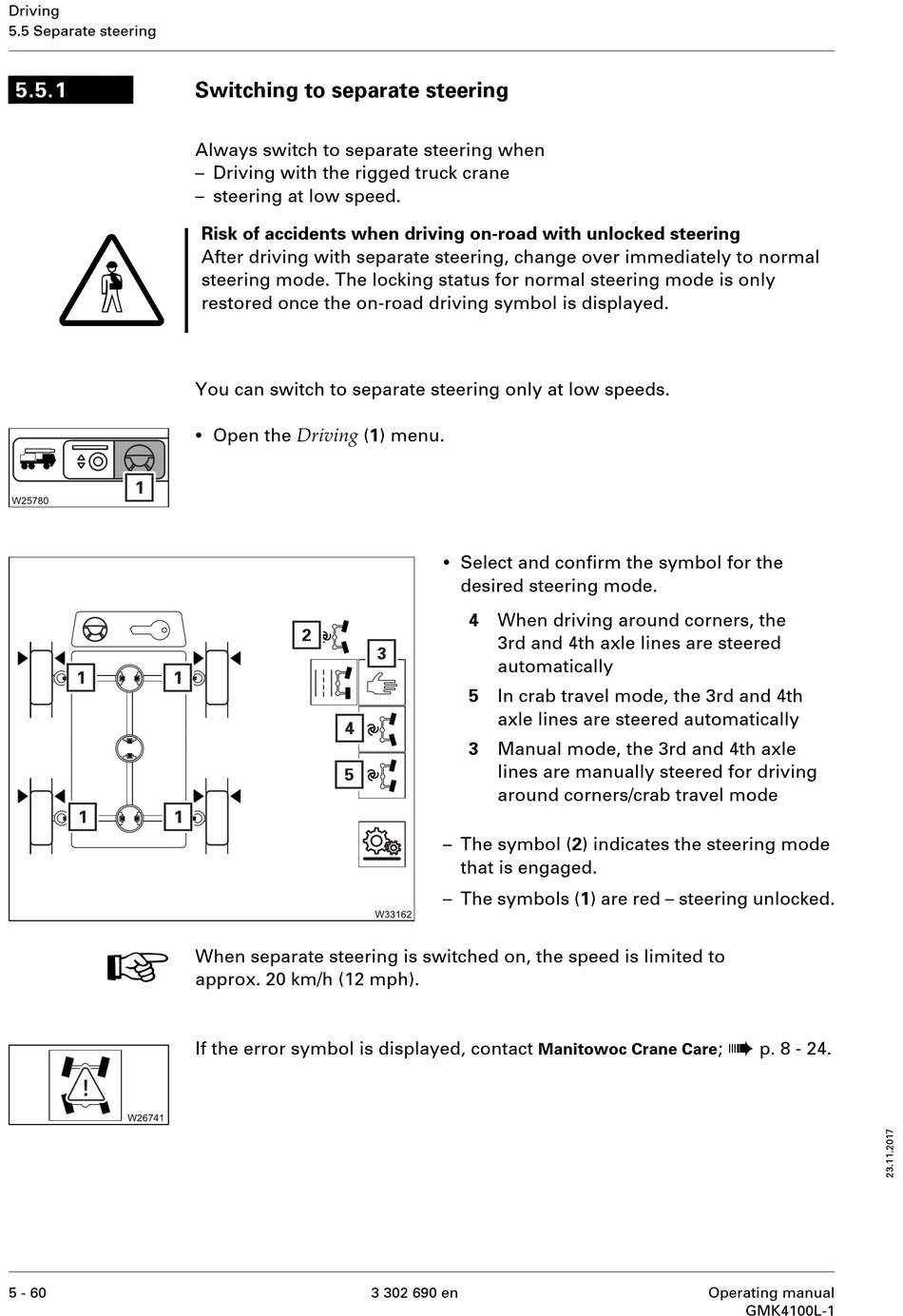

Switching to separate steering

Always switch to separate steering when
– Driving with the rigged truck crane
– steering at low speed.
Risk of accidents when driving on-road with unlocked steering
After driving with separate steering, change over immediately to normal
steering mode. The locking status for normal steering mode is only
restored once the on-road driving symbol is displayed.
You can switch to separate steering only at low speeds.
•
Open the Driving (1) menu.
When separate steering is switched on, the speed is limited to
approx. 20 km/h (12 mph).
If the error symbol is displayed, contact
•
Select and confirm the symbol for the
desired steering mode.
4 When driving around corners, the
3rd and 4th axle lines are steered
automatically
5 In crab travel mode, the 3rd and 4th
axle lines are steered automatically
3 Manual mode, the 3rd and 4th axle
lines are manually steered for driving
around corners/crab travel mode
– The symbol (2) indicates the steering mode
that is engaged.
– The symbols (1) are red – steering unlocked.
Manitowoc Crane Care
3 302 690 en
à
; p. 8 - 24.
Operating manual
GMK4100L-1
