Final Drive - Manitowoc Grove GMK4100L-1 Operating Manual

9.3.3
Operating manual
GMK4100L-1
9.3 Short description of the operating elements – driving from the crane cab

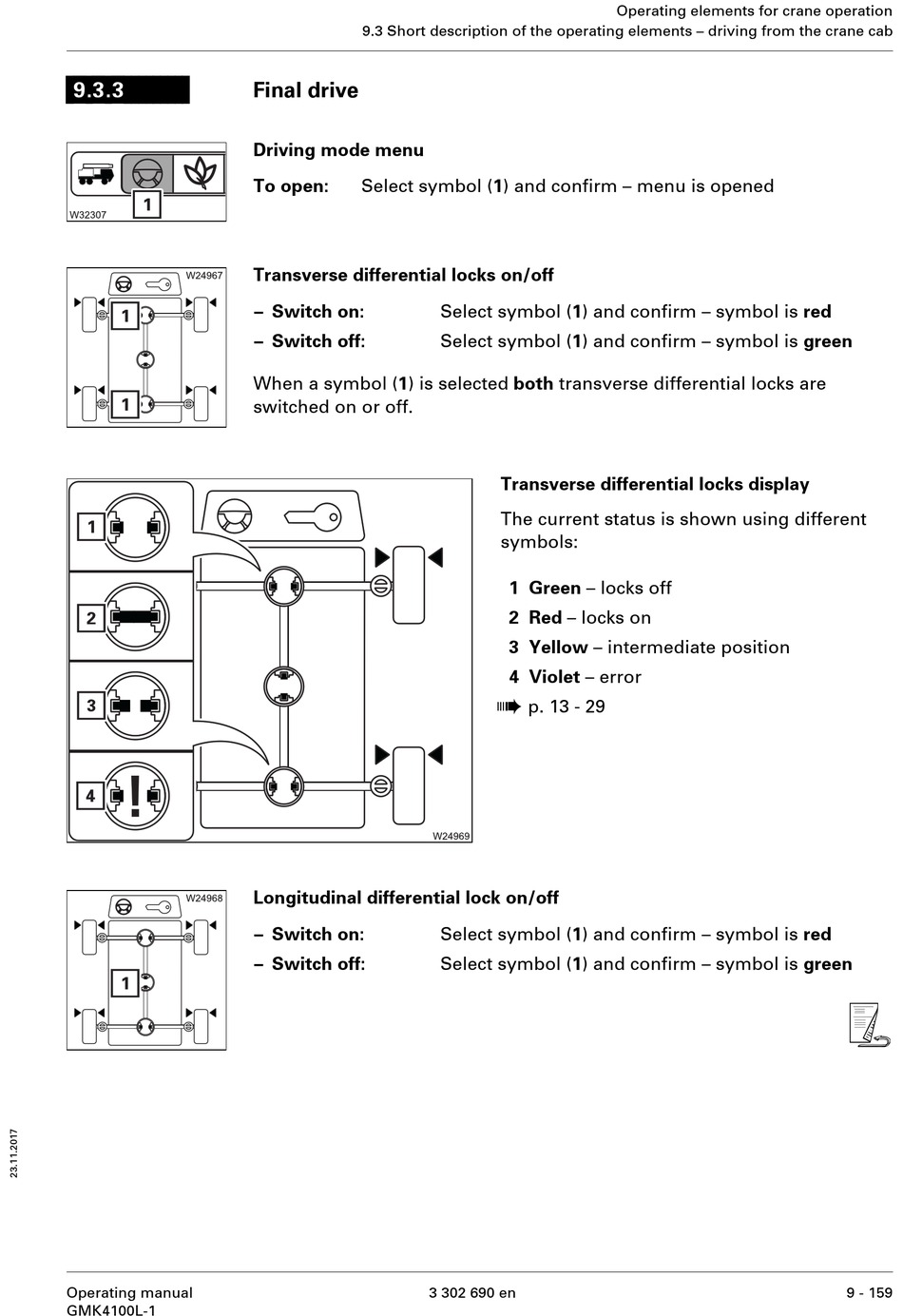

Final drive

Driving mode menu
To open: Select symbol (1) and confirm – menu is opened
Transverse differential locks on/off
– Switch on:
– Switch off:
When a symbol (1) is selected both transverse differential locks are
switched on or off.
Longitudinal differential lock on/off
– Switch on:
– Switch off:
Select symbol (1) and confirm – symbol is red
Select symbol (1) and confirm – symbol is green
Transverse differential locks display
The current status is shown using different
symbols:
1 Green – locks off
2 Red – locks on
3 Yellow – intermediate position
4 Violet – error
à
p. 13 - 29
Select symbol (1) and confirm – symbol is red
Select symbol (1) and confirm – symbol is green
