Crane operation
11.5 Crane operation with main boom
11 - 102

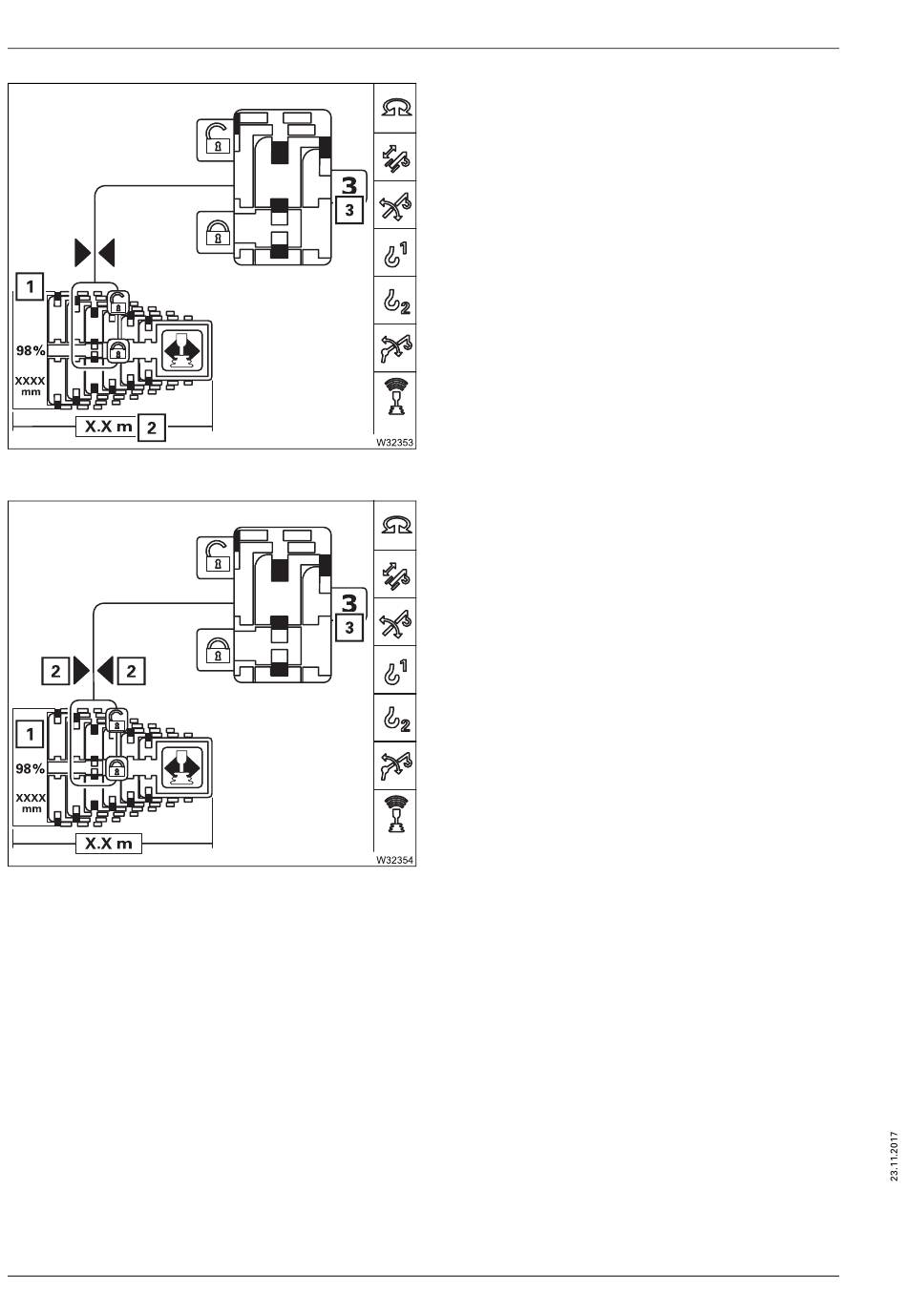

Current telescoping
The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
The display (2) shows the current main boom
length.
The display (3) shows the corresponding
telescopic section, for example, telescopic
section 3 .
Position of the telescoping cylinder
The display (1) shows how far the telescoping
cylinder is extended, for example, 98%.
If the telescoping cylinder is near a locking
point:
– The display (3) shows the corresponding
telescopic section, for example, telescopic
section 3 .
– The display (2) shows one or two arrows,
depending on the distance to the locking
point.
