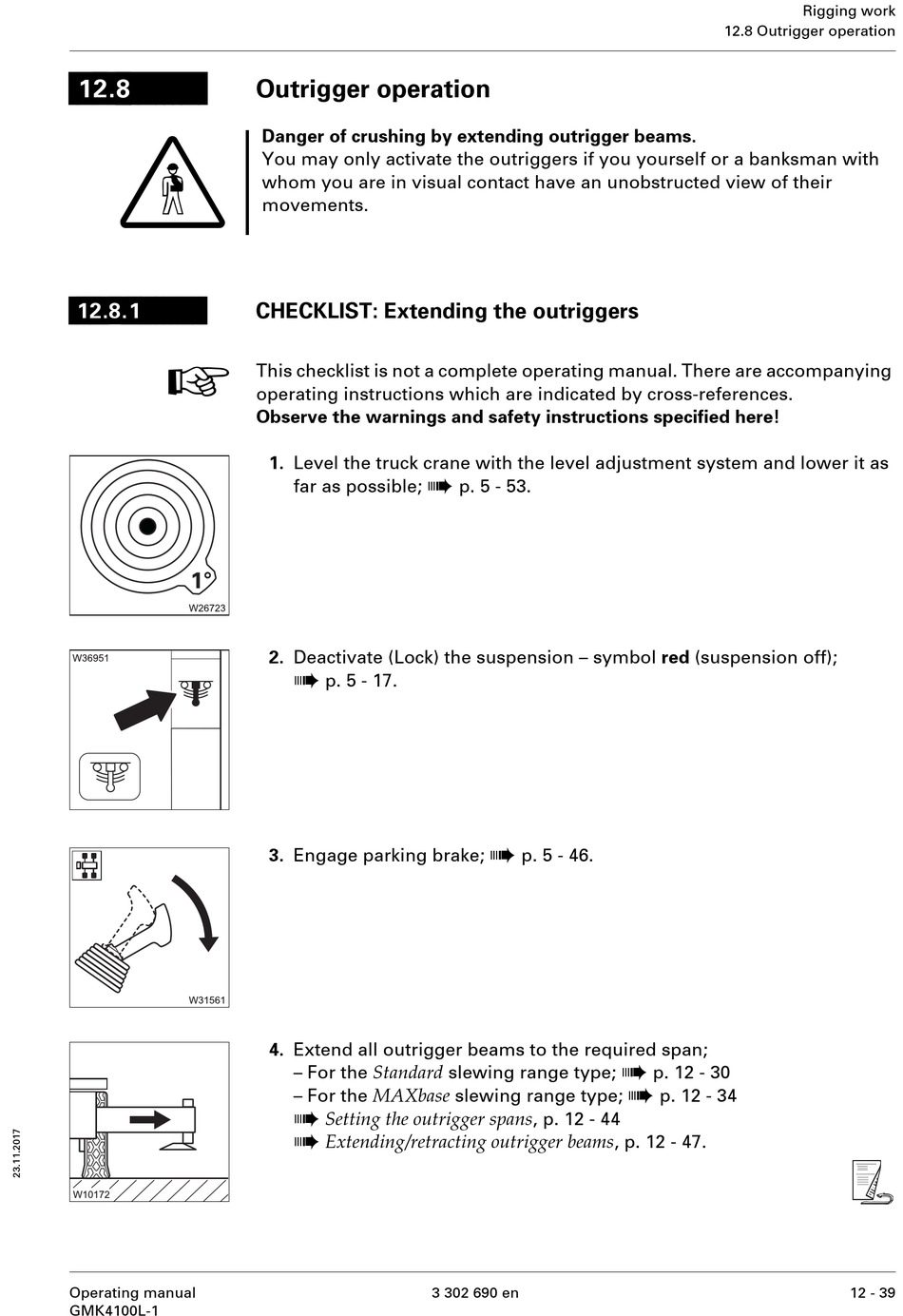

Outrigger operation

Danger of crushing by extending outrigger beams.
You may only activate the outriggers if you yourself or a banksman with
whom you are in visual contact have an unobstructed view of their
movements.

CHECKLIST: Extending the outriggers

This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. Level the truck crane with the level adjustment system and lower it as
far as possible;
2. Deactivate (Lock) the suspension – symbol red (suspension off);
à
p. 5 - 17.
3. Engage parking brake;
4. Extend all outrigger beams to the required span;
– For the Standard slewing range type;
– For the MAXbase slewing range type;
à
Setting the outrigger spans , p. 12 - 44
à
Extending/retracting outrigger beams , p. 12 - 47.
à
p. 5 - 53.
à
p. 5 - 46.
3 302 690 en
12.8 Outrigger operation
à
p. 12 - 30
à
p. 12 - 34
