Operating elements for crane operation

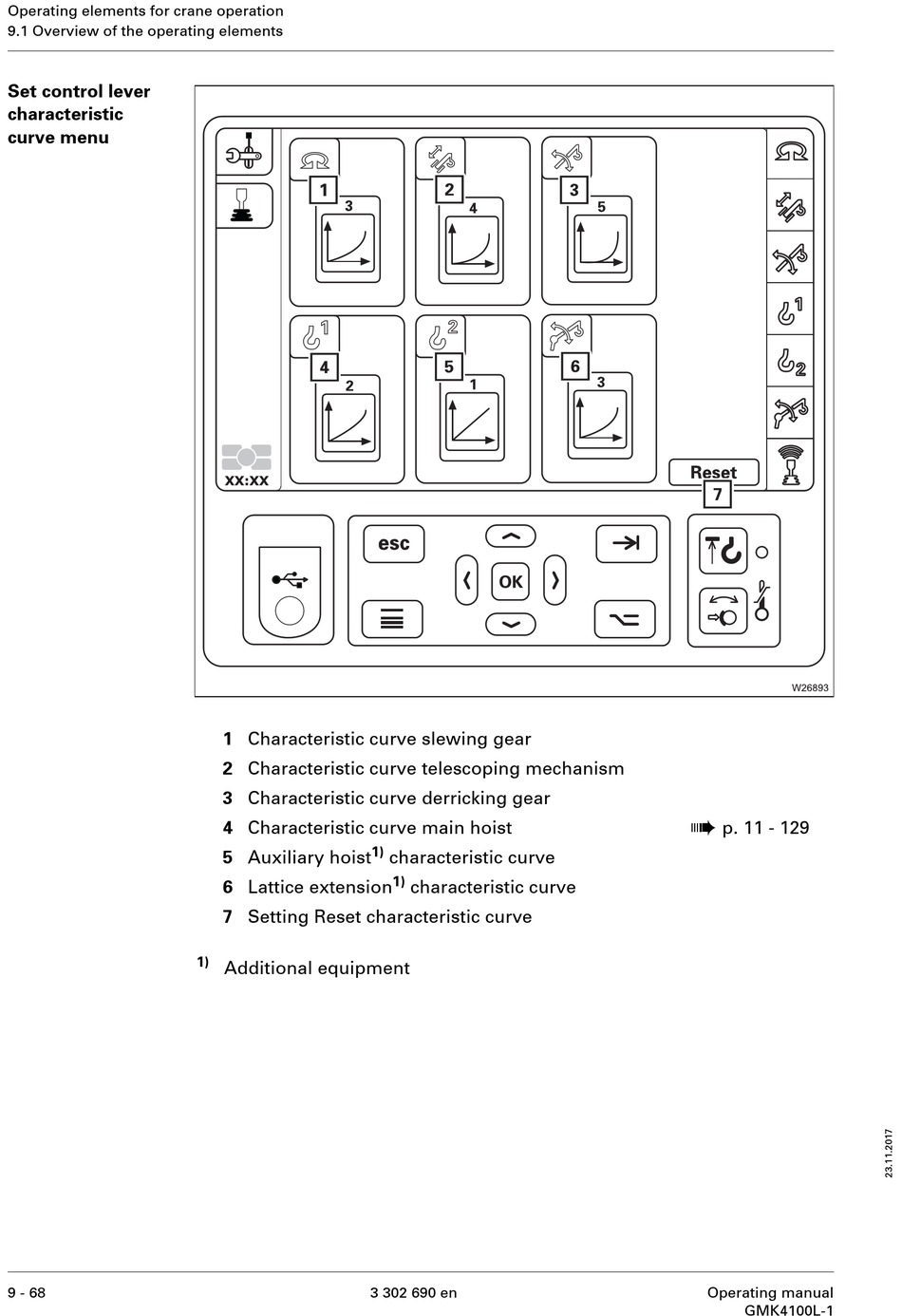

9.1 Overview of the operating elements
Set control lever
characteristic
curve menu
9 - 68
1 Characteristic curve slewing gear
2 Characteristic curve telescoping mechanism
3 Characteristic curve derricking gear
4 Characteristic curve main hoist
5 Auxiliary hoist
6 Lattice extension
7 Setting Reset characteristic curve
1)
Additional equipment
1)
characteristic curve
1)
characteristic curve
3 302 690 en
à
p. 11 - 129
Operating manual
GMK4100L-1
