Operating manual
GMK4100L-1

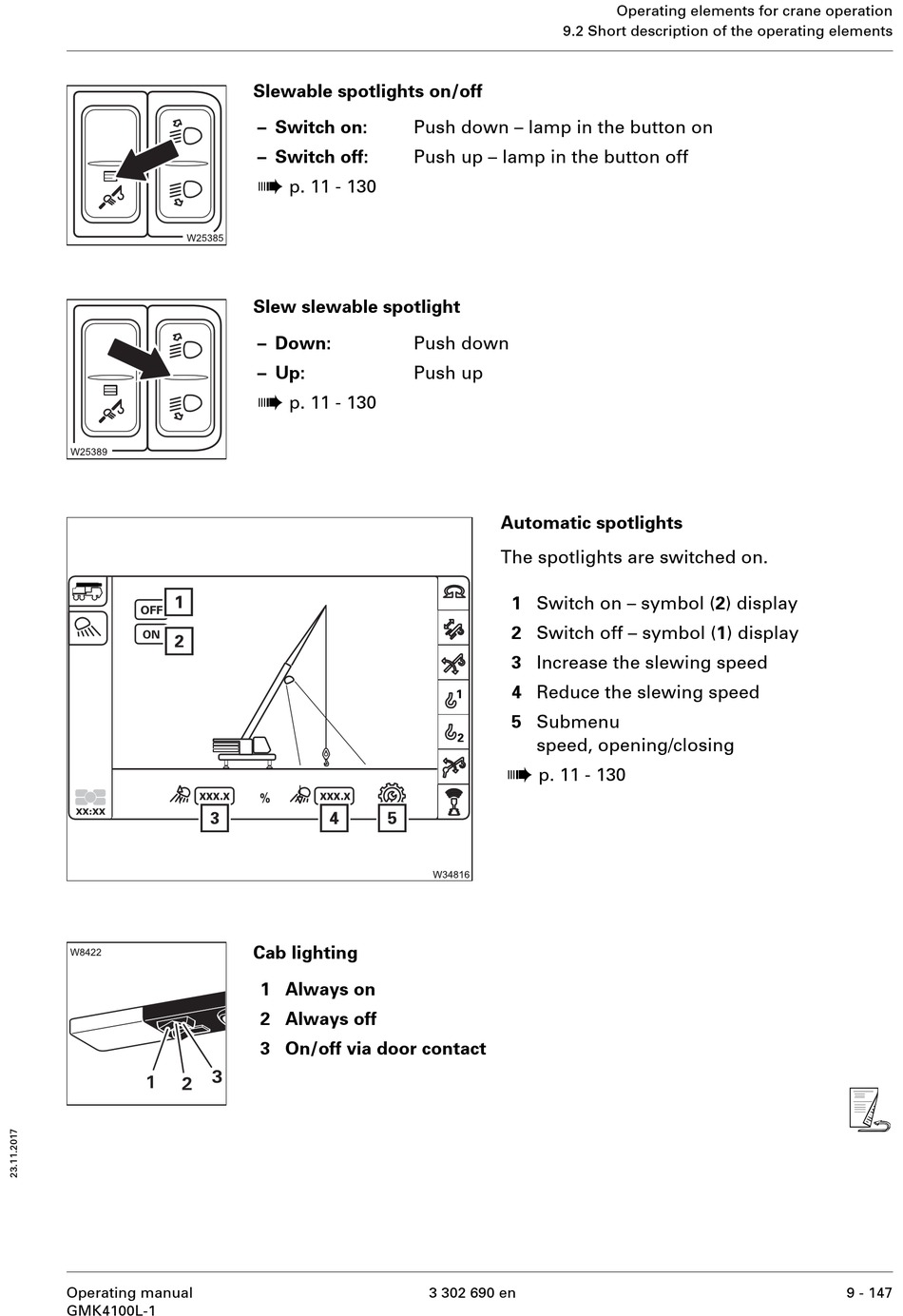

Slewable spotlights on/off
– Switch on:
Push down – lamp in the button on
– Switch off:
Push up – lamp in the button off
à
p. 11 - 130
Slew slewable spotlight
– Down:
Push down
– Up:
Push up
à
p. 11 - 130
Cab lighting
1 Always on
2 Always off
3 On/off via door contact
9.2 Short description of the operating elements
Automatic spotlights
The spotlights are switched on.
1 Switch on – symbol (2) display
2 Switch off – symbol (1) display
3 Increase the slewing speed
4 Reduce the slewing speed
5 Submenu
speed, opening/closing
à
p. 11 - 130
3 302 690 en
Operating elements for crane operation
s
9 - 147
