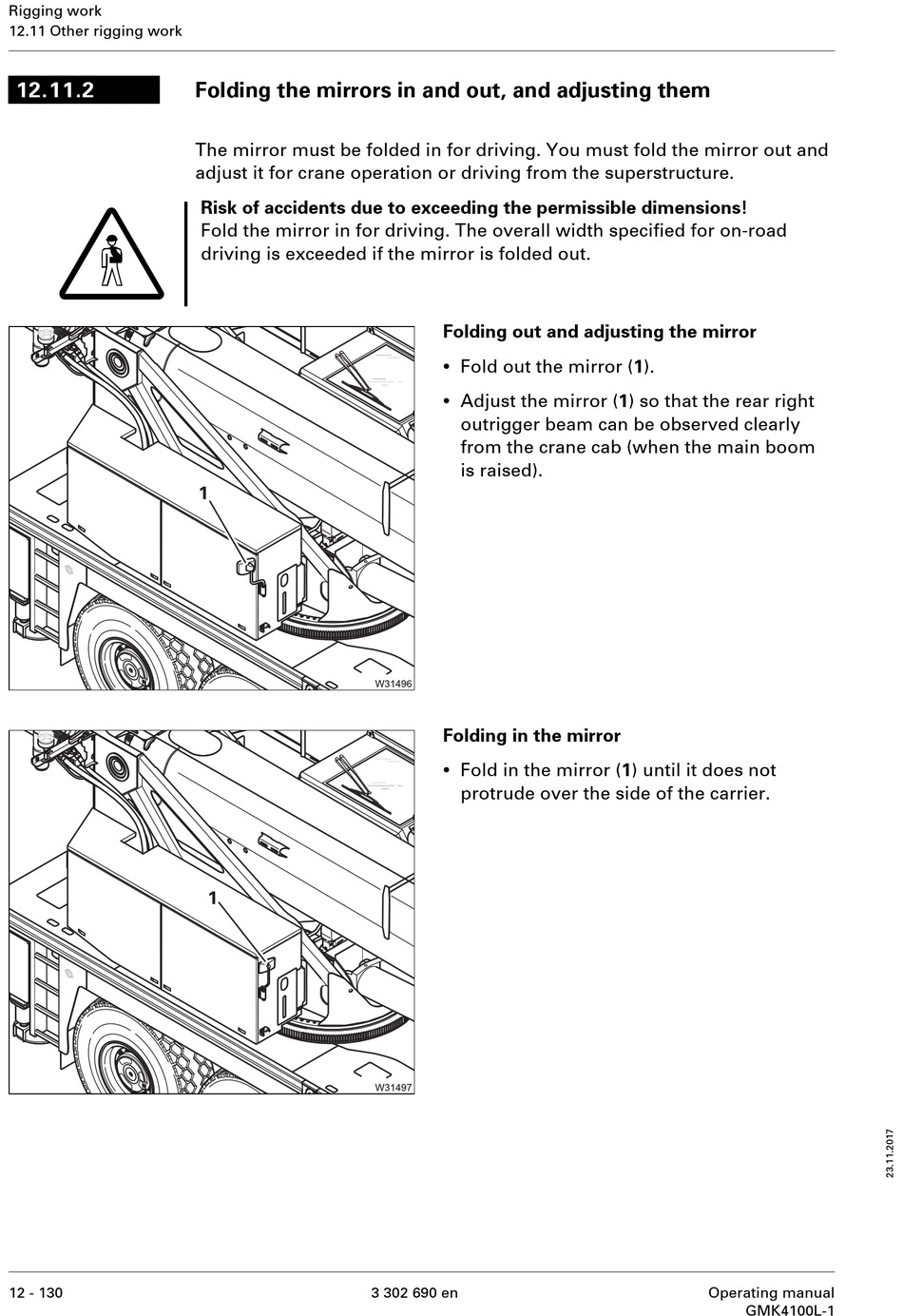

Folding the mirrors in and out, and adjusting them

The mirror must be folded in for driving. You must fold the mirror out and
adjust it for crane operation or driving from the superstructure.
Risk of accidents due to exceeding the permissible dimensions!
Fold the mirror in for driving. The overall width specified for on-road
driving is exceeded if the mirror is folded out.
Folding out and adjusting the mirror
•
Fold out the mirror (1).
•
Adjust the mirror (1) so that the rear right
outrigger beam can be observed clearly
from the crane cab (when the main boom
is raised).
Folding in the mirror
•
Fold in the mirror (1) until it does not
protrude over the side of the carrier.
