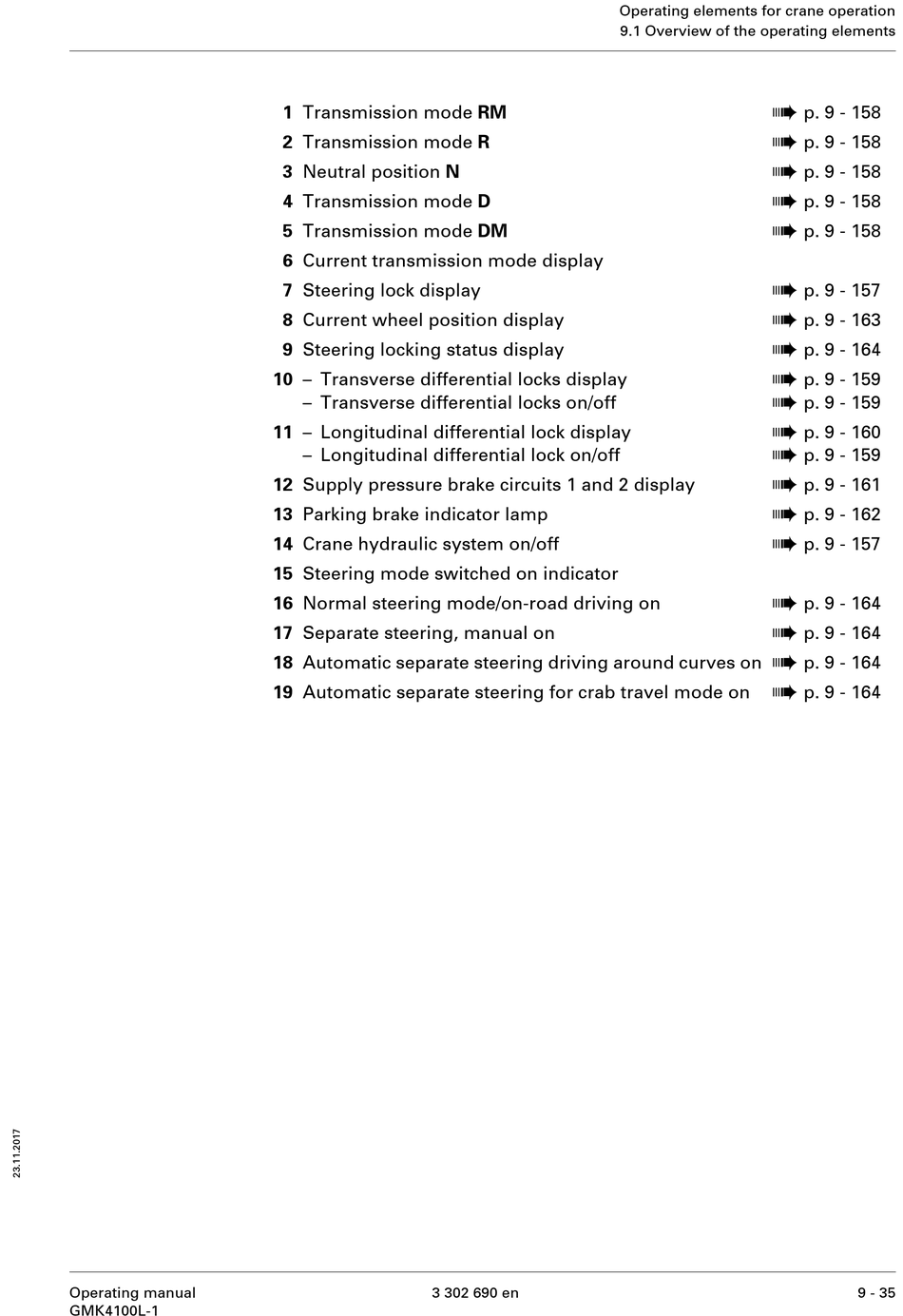

Manitowoc Grove GMK4100L-1 Operating Manual page 445

Operating manual
GMK4100L-1
1 Transmission mode RM
2 Transmission mode R
3 Neutral position N
4 Transmission mode D
5 Transmission mode DM
6 Current transmission mode display
7 Steering lock display
8 Current wheel position display
9 Steering locking status display
10 – Transverse differential locks display
– Transverse differential locks on/off
11 – Longitudinal differential lock display
– Longitudinal differential lock on/off
12 Supply pressure brake circuits 1 and 2 display
13 Parking brake indicator lamp
14 Crane hydraulic system on/off
15 Steering mode switched on indicator
16 Normal steering mode/on-road driving on
17 Separate steering, manual on
18 Automatic separate steering driving around curves on
19 Automatic separate steering for crab travel mode on
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
à
à
à
à
à
à
à
à
à
à
à
à
à
à
p. 9 - 158
p. 9 - 158
p. 9 - 158
p. 9 - 158
p. 9 - 158
p. 9 - 157
p. 9 - 163
p. 9 - 164
p. 9 - 159
p. 9 - 159
p. 9 - 160
p. 9 - 159
p. 9 - 161
p. 9 - 162
p. 9 - 157
p. 9 - 164
p. 9 - 164
p. 9 - 164
p. 9 - 164
9 - 35
