Crane operation
11.7 Working range limiter
11.7.4
Limit values
11 - 144

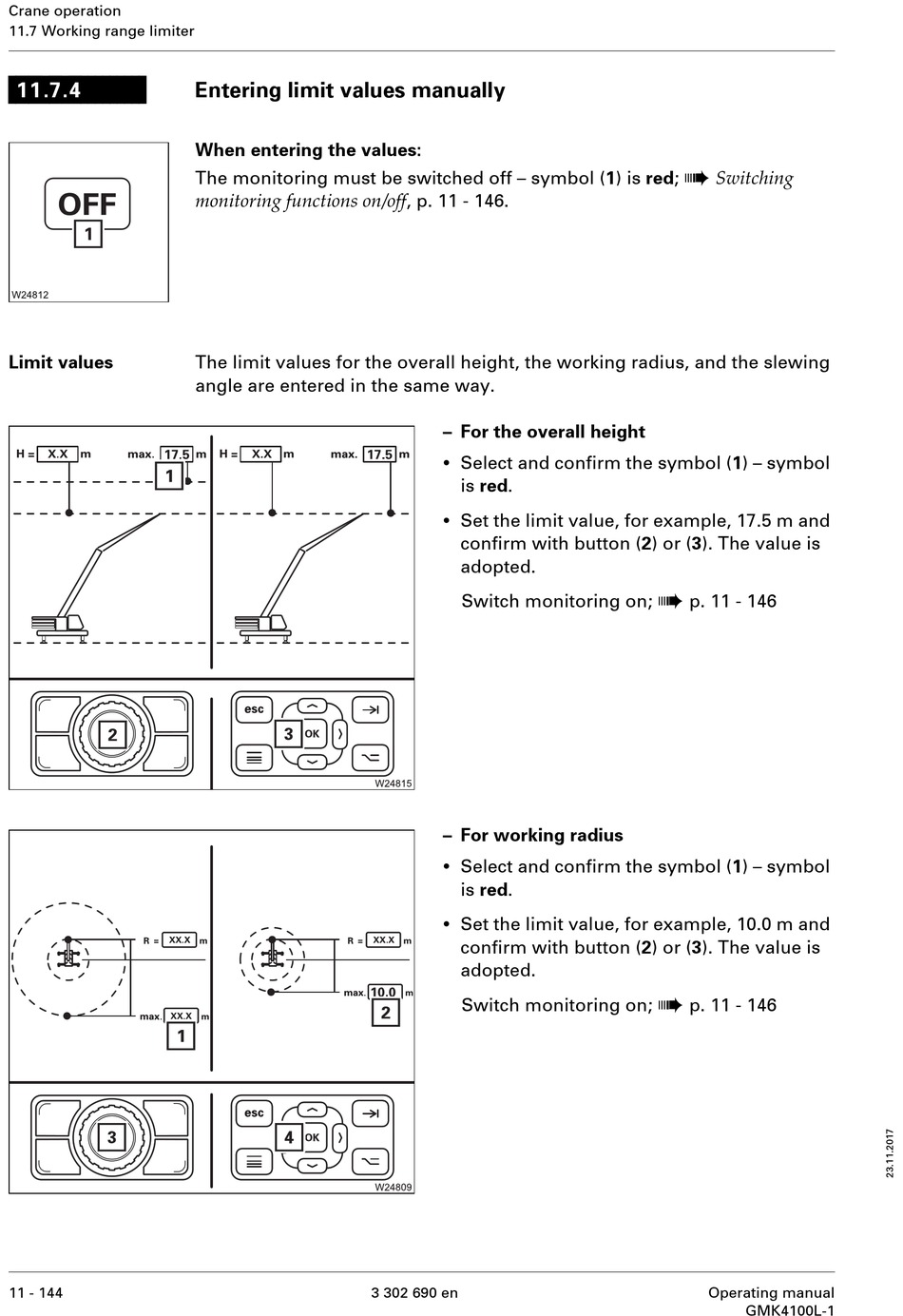

Entering limit values manually

When entering the values:
The monitoring must be switched off – symbol (1) is red;
monitoring functions on/off , p. 11 - 146.
The limit values for the overall height, the working radius, and the slewing
angle are entered in the same way.
– For the overall height
•
Select and confirm the symbol (1) – symbol
is red.
•
Set the limit value, for example, 17.5 m and
confirm with button (2) or (3). The value is
adopted.
Switch monitoring on;
– For working radius
•
Select and confirm the symbol (1) – symbol
is red.
•
Set the limit value, for example, 10.0 m and
confirm with button (2) or (3). The value is
adopted.
Switch monitoring on;
3 302 690 en
à
Switching
à
p. 11 - 146
à
p. 11 - 146
