Hook Block, Separable - Manitowoc Grove GMK4100L-1 Operating Manual

Rigging work
12.10 Rigging work on the main boom
12.10.3
Rigging for
on-road driving
12 - 104

Hook block, separable

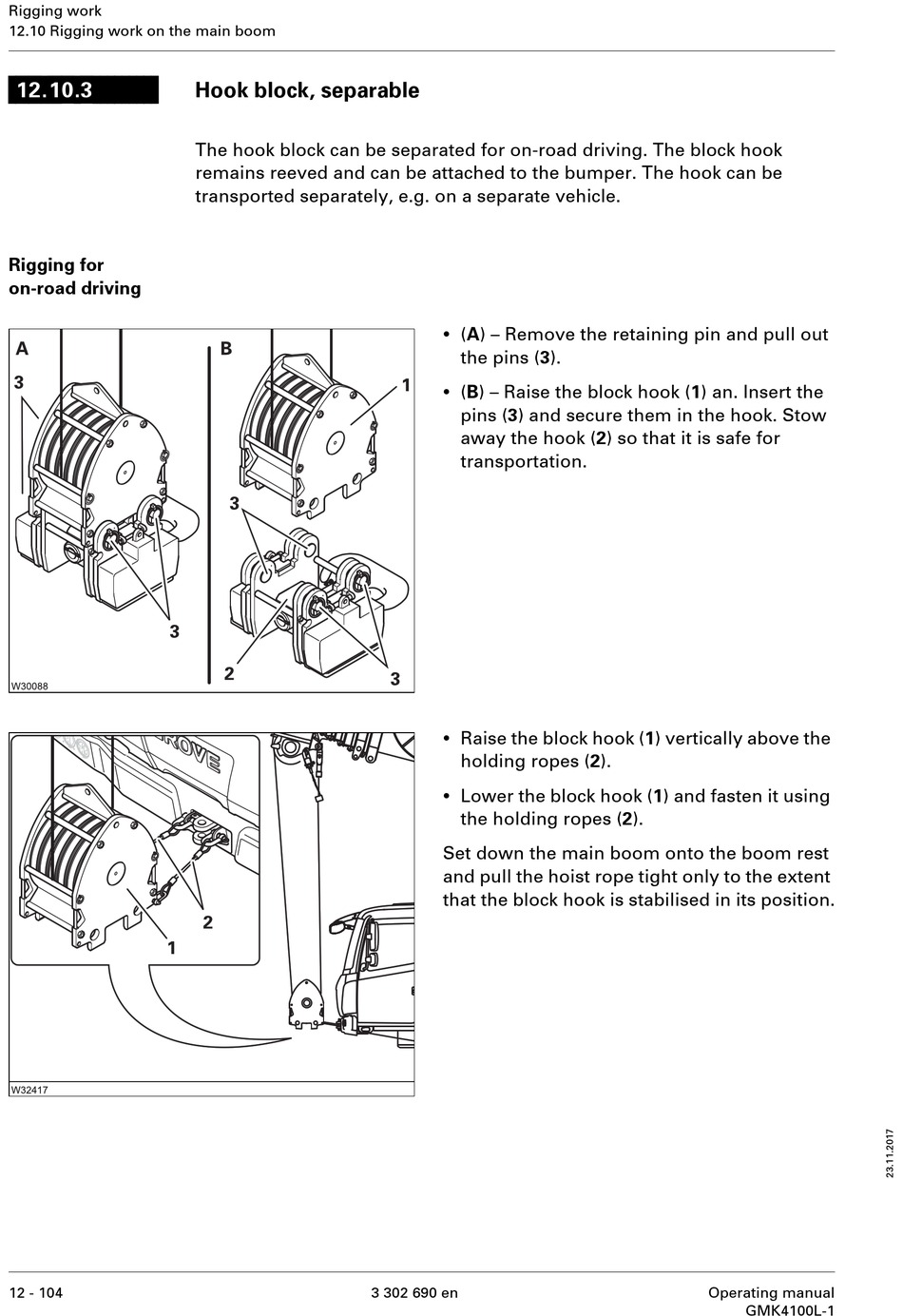

The hook block can be separated for on-road driving. The block hook
remains reeved and can be attached to the bumper. The hook can be
transported separately, e.g. on a separate vehicle.
•
(A) – Remove the retaining pin and pull out
the pins (3).
•
(B) – Raise the block hook (1) an. Insert the
pins (3) and secure them in the hook. Stow
away the hook (2) so that it is safe for
transportation.
•
Raise the block hook (1) vertically above the
holding ropes (2).
•
Lower the block hook (1) and fasten it using
the holding ropes (2).
Set down the main boom onto the boom rest
and pull the hoist rope tight only to the extent
that the block hook is stabilised in its position.
