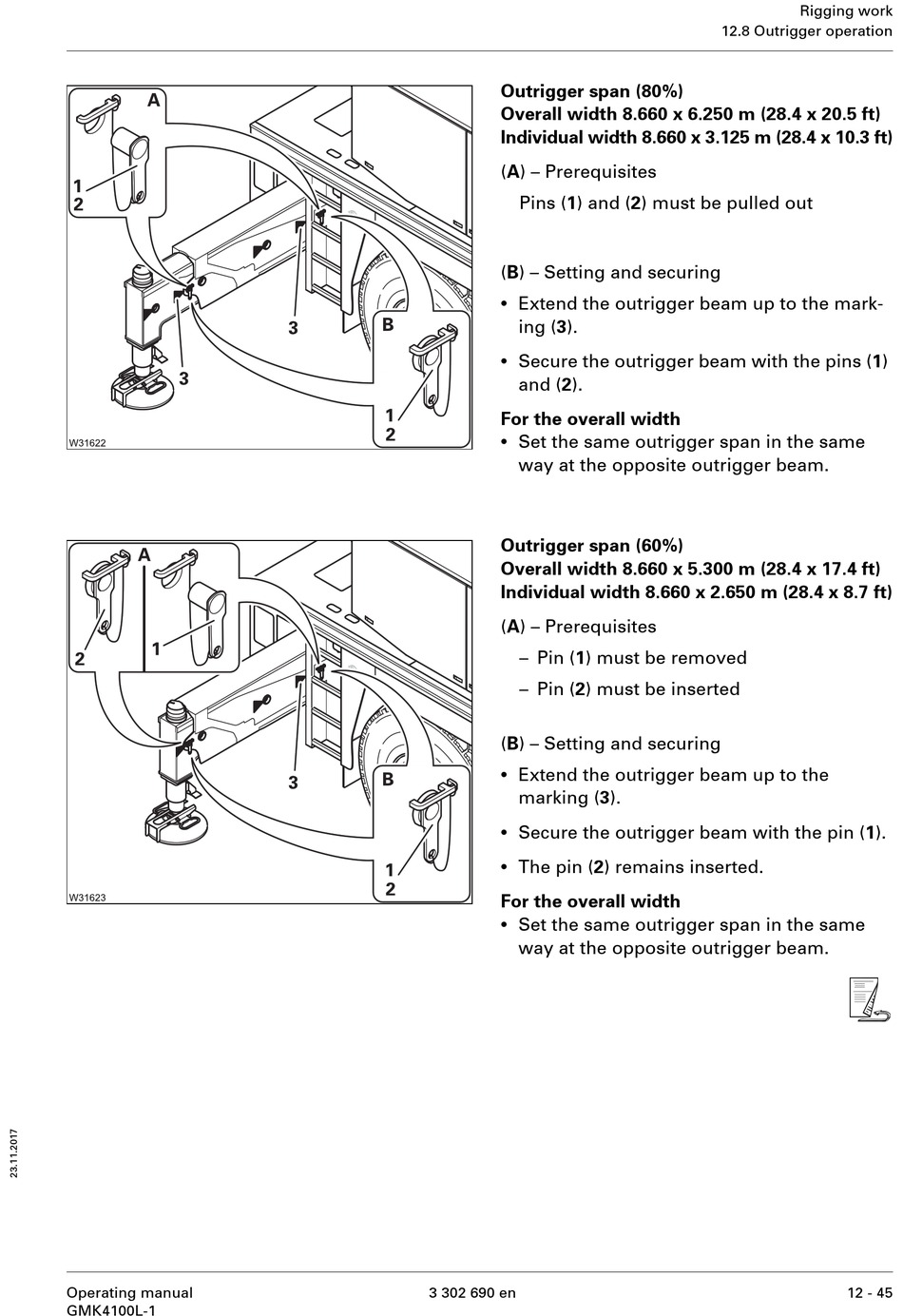

Operating manual
GMK4100L-1
Outrigger span (80%)
Overall width 8.660 x 6.250 m (28.4 x 20.5 ft)
Individual width 8.660 x 3.125 m (28.4 x 10.3 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
Extend the outrigger beam up to the mark-
ing (3).
Secure the outrigger beam with the pins (1)
and (2).
For the overall width
Set the same outrigger span in the same
way at the opposite outrigger beam.
Outrigger span (60%)
Overall width 8.660 x 5.300 m (28.4 x 17.4 ft)
Individual width 8.660 x 2.650 m (28.4 x 8.7 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
Extend the outrigger beam up to the
marking (3).
Secure the outrigger beam with the pin (1).
The pin (2) remains inserted.
For the overall width
Set the same outrigger span in the same
way at the opposite outrigger beam.
3 302 690 en
Rigging work
12.8 Outrigger operation
