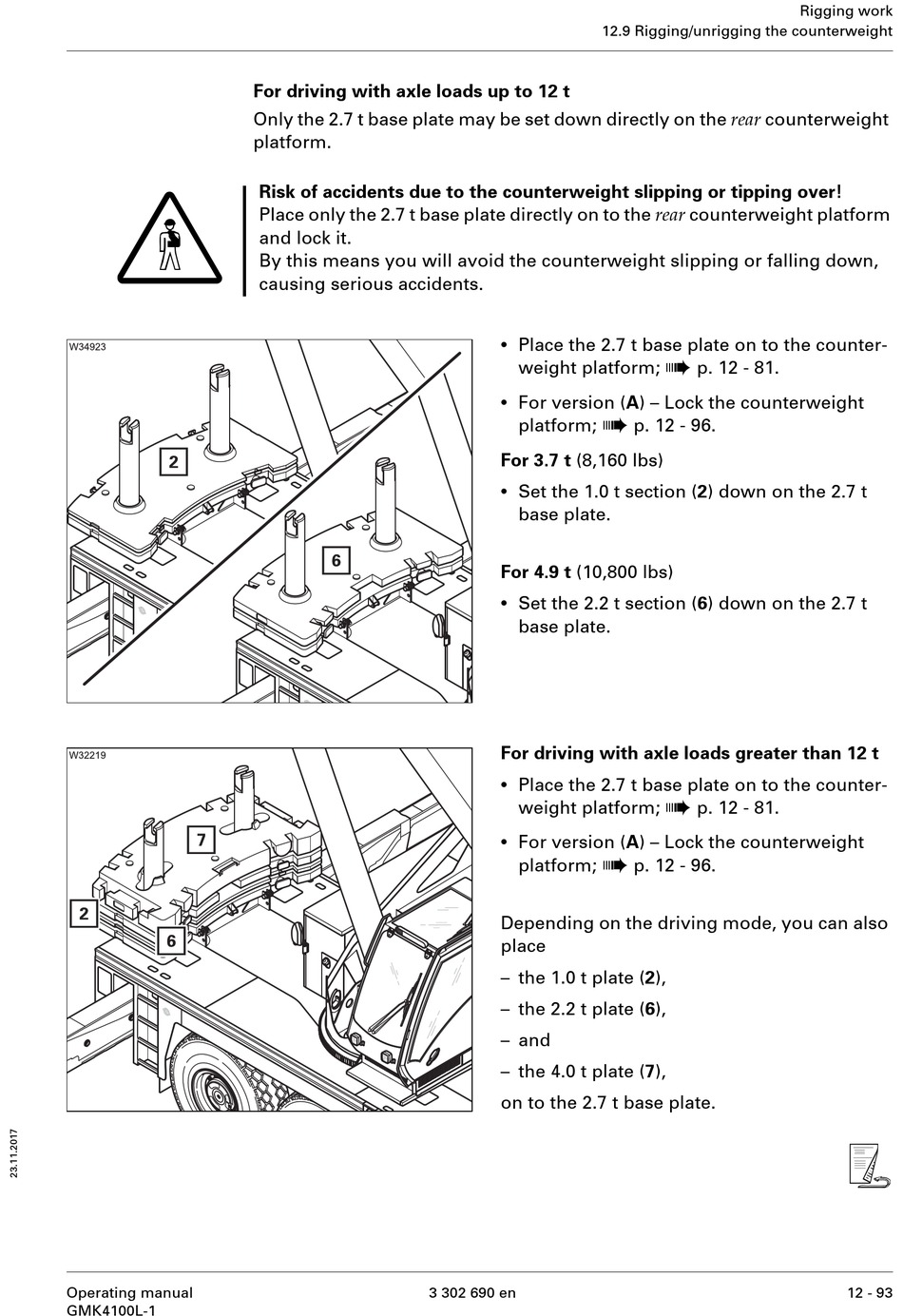

For driving with axle loads up to 12 t
Only the 2.7 t base plate may be set down directly on the rear counterweight
platform.
Risk of accidents due to the counterweight slipping or tipping over!
Place only the 2.7 t base plate directly on to the rear counterweight platform
and lock it.
By this means you will avoid the counterweight slipping or falling down,
causing serious accidents.
•
Place the 2.7 t base plate on to the counter-
weight platform;
•
For version (A) – Lock the counterweight
platform;
For 3.7 t (8,160 lbs)
•
Set the 1.0 t section (2) down on the 2.7 t
base plate.
For 4.9 t (10,800 lbs)
•
Set the 2.2 t section (6) down on the 2.7 t
base plate.
For driving with axle loads greater than 12 t
•
Place the 2.7 t base plate on to the counter-
weight platform;
•
For version (A) – Lock the counterweight
platform;
Depending on the driving mode, you can also
place
– the 1.0 t plate (2),
– the 2.2 t plate (6),
– and
– the 4.0 t plate (7),
on to the 2.7 t base plate.
3 302 690 en
12.9 Rigging/unrigging the counterweight
à
p. 12 - 81.
à
p. 12 - 96.
à
p. 12 - 81.
à
p. 12 - 96.
