6.4.9
Slewing direction
G
G
Slewing indicator
Operating manual
GMK4100L-1

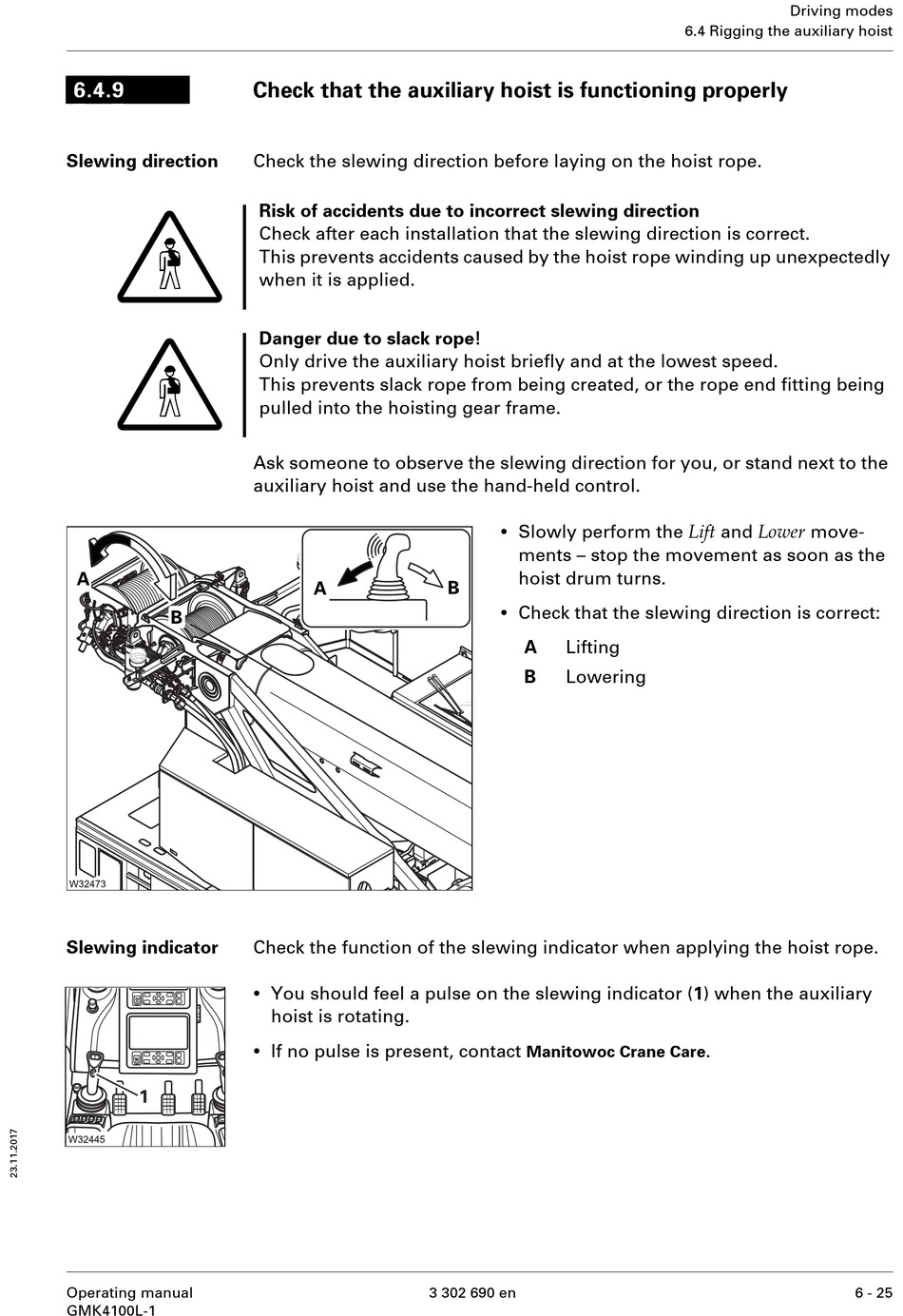

Check that the auxiliary hoist is functioning properly

Check the slewing direction before laying on the hoist rope.
Risk of accidents due to incorrect slewing direction
Check after each installation that the slewing direction is correct.
This prevents accidents caused by the hoist rope winding up unexpectedly
when it is applied.
Danger due to slack rope!
Only drive the auxiliary hoist briefly and at the lowest speed.
This prevents slack rope from being created, or the rope end fitting being
pulled into the hoisting gear frame.
Ask someone to observe the slewing direction for you, or stand next to the
auxiliary hoist and use the hand-held control.
Check the function of the slewing indicator when applying the hoist rope.
•
You should feel a pulse on the slewing indicator (1) when the auxiliary
hoist is rotating.
•
If no pulse is present, contact
•
Slowly perform the Lift and Lower move-
ments – stop the movement as soon as the
hoist drum turns.
•
Check that the slewing direction is correct:
A Lifting
B Lowering
Manitowoc Crane Care
3 302 690 en
Driving modes
6.4 Rigging the auxiliary hoist
.
6 - 25
