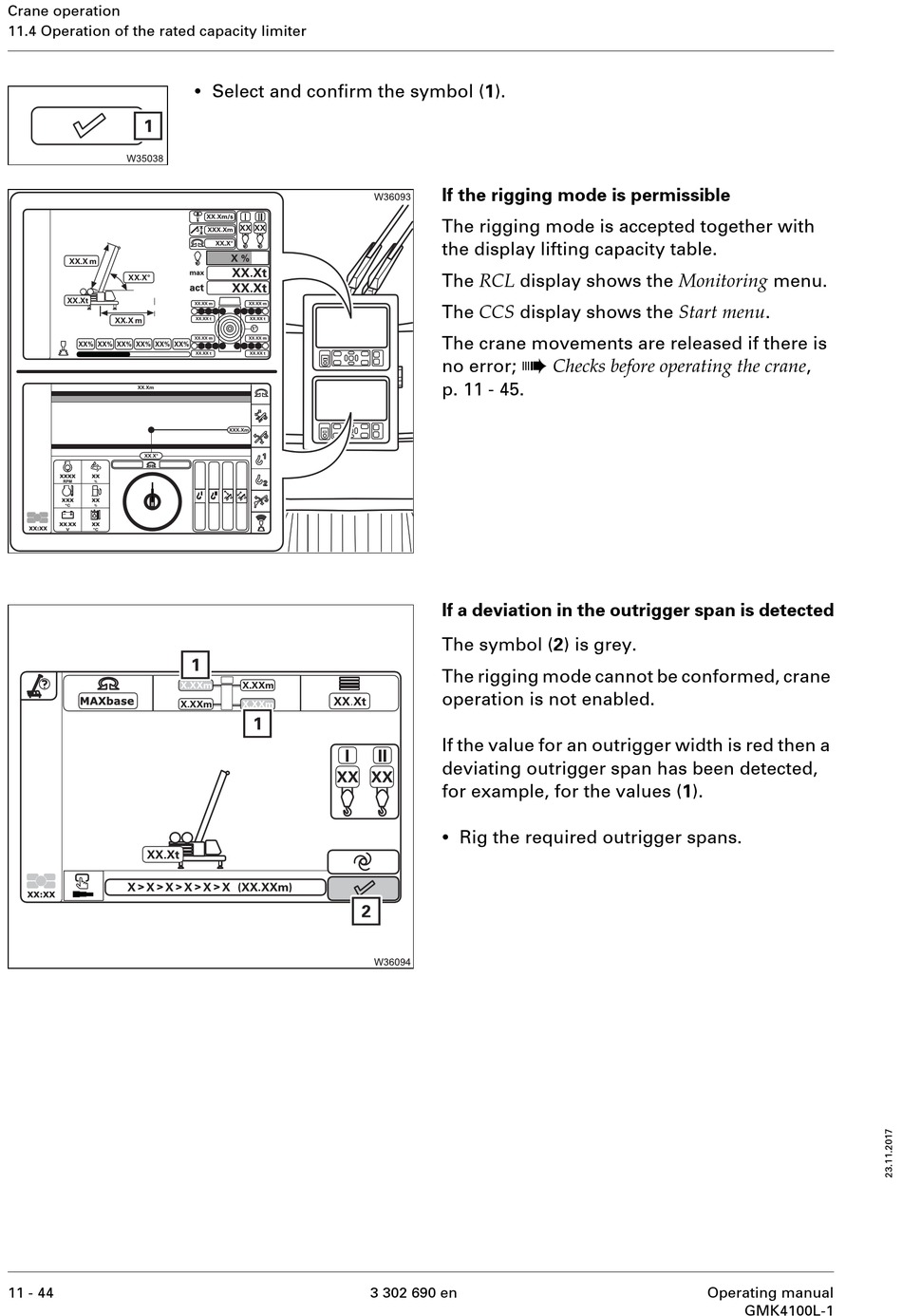

Manitowoc Grove GMK4100L-1 Operating Manual page 632

Crane operation
11.4 Operation of the rated capacity limiter
11 - 44
•
Select and confirm the symbol (1).
If the rigging mode is permissible
The rigging mode is accepted together with
the display lifting capacity table.
The RCL display shows the Monitoring menu.
The CCS display shows the Start menu .
The crane movements are released if there is
à
no error;
p. 11 - 45.
If a deviation in the outrigger span is detected
The symbol (2) is grey.
The rigging mode cannot be conformed, crane
operation is not enabled.
If the value for an outrigger width is red then a
deviating outrigger span has been detected,
for example, for the values (1).
•
Rig the required outrigger spans.
3 302 690 en
Checks before operating the crane ,
Operating manual
GMK4100L-1
