5.1.3
Adjusting the
driver's seat
Operating manual
GMK4100L-1

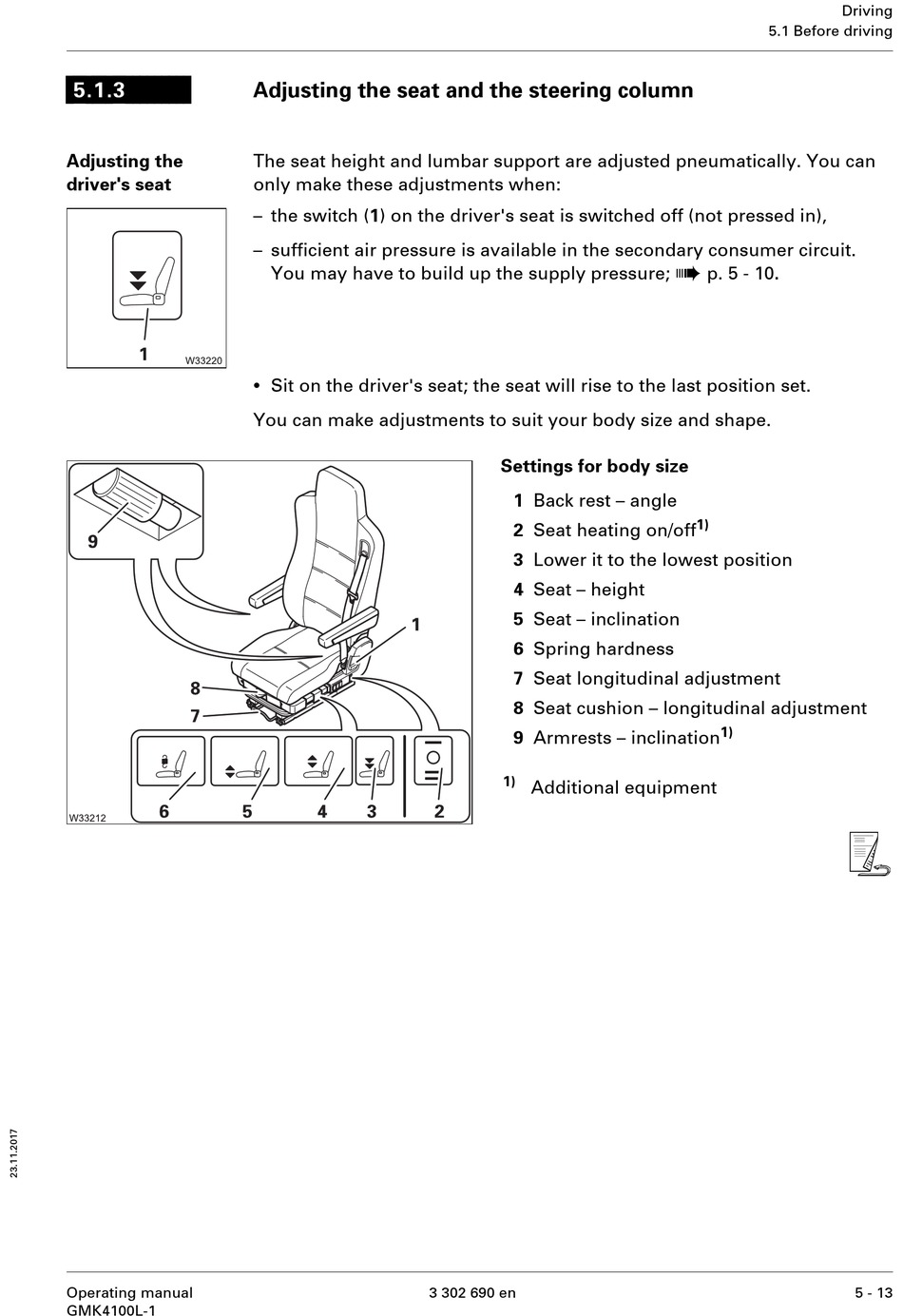

Adjusting the seat and the steering column

The seat height and lumbar support are adjusted pneumatically. You can
only make these adjustments when:
– the switch (1) on the driver's seat is switched off (not pressed in),
– sufficient air pressure is available in the secondary consumer circuit.
You may have to build up the supply pressure;
•
Sit on the driver's seat; the seat will rise to the last position set.
You can make adjustments to suit your body size and shape.
Settings for body size
1 Back rest – angle
2 Seat heating on/off
3 Lower it to the lowest position
4 Seat – height
5 Seat – inclination
6 Spring hardness
7 Seat longitudinal adjustment
8 Seat cushion – longitudinal adjustment
9 Armrests – inclination
1)
Additional equipment
3 302 690 en
Driving
5.1 Before driving
à
p. 5 - 10.
1)
1)
s
5 - 13
