Driving modes
6.4 Rigging the auxiliary hoist
6.4.6
6 - 22

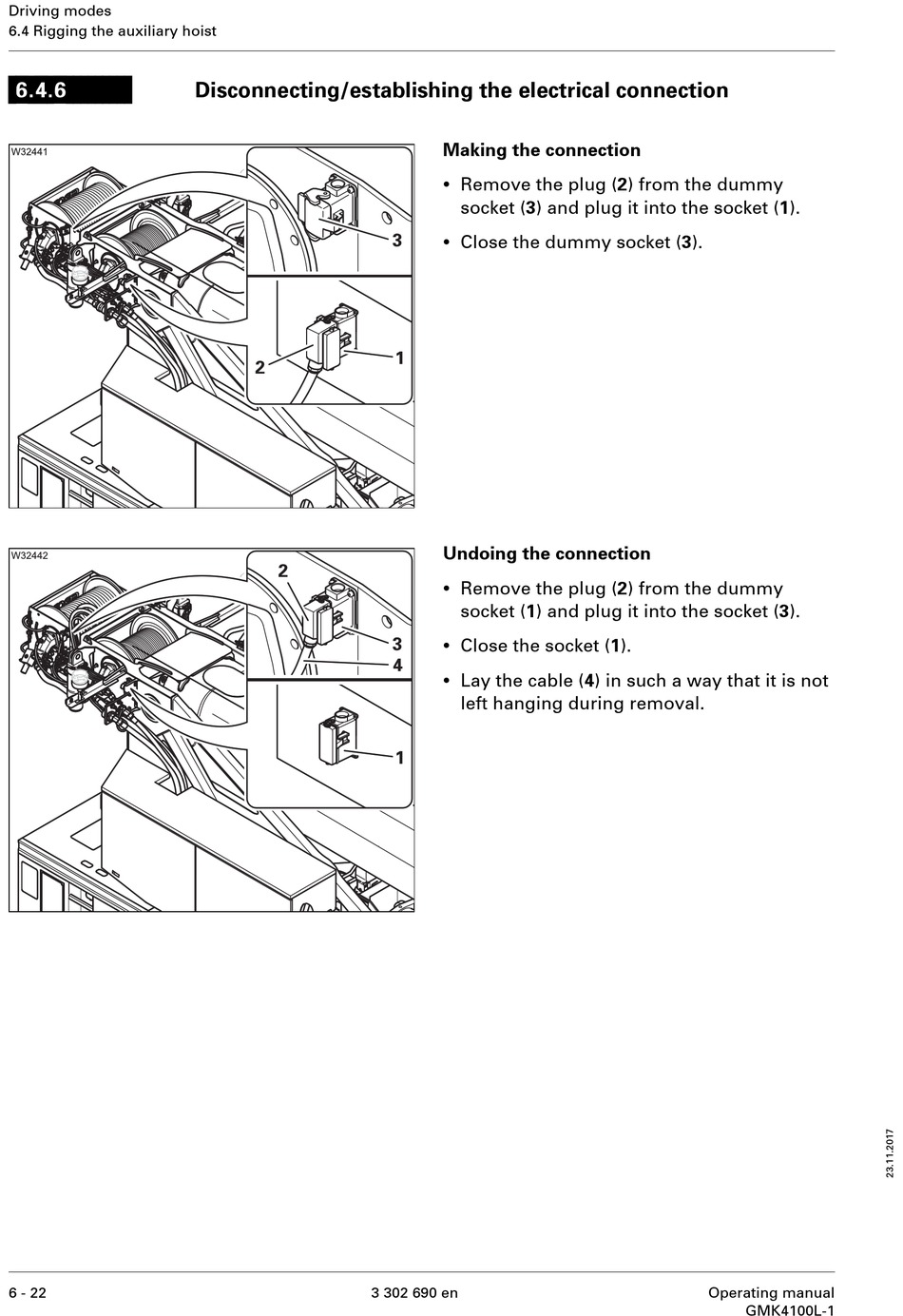

Disconnecting/establishing the electrical connection

Making the connection
•
Remove the plug (2) from the dummy
socket (3) and plug it into the socket (1).
•
Close the dummy socket (3).
Undoing the connection
•
Remove the plug (2) from the dummy
socket (1) and plug it into the socket (3).
•
Close the socket (1).
•
Lay the cable (4) in such a way that it is not
left hanging during removal.
3 302 690 en Operating manual
GMK4100L-1
