Rigging work
12.9 Rigging/unrigging the counterweight
12.9.5
H
G
12 - 76

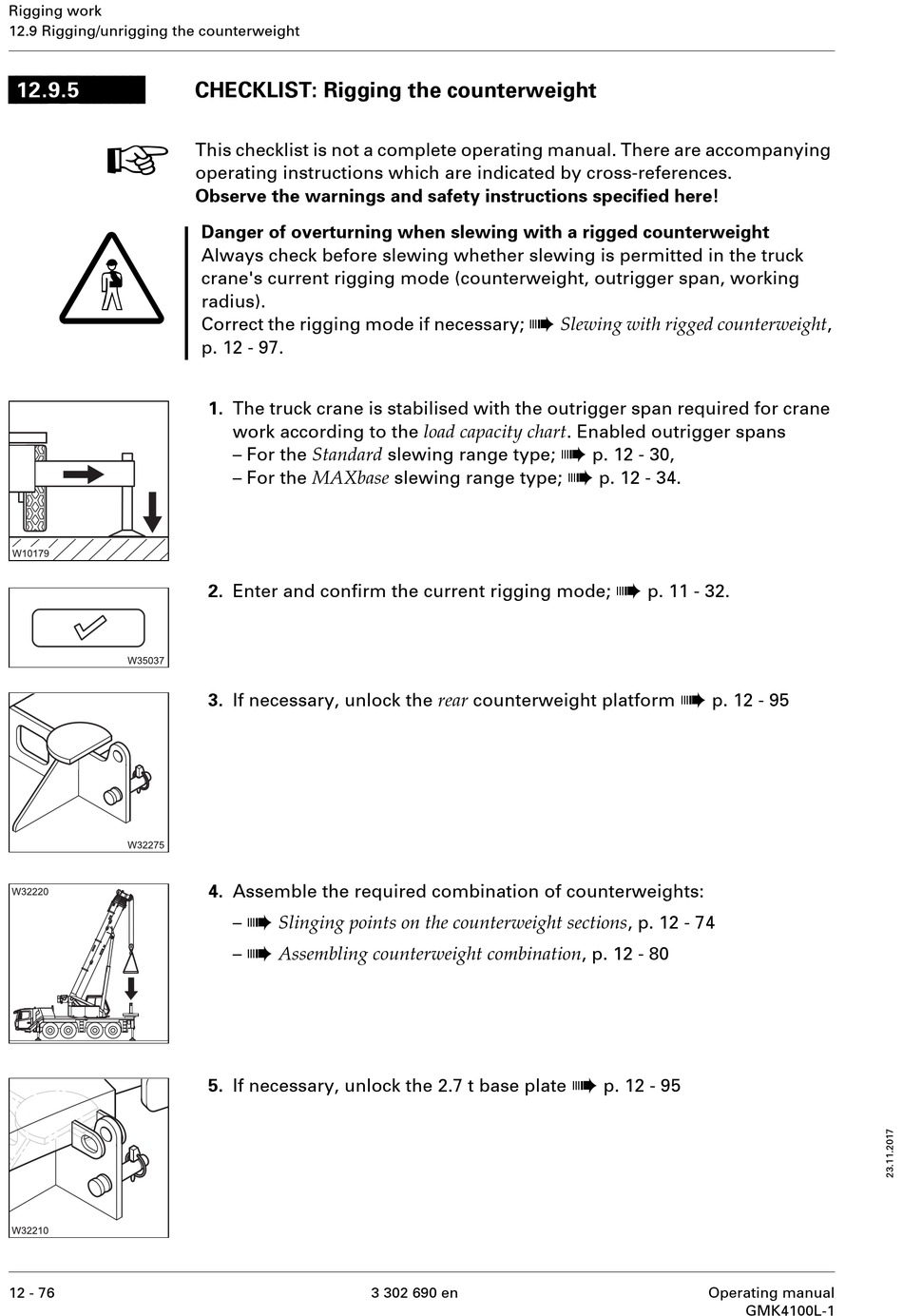

CHECKLIST: Rigging the counterweight

This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
Danger of overturning when slewing with a rigged counterweight
Always check before slewing whether slewing is permitted in the truck
crane's current rigging mode (counterweight, outrigger span, working
radius).
Correct the rigging mode if necessary;
p. 12 - 97.
1. The truck crane is stabilised with the outrigger span required for crane
work according to the load capacity chart . Enabled outrigger spans
– For the Standard slewing range type;
– For the MAXbase slewing range type;
2. Enter and confirm the current rigging mode;
3. If necessary, unlock the rear counterweight platform
4. Assemble the required combination of counterweights:
à
Slinging points on the counterweight sections , p. 12 - 74
à
Assembling counterweight combination , p. 12 - 80
5. If necessary, unlock the 2.7 t base plate
à
3 302 690 en
Slewing with rigged counterweight ,
à
p. 12 - 30,
à
p. 12 - 34.
à
p. 11 - 32.
à
p. 12 - 95
à
p. 12 - 95
Operating manual
GMK4100L-1
