Operating elements for crane operation

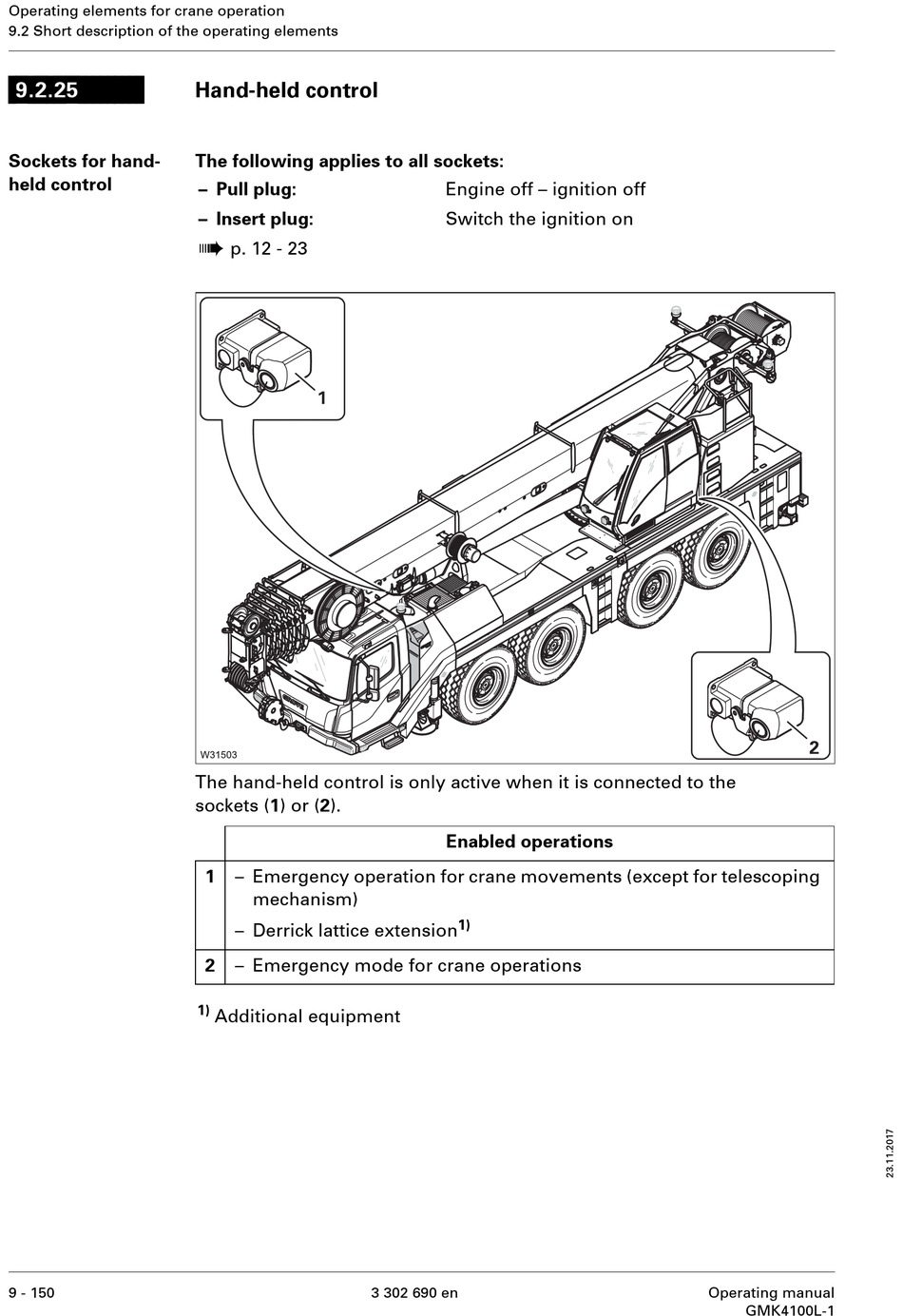

9.2 Short description of the operating elements
9.2.25
Sockets for hand-
held control
9 - 150

Hand-held control

The following applies to all sockets:
– Pull plug:
– Insert plug:
à
p. 12 - 23
The hand-held control is only active when it is connected to the
sockets (1) or (2).
1 – Emergency operation for crane movements (except for telescoping
mechanism)
– Derrick lattice extension
2 – Emergency mode for crane operations
1)
Additional equipment
Engine off – ignition off
Switch the ignition on
Enabled operations
1)
3 302 690 en Operating manual
GMK4100L-1
