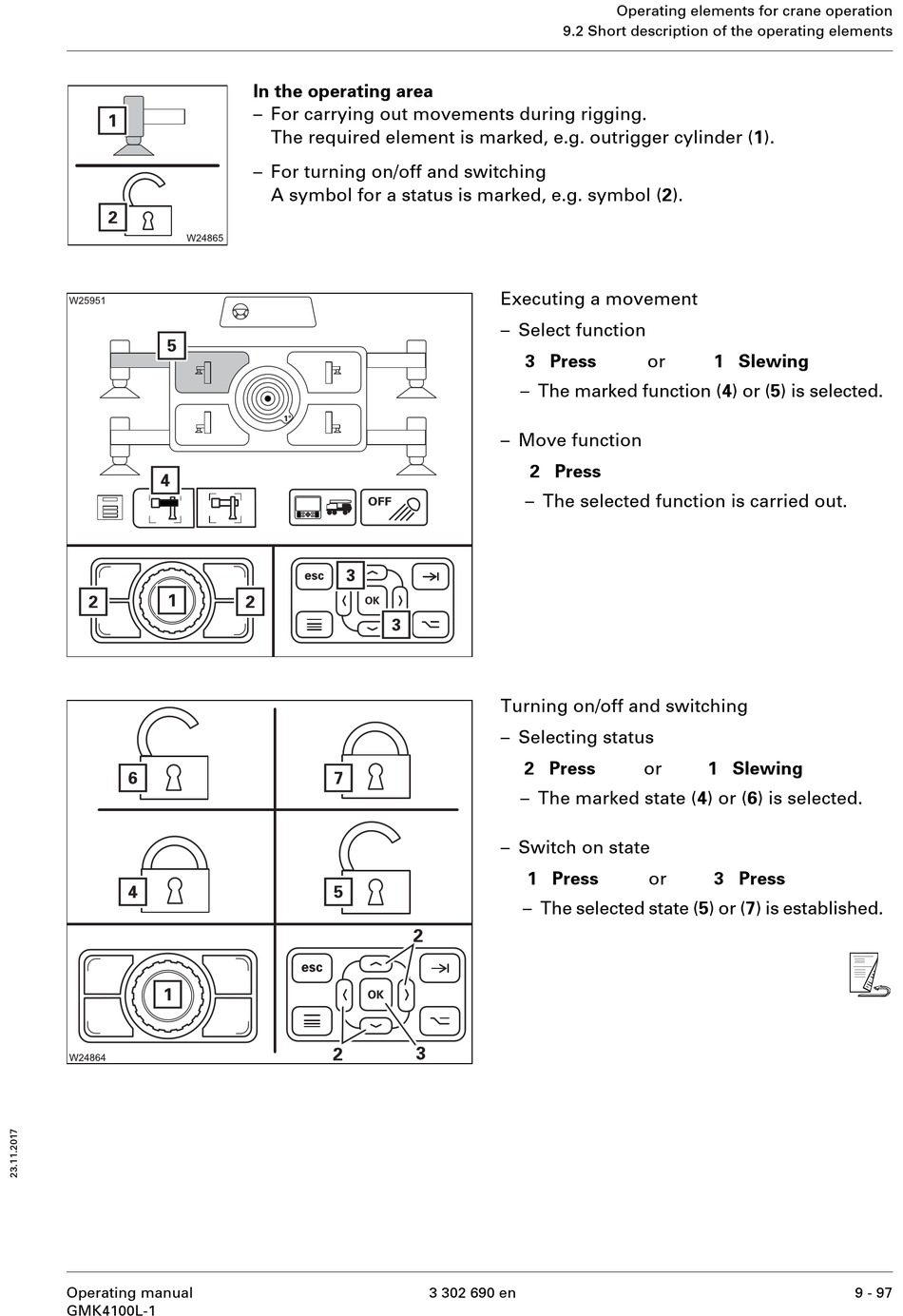

In the operating area
– For carrying out movements during rigging.
The required element is marked, e.g. outrigger cylinder (1).
– For turning on/off and switching
A symbol for a status is marked, e.g. symbol (2).
9.2 Short description of the operating elements
Executing a movement
– Select function
3 Press
– The marked function (4) or (5) is selected.
– Move function
2 Press
– The selected function is carried out.
Turning on/off and switching
– Selecting status
2 Press
– The marked state (4) or (6) is selected.
– Switch on state
1 Press
– The selected state (5) or (7) is established.
