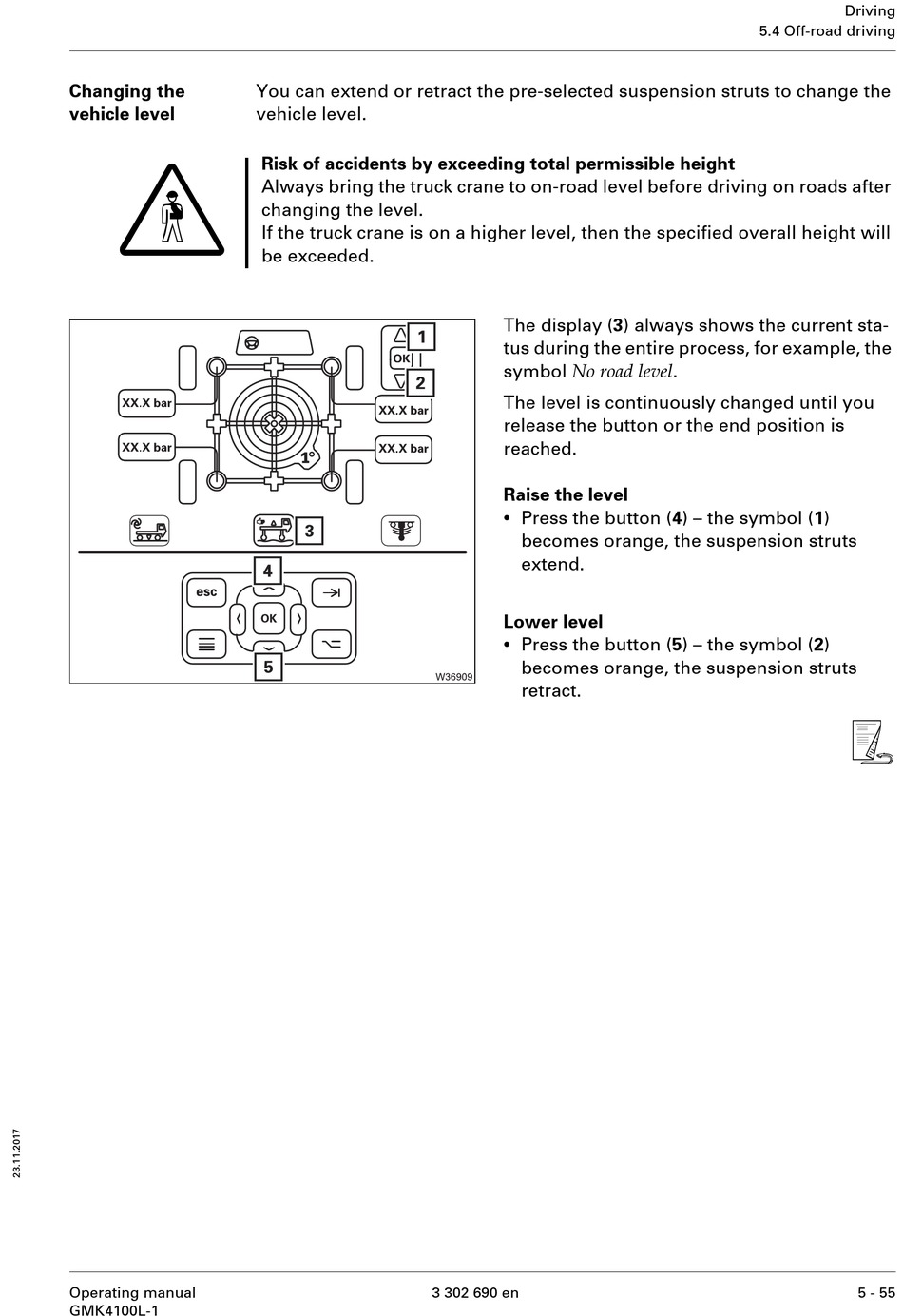

Changing the
vehicle level
G
Operating manual
GMK4100L-1
You can extend or retract the pre-selected suspension struts to change the
vehicle level.
Risk of accidents by exceeding total permissible height
Always bring the truck crane to on-road level before driving on roads after
changing the level.
If the truck crane is on a higher level, then the specified overall height will
be exceeded.
The display (3) always shows the current sta-
tus during the entire process, for example, the
symbol No road level .
The level is continuously changed until you
release the button or the end position is
reached.
Raise the level
•
Press the button (4) – the symbol (1)
becomes orange, the suspension struts
extend.
Lower level
•
Press the button (5) – the symbol (2)
becomes orange, the suspension struts
retract.
