Cancel automatic
mode
S
Operating manual
GMK4100L-1
You can cancel the automatic mode any time.
•
Press the override button (1) in at the top– the automatic mode is can-
celled.
Risk of damage to the counterweight
With the override switch actuated, the functions are always enabled.
Slew the superstructure only when the lifting cylinders are fully retracted.
•

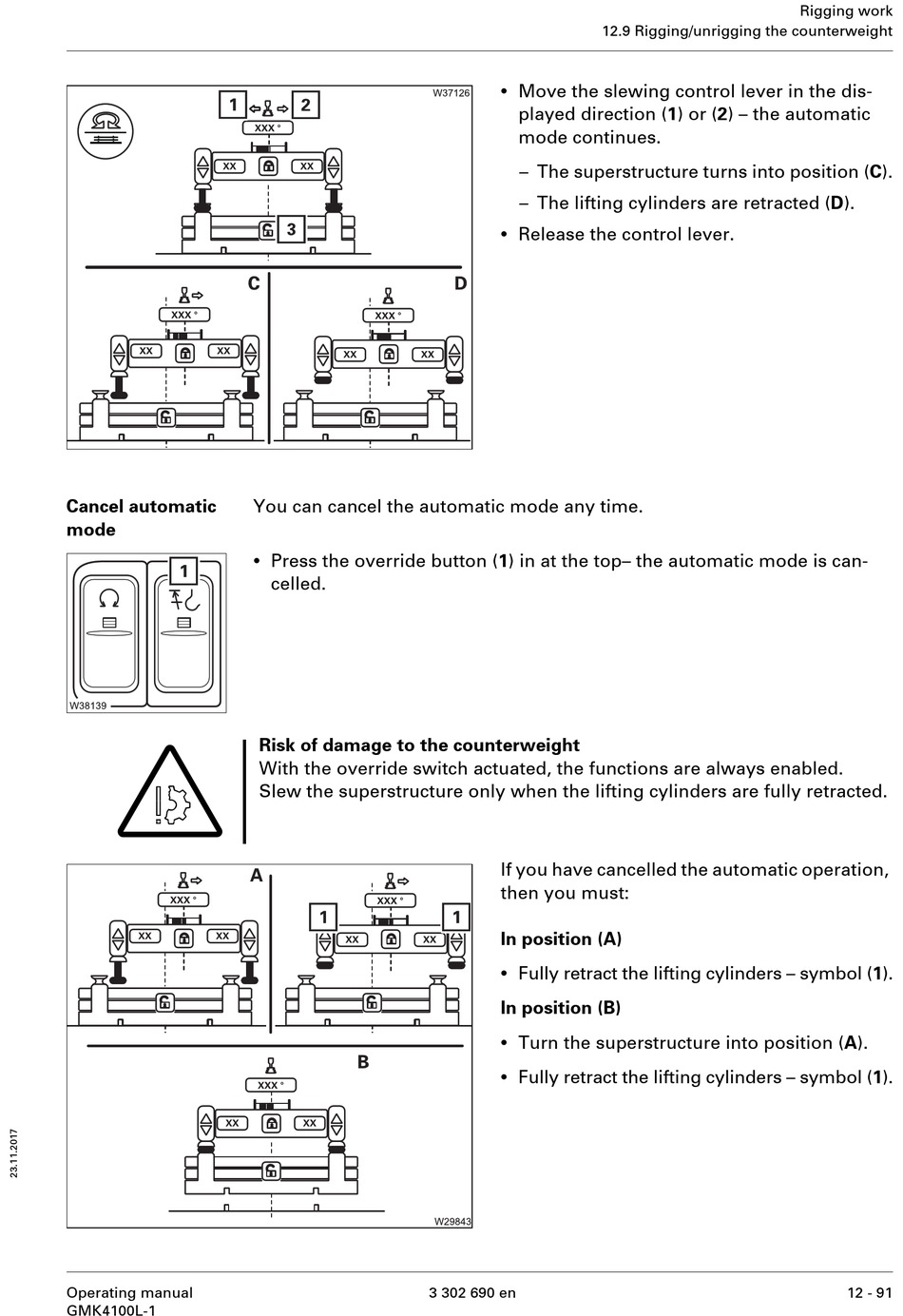

Move the slewing control lever in the dis-
played direction (1) or (2) – the automatic
mode continues.
– The superstructure turns into position (C).
– The lifting cylinders are retracted (D).
•
Release the control lever.
If you have cancelled the automatic operation,
then you must:
In position (A)
•
Fully retract the lifting cylinders – symbol (1).
In position (B)
•
Turn the superstructure into position (A).
•
Fully retract the lifting cylinders – symbol (1).
3 302 690 en
12.9 Rigging/unrigging the counterweight
Rigging work
12 - 91
