Operating elements for crane operation
9.1 Overview of the operating elements

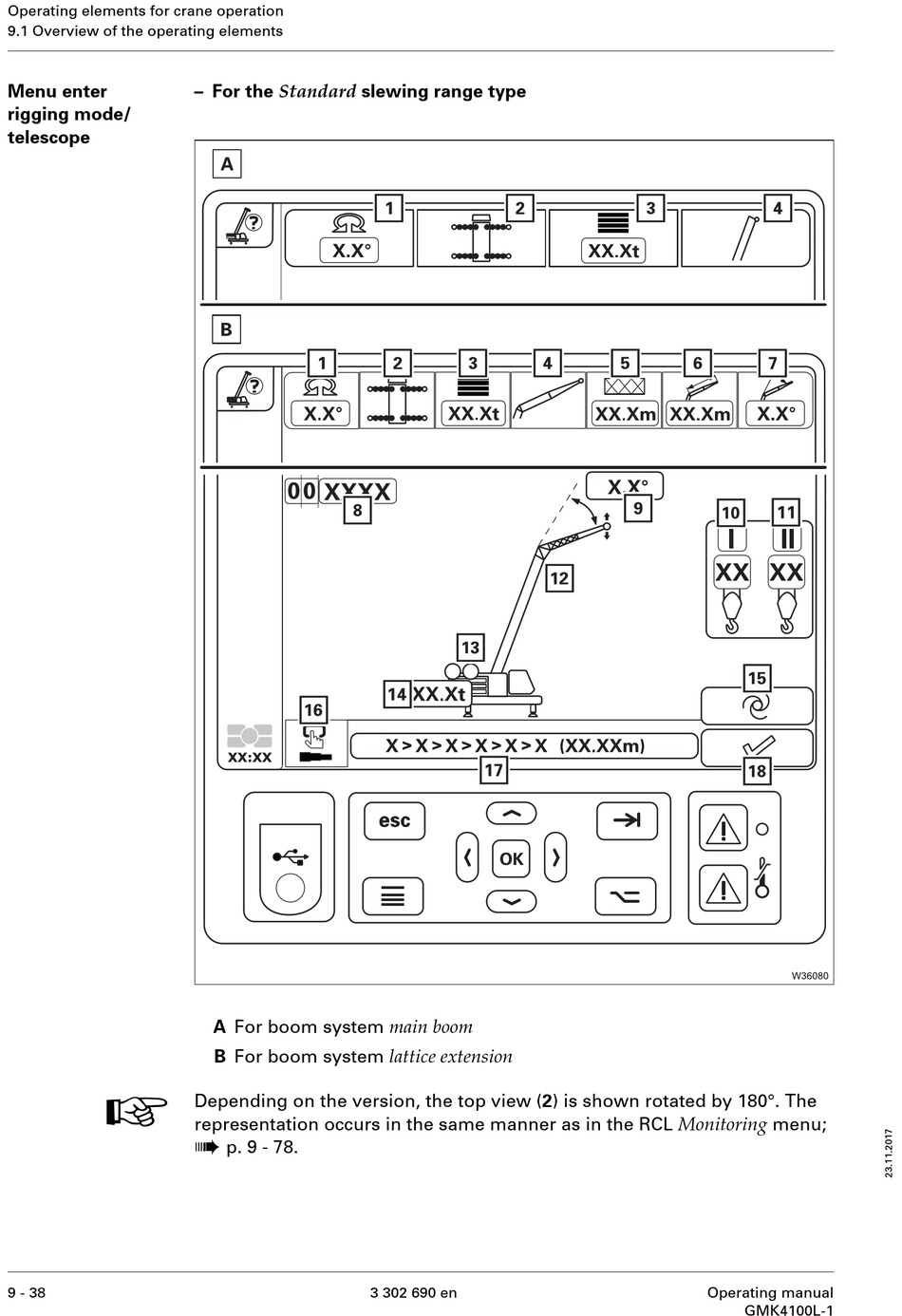

Menu enter
rigging mode/
telescope
H
9 - 38
– For the Standard slewing range type
A For boom system main boom
B For boom system lattice extension
Depending on the version, the top view (2) is shown rotated by 180°. The
representation occurs in the same manner as in the RCL Monitoring menu;
à
p. 9 - 78.
3 302 690 en Operating manual
GMK4100L-1
