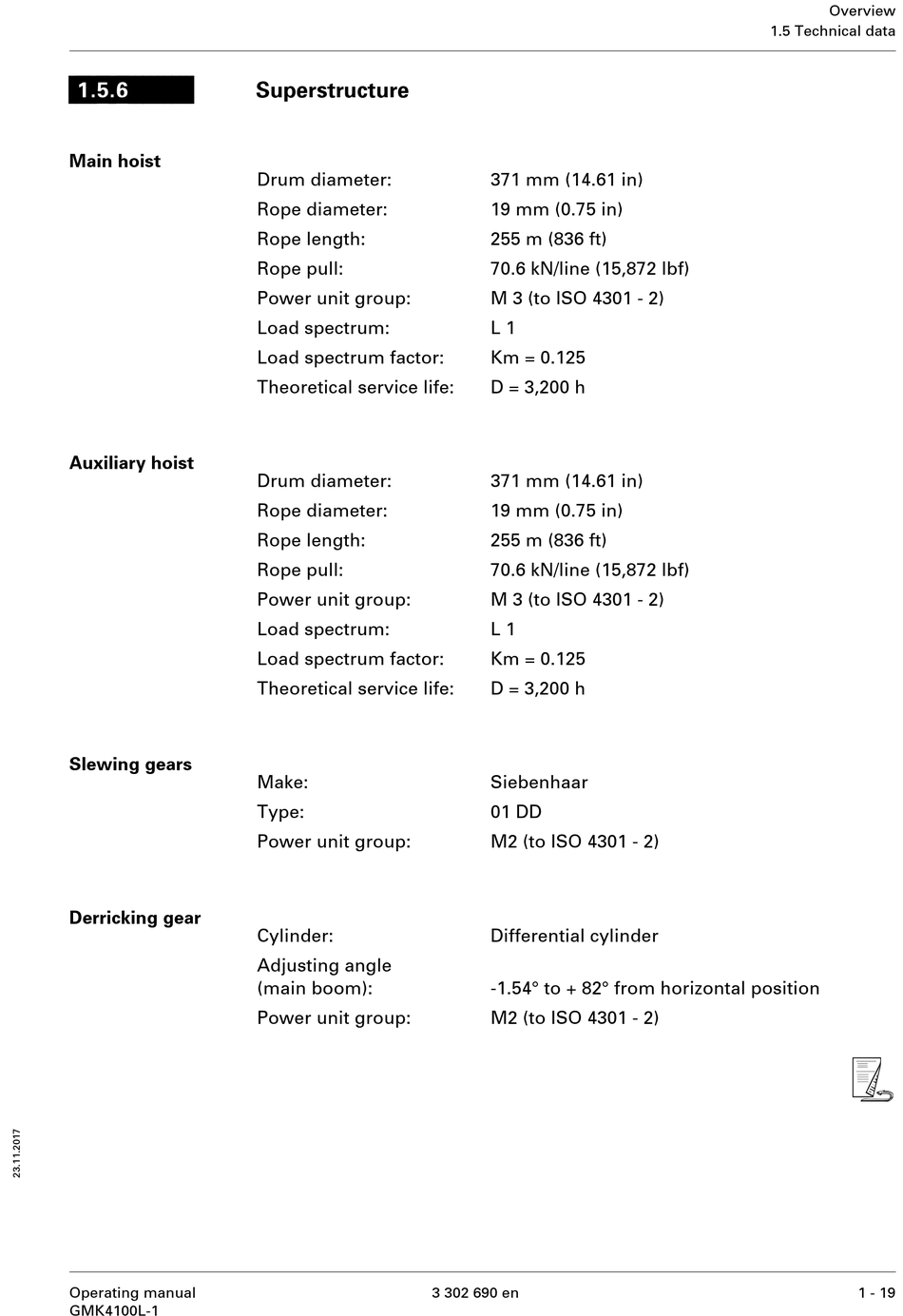

1.5.6
Main hoist
Auxiliary hoist
Slewing gears
Derricking gear
Operating manual
GMK4100L-1

Superstructure

Drum diameter:
Rope diameter:
Rope length:
Rope pull:
Power unit group:
Load spectrum:
Load spectrum factor:
Theoretical service life:
Drum diameter:
Rope diameter:
Rope length:
Rope pull:
Power unit group:
Load spectrum:
Load spectrum factor:
Theoretical service life:
Make:
Type:
Power unit group:
Cylinder:
Adjusting angle
(main boom):
Power unit group:
371 mm (14.61 in)
19 mm (0.75 in)
255 m (836 ft)
70.6 kN/line (15,872 lbf)
M 3 (to ISO 4301 - 2)
L 1
Km = 0.125
D = 3,200 h
371 mm (14.61 in)
19 mm (0.75 in)
255 m (836 ft)
70.6 kN/line (15,872 lbf)
M 3 (to ISO 4301 - 2)
L 1
Km = 0.125
D = 3,200 h
Siebenhaar
01 DD
M2 (to ISO 4301 - 2)
Differential cylinder
-1.54° to + 82° from horizontal position
M2 (to ISO 4301 - 2)
