Operating manual
GMK4100L-1

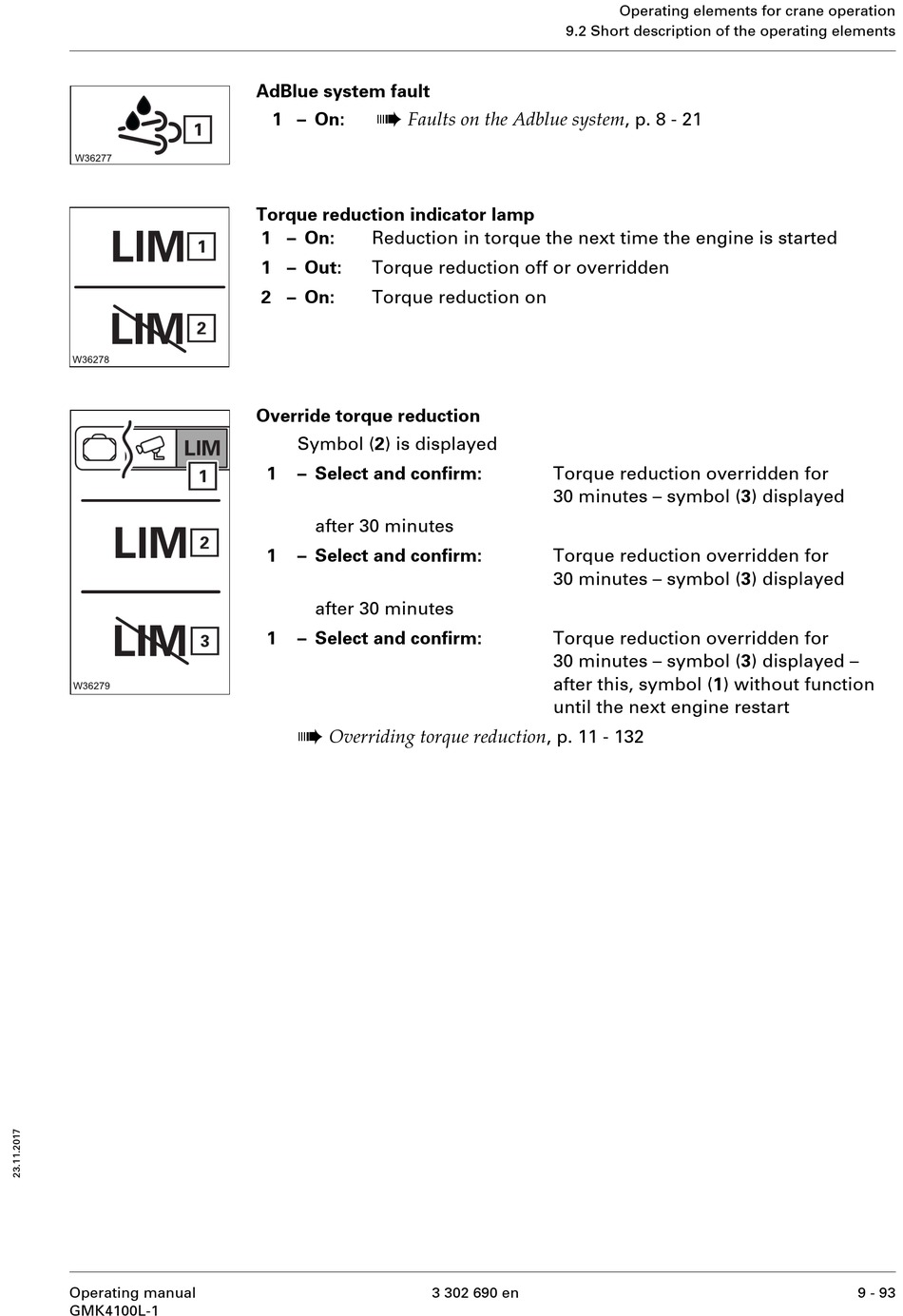

AdBlue system fault
à
Faults on the Adblue system , p. 8 - 21
1 – On:
Torque reduction indicator lamp
1 – On: Reduction in torque the next time the engine is started
1 – Out: Torque reduction off or overridden
2 – On: Torque reduction on
Override torque reduction
Symbol (2) is displayed
1 – Select and confirm:
after 30 minutes
1 – Select and confirm:
after 30 minutes
1 – Select and confirm:
à
Overriding torque reduction , p. 11 - 132
9.2 Short description of the operating elements
Torque reduction overridden for
30 minutes – symbol (3) displayed
Torque reduction overridden for
30 minutes – symbol (3) displayed
Torque reduction overridden for
30 minutes – symbol (3) displayed –
after this, symbol (1) without function
until the next engine restart
3 302 690 en
Operating elements for crane operation
9 - 93
