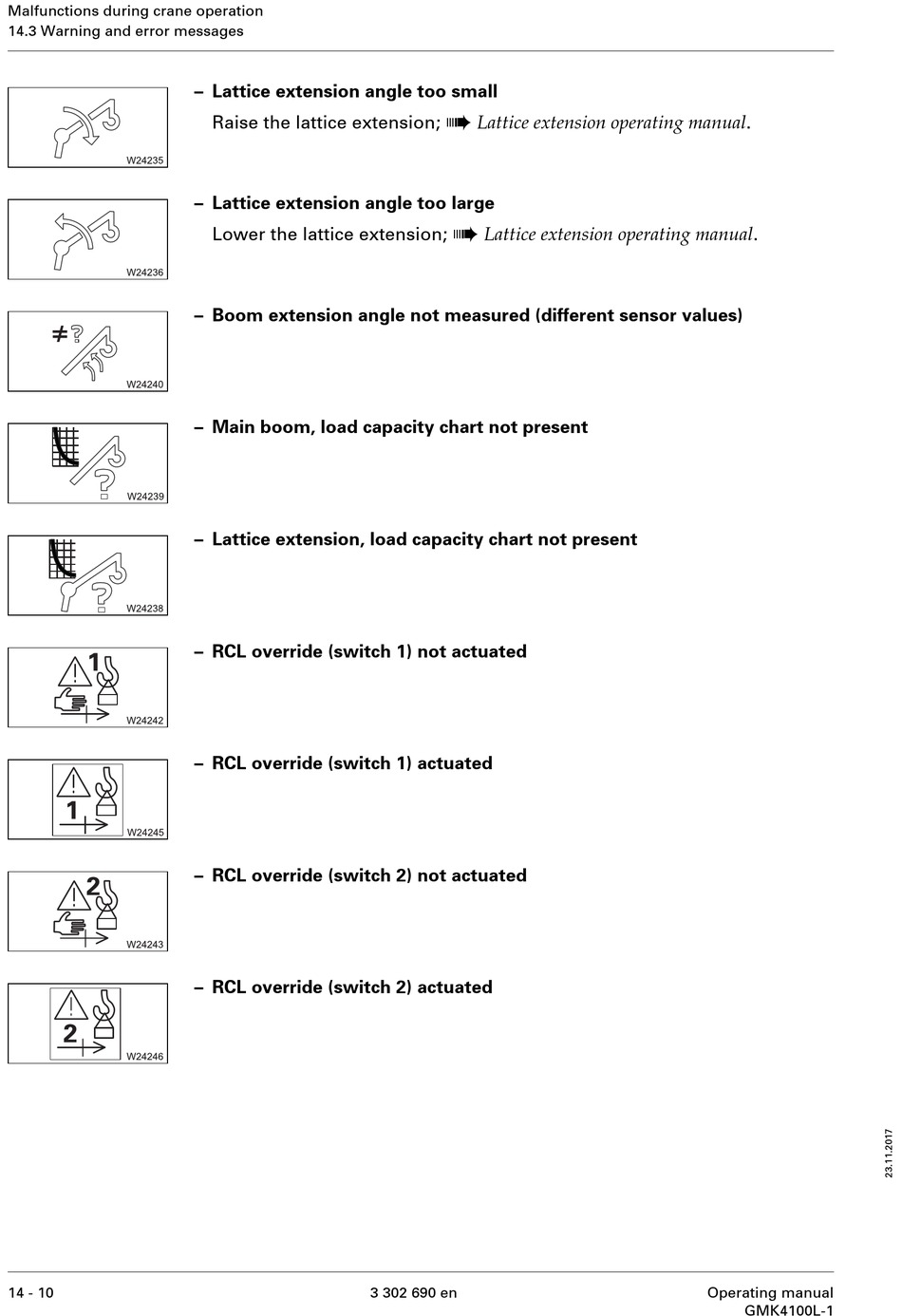

Malfunctions during crane operation
14.3 Warning and error messages
14 - 10
– Lattice extension angle too small
Raise the lattice extension;
– Lattice extension angle too large
Lower the lattice extension;
– Boom extension angle not measured (different sensor values)
– Main boom, load capacity chart not present
– Lattice extension, load capacity chart not present
– RCL override (switch 1) not actuated
– RCL override (switch 1) actuated
– RCL override (switch 2) not actuated
– RCL override (switch 2) actuated
à
Lattice extension operating manual .
à
Lattice extension operating manual .
